| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003504_23708cztM0_level2.evt | modeM0/AS1A07_054T01_9000003504_23708cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,477,440 | 134,426,880 |
| Size | 447.7 MB | 128.2 MB |
| Events in quadrant A | 3,025,070 | 915,721 |
| Events in quadrant B | 3,298,721 | 940,309 |
| Events in quadrant C | 3,283,642 | 917,794 |
| Events in quadrant D | 4,190,931 | 866,338 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13171 | 2 |
| B | 0 | 13957 | 2 |
| C | 0 | 13850 | 2 |
| D | 0 | 16734 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 18 | 0.291215% |
| B | 6181 | 57 | 0.922181% |
| C | 6181 | 87 | 1.407539% |
| D | 6181 | 224 | 3.624009% |

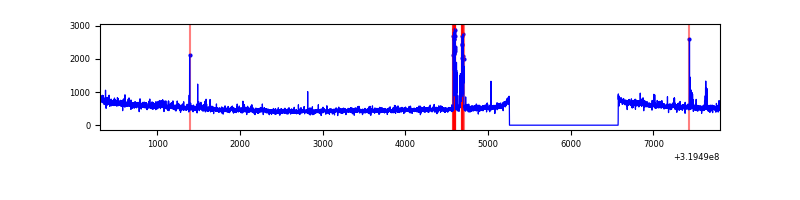

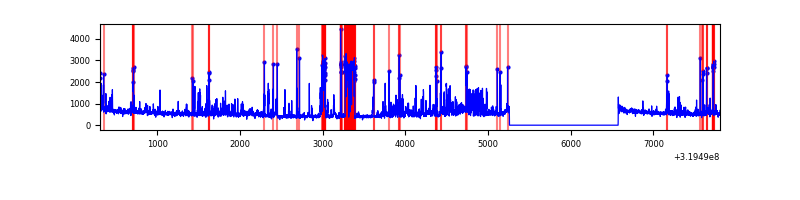

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7496 | 6182 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7496 | 6182 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7496 | 6182 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7496 | 6182 | 199 | 199 | 2.65% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10004 | 59.88 | 785 | 771 | 154.2 |
| A | 0 | 226 | 6832 | 39.31 | 785 | 771 | 154.2 |
| A | 3 | 137 | 6364 | 36.28 | 785 | 771 | 154.2 |
| B | 14 | 207 | 102592 | 705.36 | 792 | 772 | 144.4 |
| B | 0 | 229 | 49360 | 336.6 | 792 | 772 | 144.4 |
| B | 0 | 189 | 39097 | 265.5 | 792 | 772 | 144.4 |
| C | 14 | 238 | 125849 | 699.92 | 778 | 784 | 178.7 |
| C | 8 | 30 | 70747 | 391.54 | 778 | 784 | 178.7 |
| C | 8 | 13 | 42722 | 234.7 | 778 | 784 | 178.7 |
| D | 1 | 52 | 1023739 | 5556.94 | 767 | 747 | 184.1 |
| D | 9 | 85 | 142127 | 767.98 | 767 | 747 | 184.1 |
| D | 13 | 174 | 72186 | 388.06 | 767 | 747 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

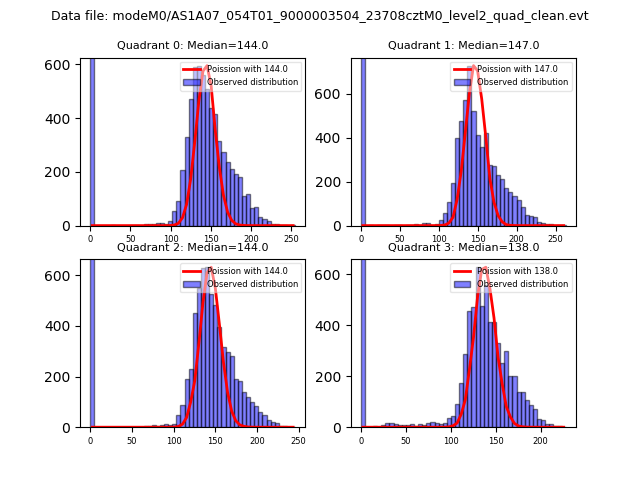

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

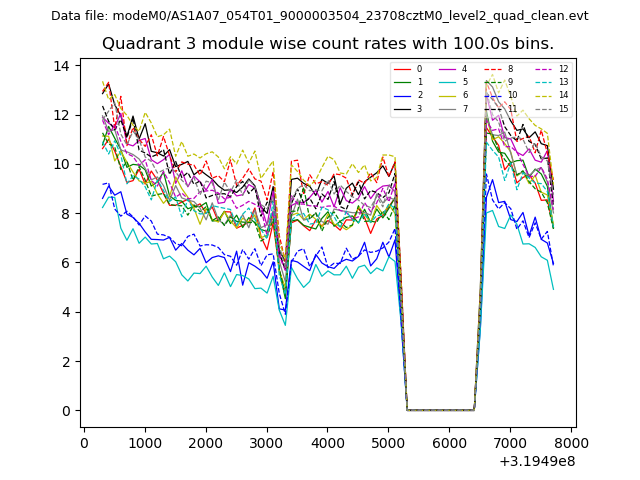

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

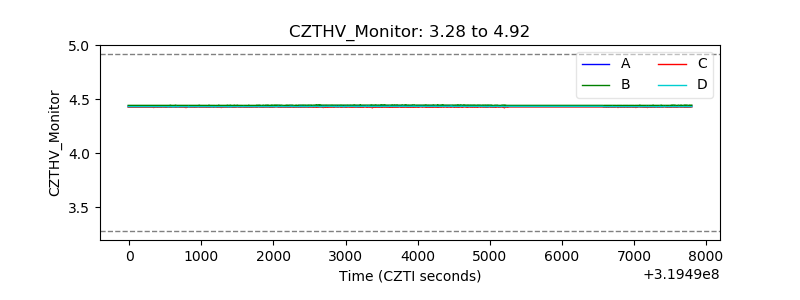

| CZT HV Monitor |  |
| D_VDD |  |

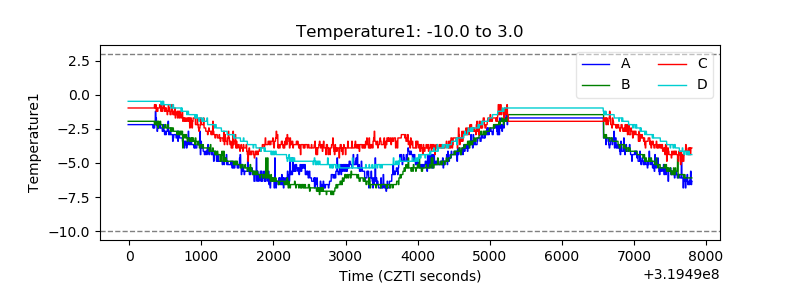

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

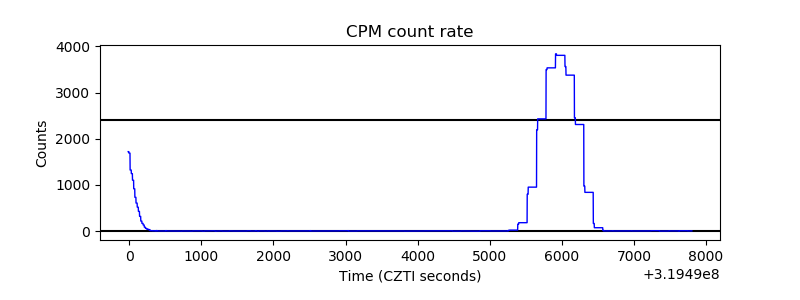

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

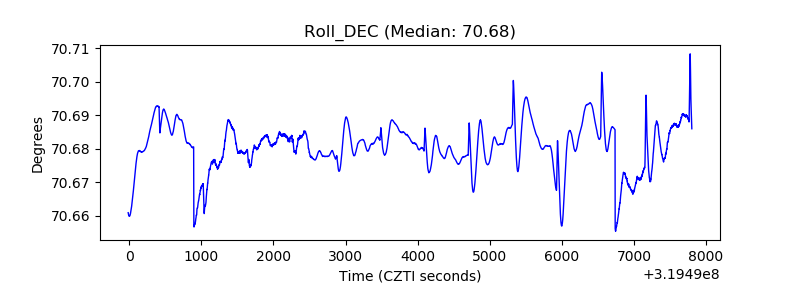

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
