| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T06_9000003508_23726cztM0_level2.evt | modeM0/AS1A07_027T06_9000003508_23726cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,675,840 | 69,370,560 |
| Size | 487.0 MB | 66.2 MB |
| Events in quadrant A | 3,339,266 | 413,306 |
| Events in quadrant B | 3,907,930 | 419,984 |
| Events in quadrant C | 3,449,119 | 407,281 |
| Events in quadrant D | 4,310,397 | 388,160 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13939 | 2 |
| B | 0 | 15555 | 7 |
| C | 0 | 14116 | 2 |
| D | 0 | 16957 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6773 | 26 | 0.383877% |
| B | 6772 | 108 | 1.594802% |
| C | 6772 | 99 | 1.461902% |
| D | 6772 | 156 | 2.303603% |

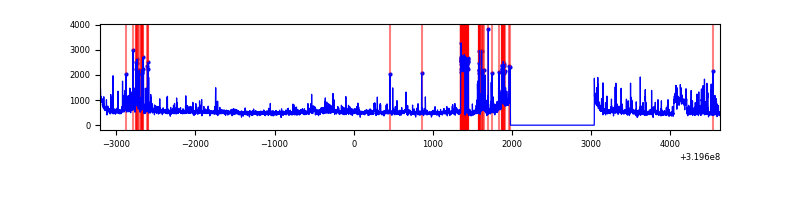

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7833 | 6774 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7831 | 6772 | 36 | 36 | 0.46% | 0.53% |  |
| C | 7832 | 6773 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7832 | 6773 | 123 | 123 | 1.57% | 1.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12080 | 64.44 | 866 | 850 | 174.3 |
| A | 3 | 137 | 7467 | 37.97 | 866 | 850 | 174.3 |
| A | 0 | 226 | 7429 | 37.75 | 866 | 850 | 174.3 |
| B | 0 | 229 | 317243 | 1951.79 | 866 | 847 | 162.1 |
| B | 15 | 33 | 70956 | 432.49 | 866 | 847 | 162.1 |
| B | 10 | 249 | 49440 | 299.76 | 866 | 847 | 162.1 |
| C | 14 | 238 | 133638 | 676.4 | 838 | 843 | 196.3 |
| C | 7 | 247 | 35077 | 174.37 | 838 | 843 | 196.3 |
| C | 0 | 207 | 10876 | 51.1 | 838 | 843 | 196.3 |
| D | 1 | 52 | 391951 | 1925.74 | 832 | 809 | 203.1 |
| D | 7 | 238 | 276518 | 1357.42 | 832 | 809 | 203.1 |
| D | 12 | 233 | 270730 | 1328.92 | 832 | 809 | 203.1 |

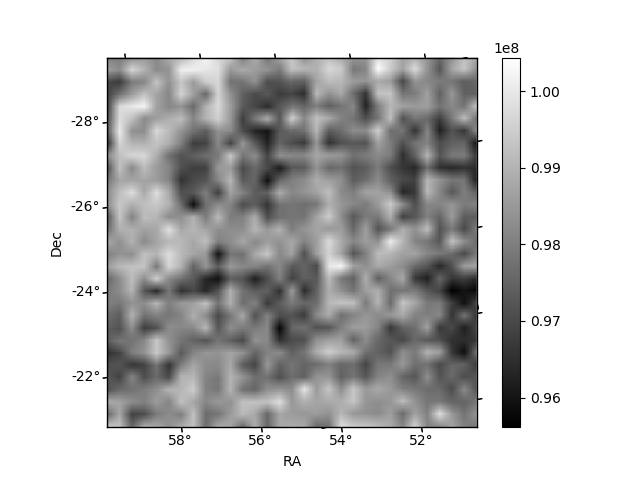

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

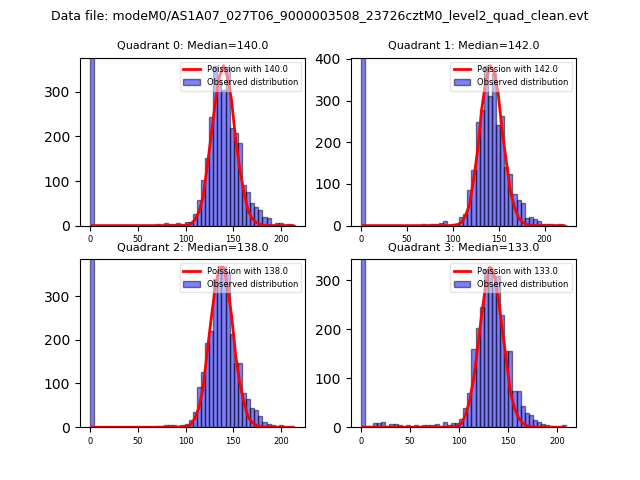

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

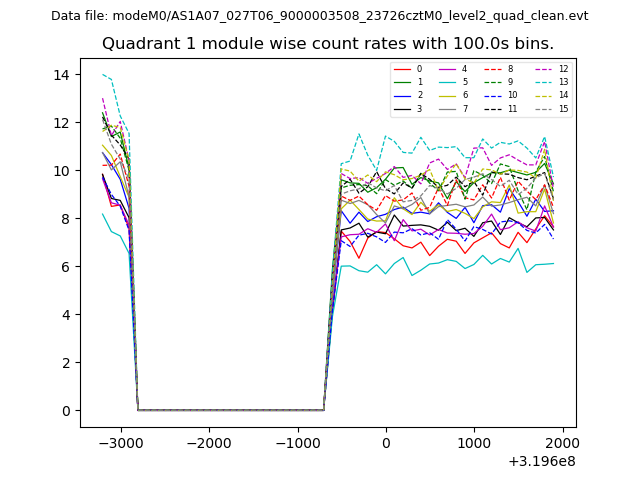

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

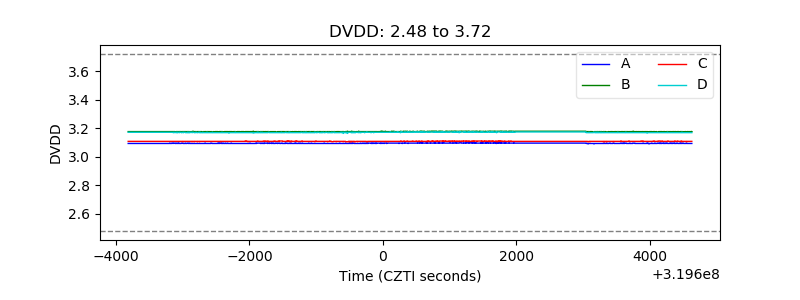

| D_VDD |  |

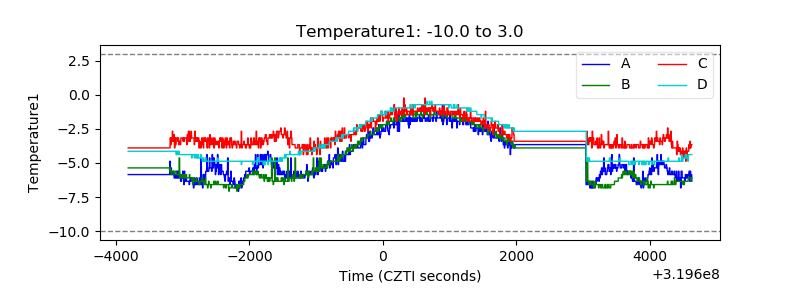

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

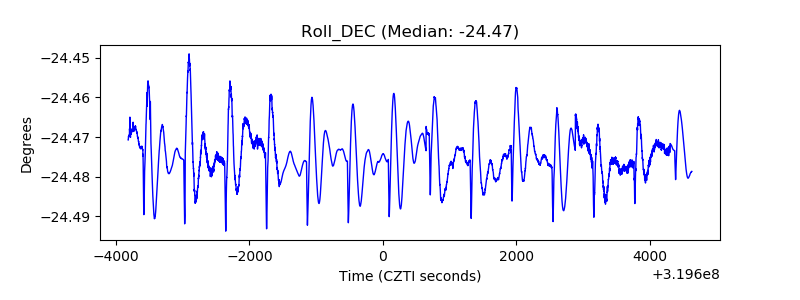

| _Roll_DEC |  |
| _Roll_RA |  |

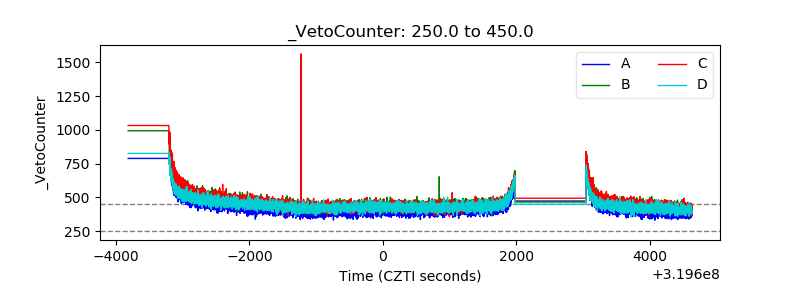

| Veto Counter |  |
