| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T08_9000003514_23736cztM0_level2.evt | modeM0/AS1A07_027T08_9000003514_23736cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,541,760 | 98,856,000 |
| Size | 467.8 MB | 94.3 MB |
| Events in quadrant A | 3,036,003 | 661,743 |
| Events in quadrant B | 3,444,419 | 672,059 |
| Events in quadrant C | 3,043,392 | 631,206 |
| Events in quadrant D | 4,910,322 | 594,616 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13118 | 2 |
| B | 0 | 14233 | 2 |
| C | 0 | 13058 | 2 |
| D | 0 | 18981 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6222 | 39 | 0.626808% |
| B | 6222 | 51 | 0.819672% |
| C | 6222 | 55 | 0.883960% |
| D | 6222 | 178 | 2.860816% |

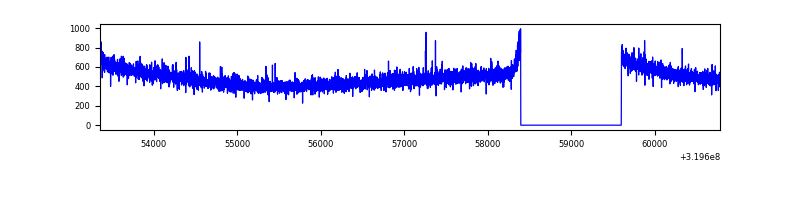

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

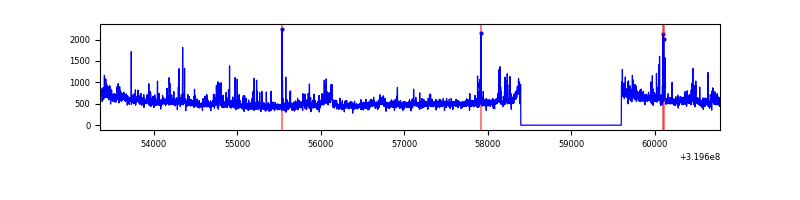

| A | 7427 | 6222 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7427 | 6222 | 4 | 4 | 0.05% | 0.06% |  |

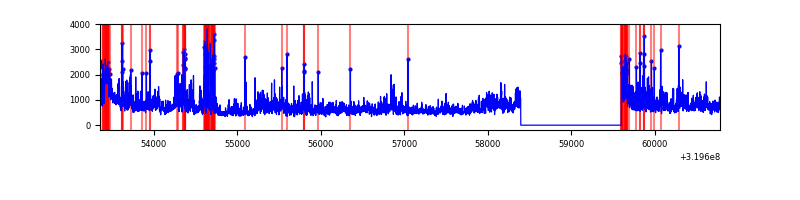

| C | 7427 | 6222 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7427 | 6222 | 124 | 124 | 1.67% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11199 | 65.65 | 787 | 771 | 158.9 |
| A | 0 | 226 | 6816 | 38.05 | 787 | 771 | 158.9 |
| A | 3 | 137 | 6391 | 35.38 | 787 | 771 | 158.9 |
| B | 3 | 64 | 133729 | 898.8 | 787 | 771 | 147.9 |
| B | 0 | 229 | 86939 | 582.5 | 787 | 771 | 147.9 |
| B | 0 | 189 | 81437 | 545.3 | 787 | 771 | 147.9 |
| C | 14 | 238 | 119408 | 690.61 | 738 | 742 | 171.8 |
| C | 7 | 247 | 29884 | 169.6 | 738 | 742 | 171.8 |
| C | 0 | 10 | 10088 | 54.39 | 738 | 742 | 171.8 |
| D | 8 | 195 | 1252335 | 6926.08 | 739 | 717 | 180.7 |
| D | 1 | 52 | 409157 | 2260.18 | 739 | 717 | 180.7 |
| D | 7 | 238 | 178713 | 984.97 | 739 | 717 | 180.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

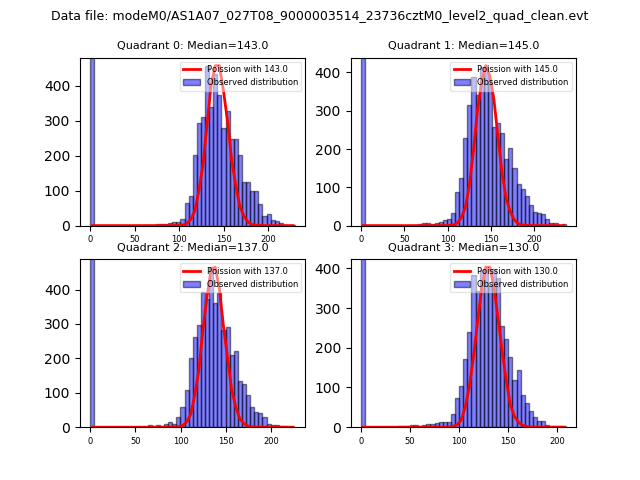

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

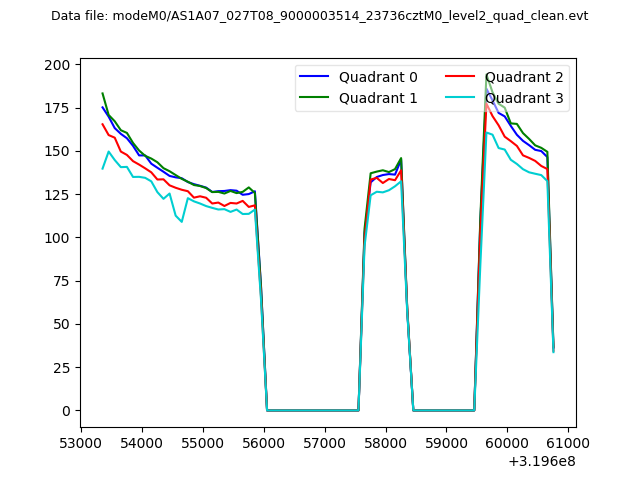

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

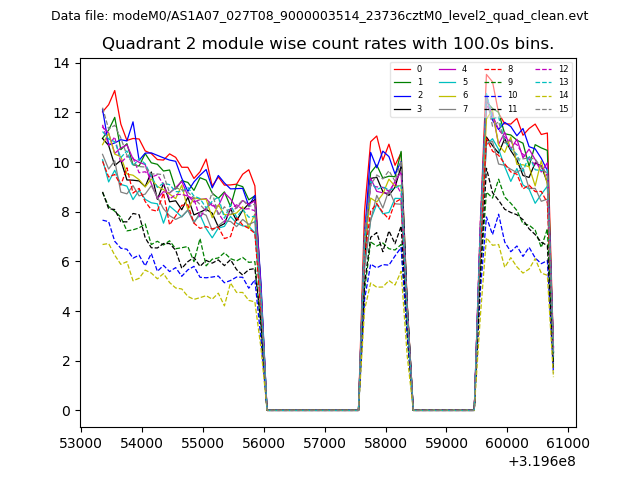

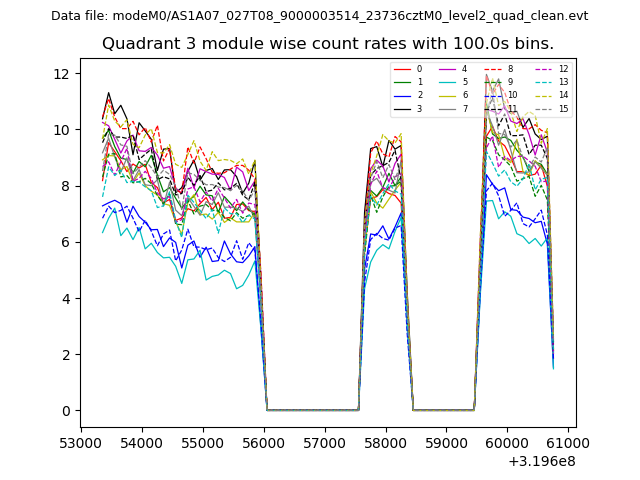

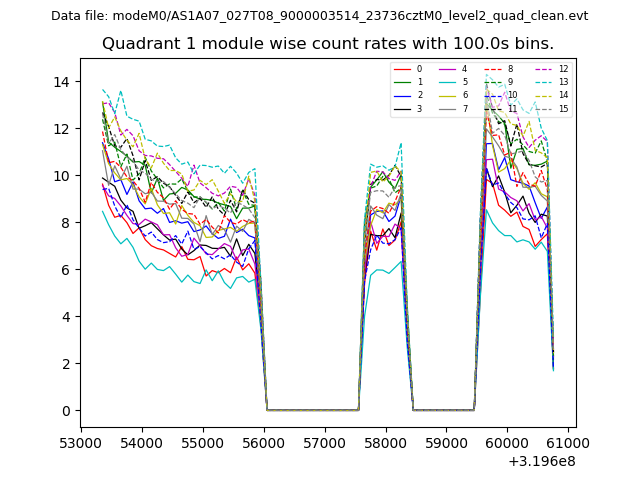

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

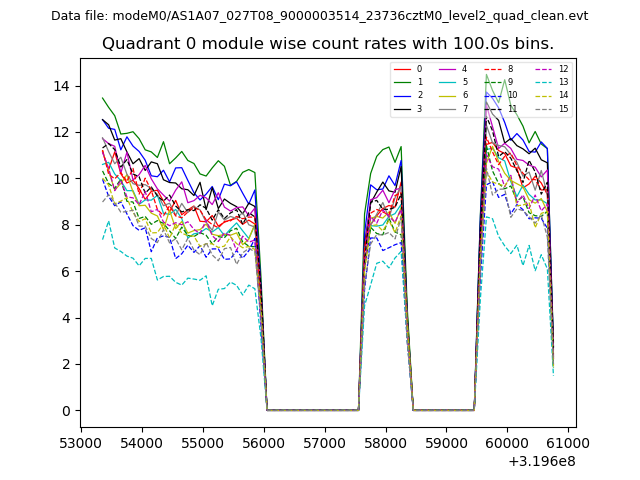

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

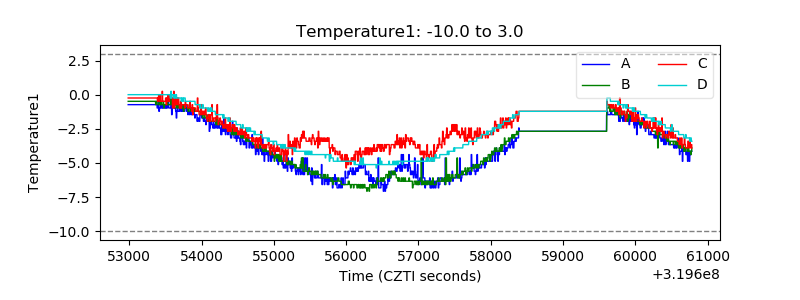

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

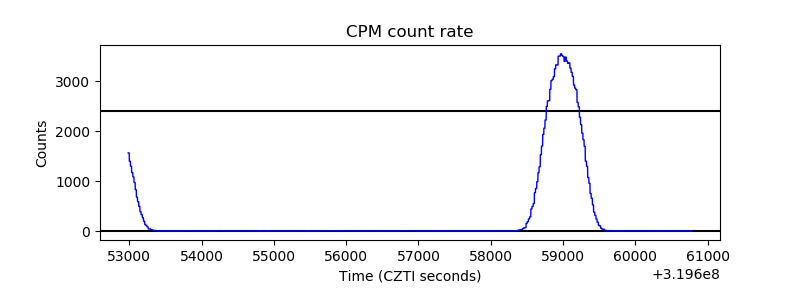

| _CPM_Rate |  |

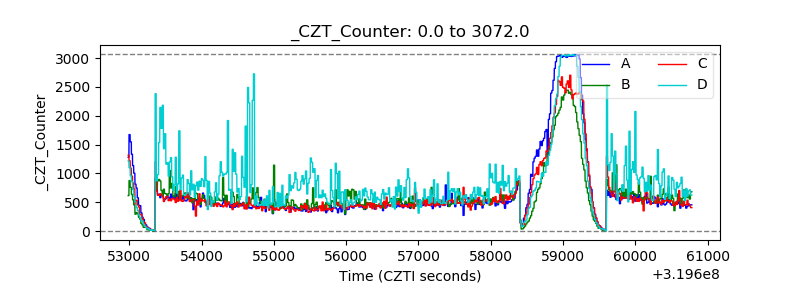

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

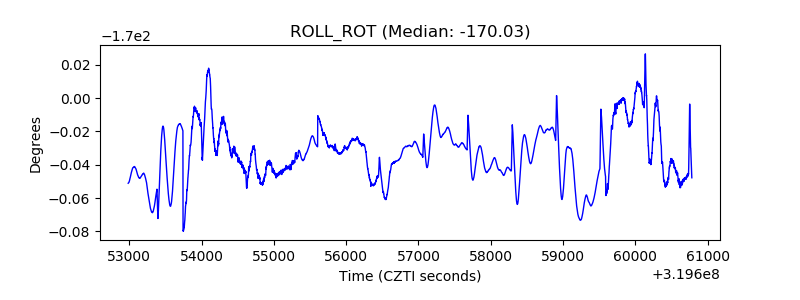

| _ROLL_ROT |  |

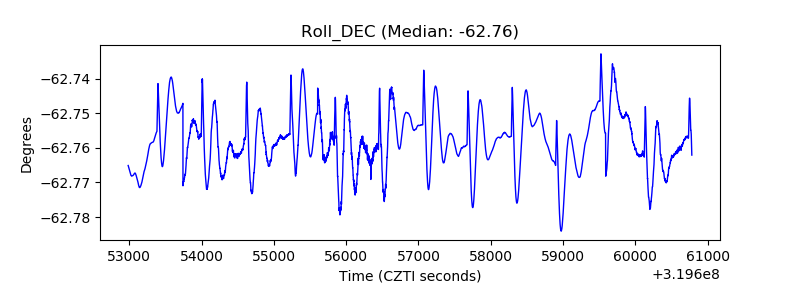

| _Roll_DEC |  |

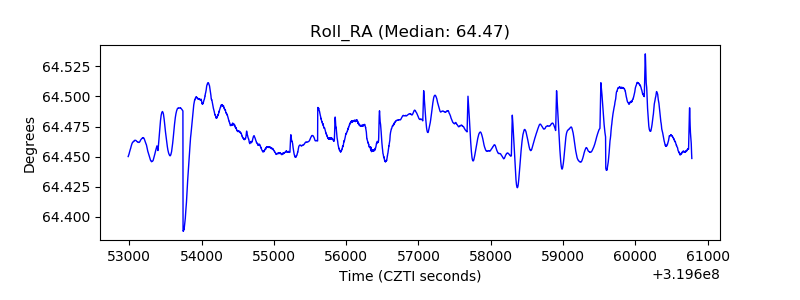

| _Roll_RA |  |

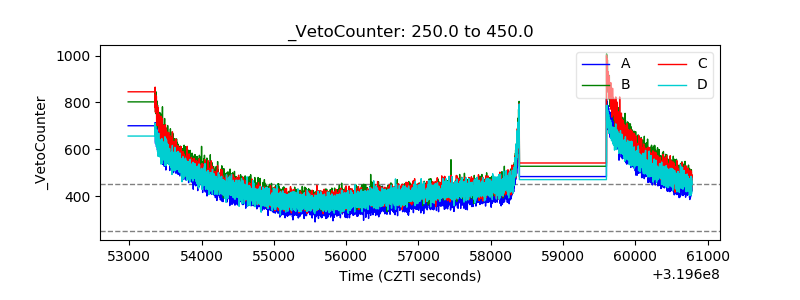

| Veto Counter |  |
