| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T08_9000003514_23737cztM0_level2.evt | modeM0/AS1A07_027T08_9000003514_23737cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,421,120 | 104,855,040 |
| Size | 471.5 MB | 100.0 MB |
| Events in quadrant A | 3,129,150 | 707,271 |
| Events in quadrant B | 3,414,213 | 725,219 |
| Events in quadrant C | 3,447,487 | 662,746 |
| Events in quadrant D | 4,555,669 | 641,151 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13315 | 2 |
| B | 0 | 14133 | 2 |
| C | 0 | 14134 | 2 |
| D | 0 | 17865 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6293 | 33 | 0.524392% |
| B | 6293 | 55 | 0.873987% |
| C | 6293 | 187 | 2.971556% |
| D | 6293 | 131 | 2.081678% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7598 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7598 | 6294 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7598 | 6294 | 123 | 123 | 1.62% | 1.95% |  |
| D | 7598 | 6293 | 88 | 88 | 1.16% | 1.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11615 | 66.81 | 811 | 796 | 161.9 |
| A | 0 | 226 | 7098 | 38.92 | 811 | 796 | 161.9 |
| A | 3 | 137 | 6524 | 35.37 | 811 | 796 | 161.9 |
| B | 3 | 64 | 95288 | 627.25 | 815 | 798 | 150.6 |
| B | 0 | 189 | 78058 | 512.87 | 815 | 798 | 150.6 |
| B | 7 | 202 | 22776 | 145.9 | 815 | 798 | 150.6 |
| C | 10 | 9 | 323275 | 1845.5 | 757 | 763 | 174.8 |
| C | 14 | 238 | 122798 | 698.32 | 757 | 763 | 174.8 |
| C | 7 | 247 | 41528 | 233.27 | 757 | 763 | 174.8 |
| D | 8 | 195 | 1325569 | 7240.4 | 764 | 744 | 183.0 |
| D | 1 | 52 | 176004 | 957.83 | 764 | 744 | 183.0 |
| D | 12 | 233 | 85663 | 464.1 | 764 | 744 | 183.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

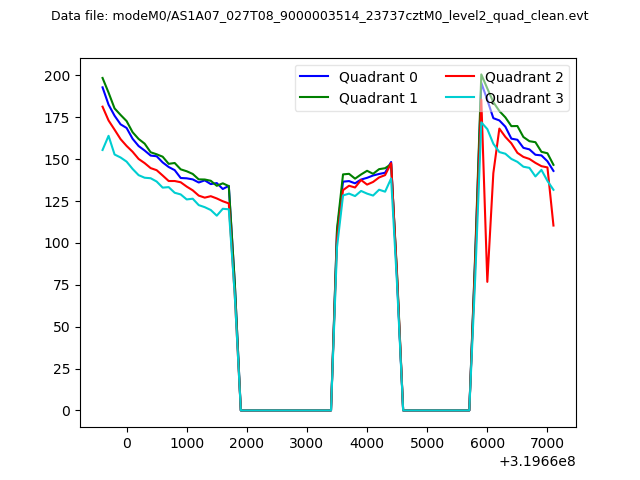

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

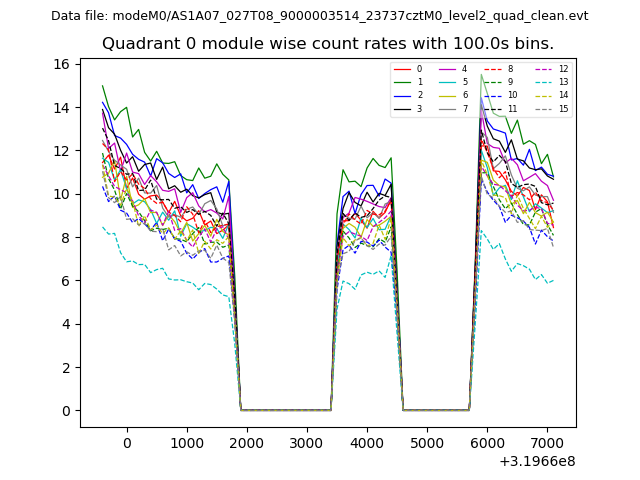

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

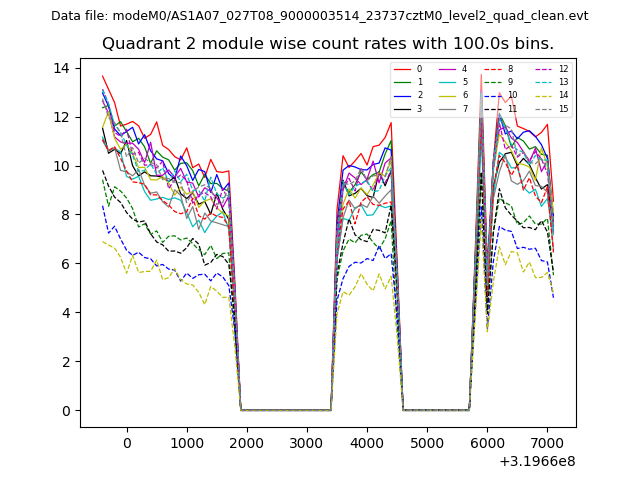

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

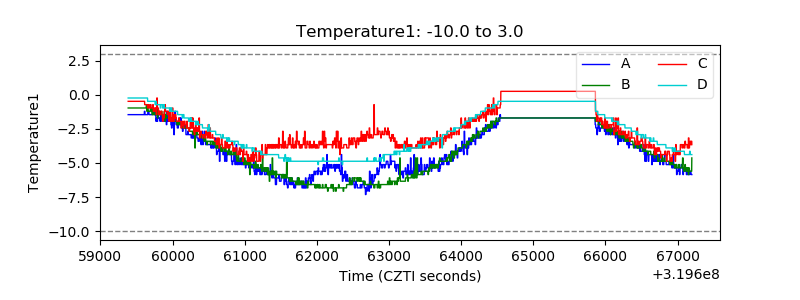

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

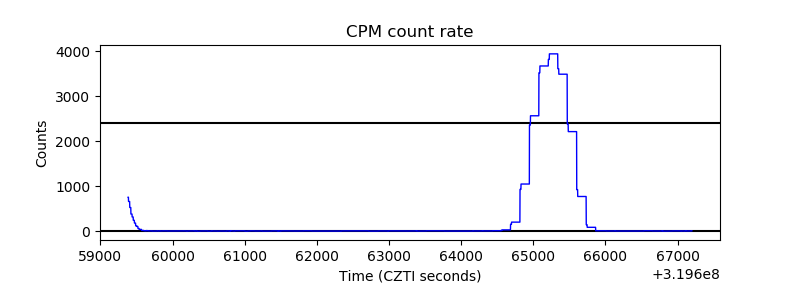

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

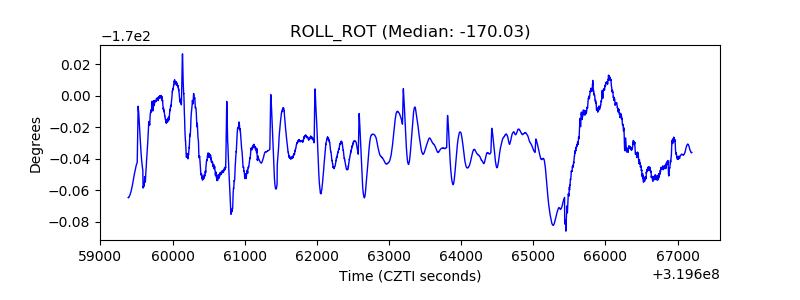

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
