| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T08_9000003514_23739cztM0_level2.evt | modeM0/AS1A07_027T08_9000003514_23739cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,289,920 | 91,854,720 |
| Size | 409.4 MB | 87.6 MB |
| Events in quadrant A | 2,813,897 | 612,679 |
| Events in quadrant B | 3,178,103 | 628,736 |
| Events in quadrant C | 3,142,795 | 580,364 |
| Events in quadrant D | 3,486,051 | 568,373 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11810 | 2 |
| B | 0 | 12899 | 2 |
| C | 0 | 12713 | 2 |
| D | 0 | 14135 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5589 | 27 | 0.483092% |
| B | 5590 | 68 | 1.216458% |
| C | 5590 | 194 | 3.470483% |
| D | 5590 | 37 | 0.661896% |

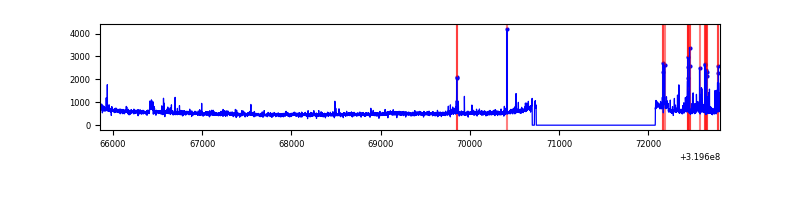

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6949 | 5590 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6950 | 5591 | 19 | 19 | 0.27% | 0.34% |  |
| C | 6950 | 5592 | 124 | 124 | 1.78% | 2.22% |  |
| D | 6950 | 5592 | 14 | 14 | 0.20% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10098 | 64.61 | 729 | 716 | 145.2 |
| A | 0 | 226 | 6333 | 38.68 | 729 | 716 | 145.2 |
| A | 3 | 137 | 5996 | 36.36 | 729 | 716 | 145.2 |
| B | 3 | 64 | 170229 | 1248.34 | 735 | 717 | 135.8 |
| B | 0 | 189 | 57873 | 420.92 | 735 | 717 | 135.8 |
| B | 0 | 229 | 28098 | 201.64 | 735 | 717 | 135.8 |
| C | 10 | 9 | 325410 | 2054.84 | 688 | 694 | 158.0 |
| C | 14 | 238 | 112370 | 706.7 | 688 | 694 | 158.0 |
| C | 7 | 247 | 14096 | 84.81 | 688 | 694 | 158.0 |
| D | 8 | 195 | 729633 | 4370.96 | 698 | 679 | 166.8 |
| D | 1 | 52 | 57434 | 340.32 | 698 | 679 | 166.8 |
| D | 2 | 234 | 23992 | 139.79 | 698 | 679 | 166.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

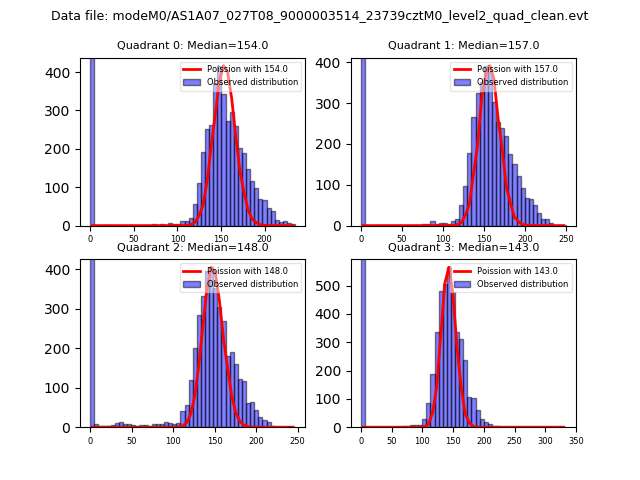

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

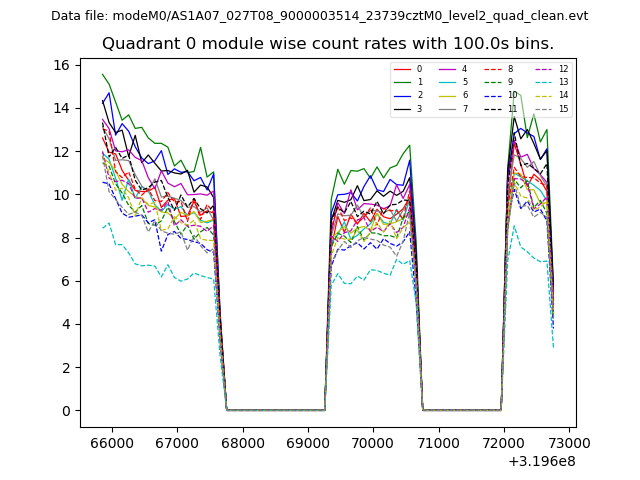

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

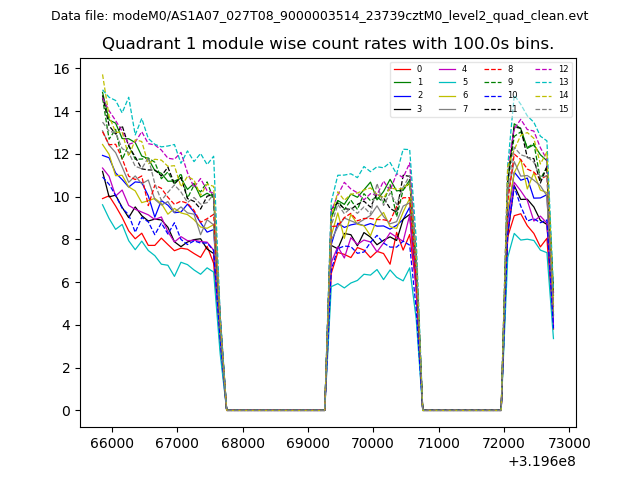

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

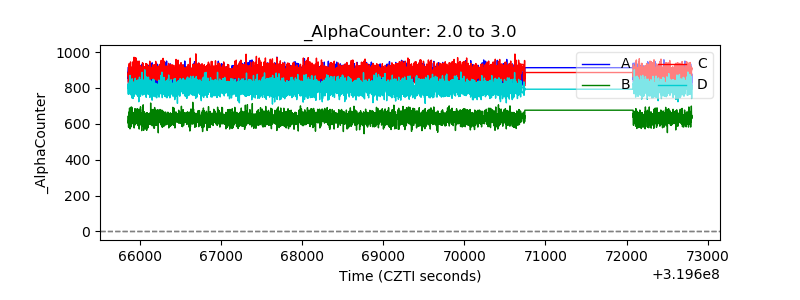

| Alpha Counter |  |

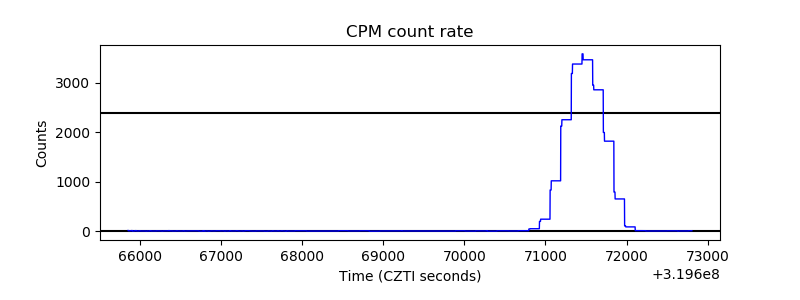

| _CPM_Rate |  |

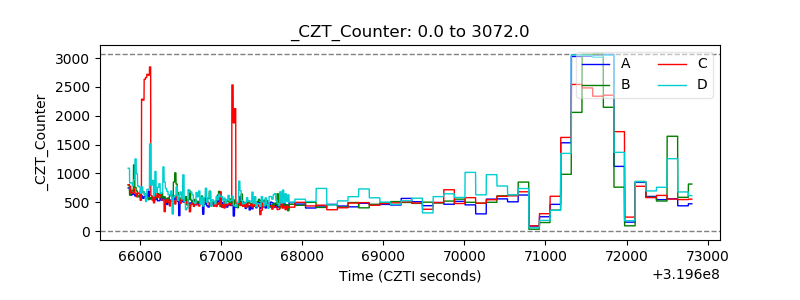

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

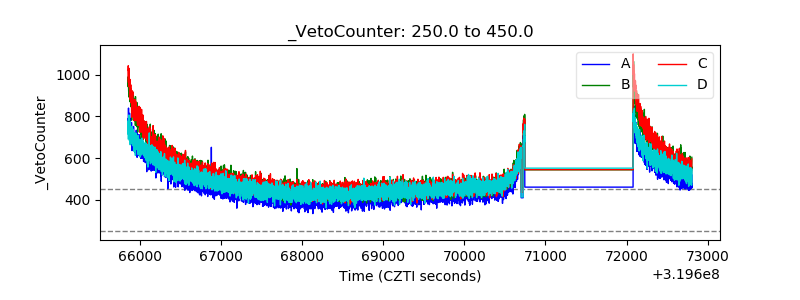

| Veto Counter |  |
