| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T09_9000003512_23732cztM0_level2.evt | modeM0/AS1A07_027T09_9000003512_23732cztM0_level2_quad_clean.evt |
| Size (bytes) | 709,076,160 | 103,691,520 |
| Size | 676.2 MB | 98.9 MB |
| Events in quadrant A | 3,770,650 | 662,939 |
| Events in quadrant B | 4,678,480 | 662,500 |
| Events in quadrant C | 3,860,841 | 656,348 |
| Events in quadrant D | 8,632,819 | 611,150 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16164 | 2 |
| B | 0 | 18871 | 2 |
| C | 0 | 16320 | 3 |
| D | 0 | 31301 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7869 | 111 | 1.410599% |
| B | 7869 | 206 | 2.617868% |
| C | 7868 | 140 | 1.779359% |
| D | 7868 | 405 | 5.147433% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9264 | 7869 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9264 | 7869 | 67 | 67 | 0.72% | 0.85% |  |
| C | 9263 | 7868 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9263 | 7868 | 330 | 330 | 3.56% | 4.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13811 | 65.1 | 974 | 950 | 197.6 |
| A | 3 | 137 | 8780 | 39.63 | 974 | 950 | 197.6 |
| A | 0 | 226 | 8469 | 38.06 | 974 | 950 | 197.6 |
| B | 0 | 229 | 312980 | 1674.1 | 961 | 935 | 186.4 |
| B | 3 | 64 | 297430 | 1590.67 | 961 | 935 | 186.4 |
| B | 0 | 189 | 228796 | 1222.46 | 961 | 935 | 186.4 |
| C | 14 | 238 | 148644 | 670.79 | 933 | 936 | 220.2 |
| C | 7 | 247 | 65166 | 291.69 | 933 | 936 | 220.2 |
| C | 2 | 16 | 6621 | 25.82 | 933 | 936 | 220.2 |
| D | 8 | 195 | 4157414 | 18305.22 | 931 | 904 | 227.1 |
| D | 1 | 52 | 395309 | 1736.95 | 931 | 904 | 227.1 |
| D | 7 | 238 | 199670 | 875.36 | 931 | 904 | 227.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

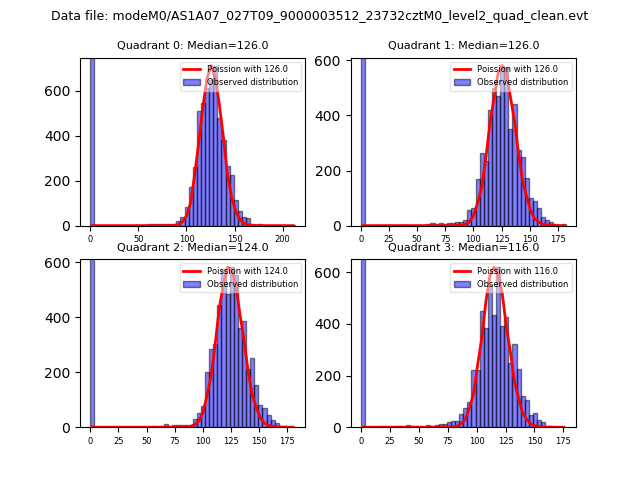

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

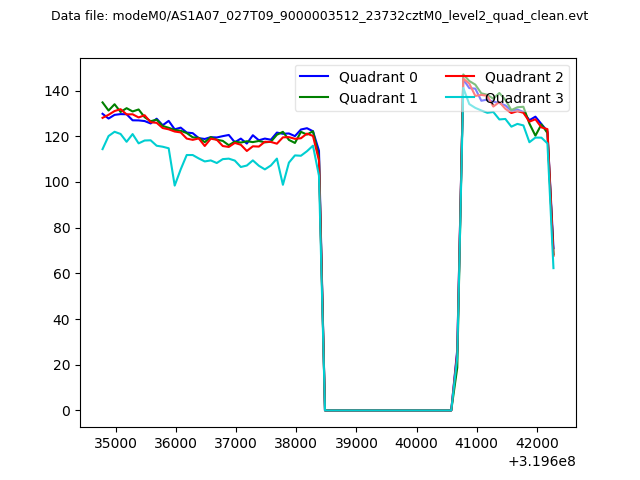

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

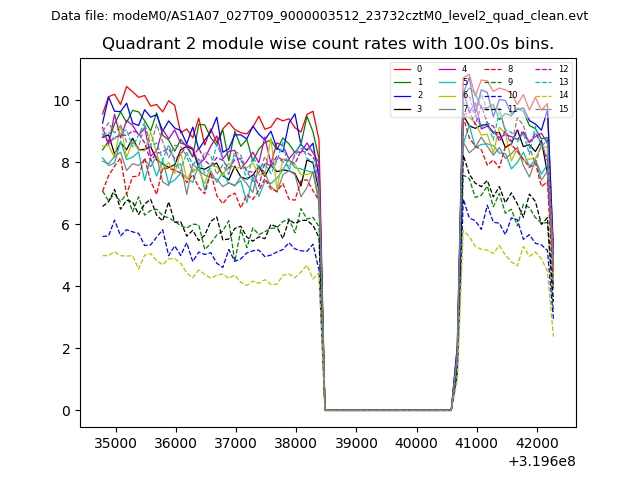

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
