| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T09_9000003512_23733cztM0_level2.evt | modeM0/AS1A07_027T09_9000003512_23733cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,150,080 | 87,033,600 |
| Size | 493.2 MB | 83.0 MB |
| Events in quadrant A | 2,897,933 | 567,530 |
| Events in quadrant B | 3,884,343 | 554,953 |
| Events in quadrant C | 2,930,019 | 553,414 |
| Events in quadrant D | 5,530,458 | 527,996 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12736 | 1 |
| B | 0 | 15507 | 1 |
| C | 0 | 12796 | 1 |
| D | 0 | 21008 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 41 | 0.663001% |
| B | 6184 | 276 | 4.463131% |
| C | 6184 | 72 | 1.164295% |
| D | 6184 | 125 | 2.021345% |

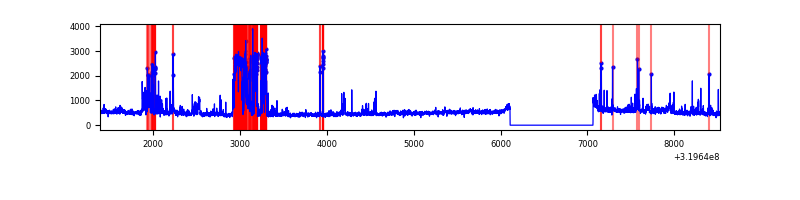

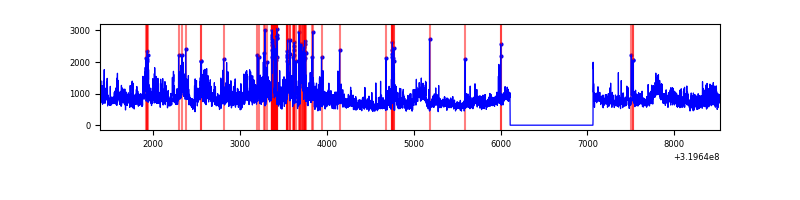

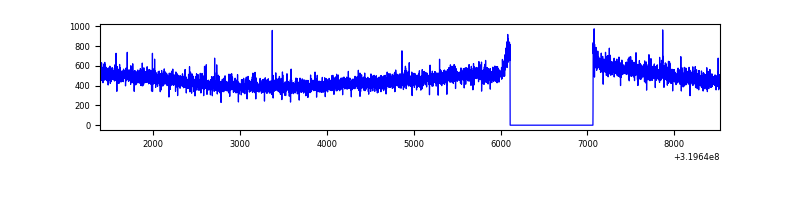

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7139 | 6184 | 227 | 227 | 3.18% | 3.67% |  |
| C | 7139 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7139 | 6184 | 98 | 98 | 1.37% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11027 | 67.5 | 750 | 734 | 152.5 |
| A | 3 | 137 | 6604 | 38.5 | 750 | 734 | 152.5 |
| A | 0 | 226 | 6455 | 37.52 | 750 | 734 | 152.5 |
| B | 3 | 64 | 701529 | 4962.02 | 735 | 717 | 141.2 |
| B | 0 | 229 | 221213 | 1561.2 | 735 | 717 | 141.2 |
| B | 0 | 189 | 57472 | 401.85 | 735 | 717 | 141.2 |
| C | 14 | 238 | 115042 | 677.42 | 713 | 716 | 168.8 |
| C | 7 | 247 | 34554 | 200.5 | 713 | 716 | 168.8 |
| C | 13 | 61 | 4957 | 25.13 | 713 | 716 | 168.8 |
| D | 8 | 195 | 2122108 | 12133.62 | 720 | 699 | 174.8 |
| D | 1 | 52 | 275246 | 1570.3 | 720 | 699 | 174.8 |
| D | 13 | 104 | 186997 | 1065.55 | 720 | 699 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

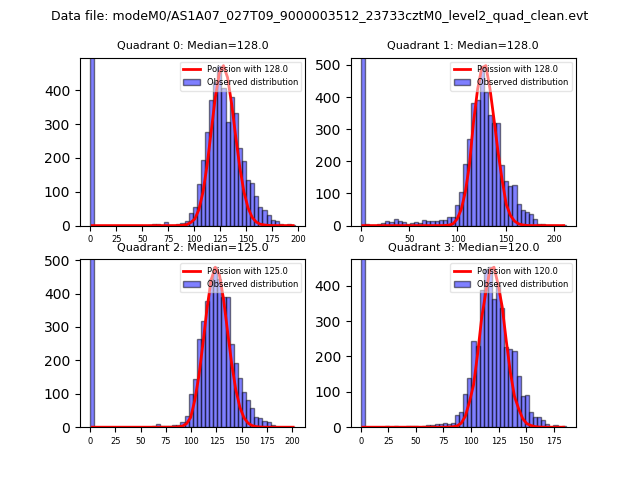

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

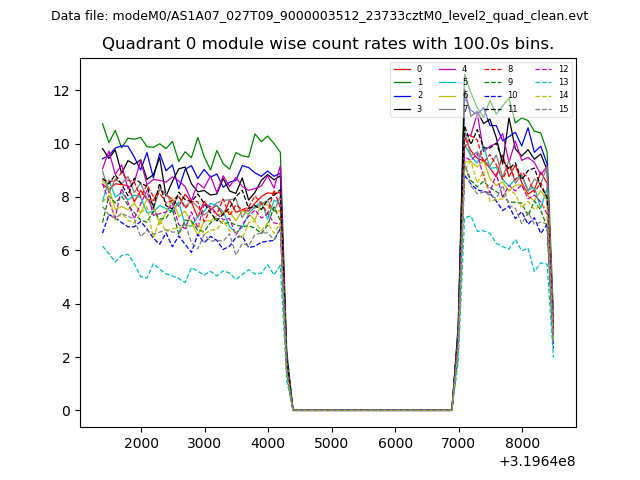

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

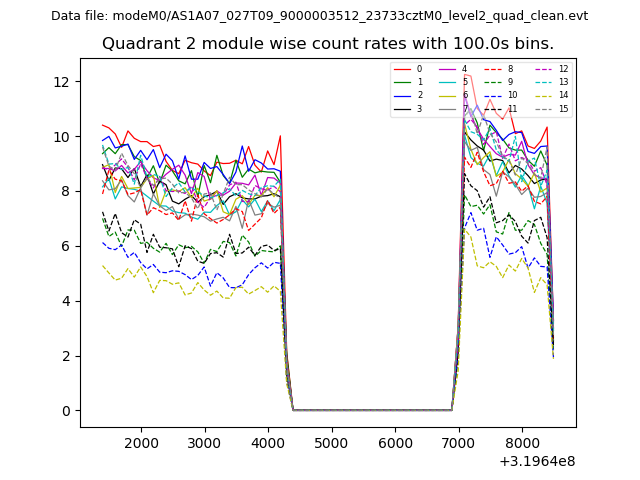

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

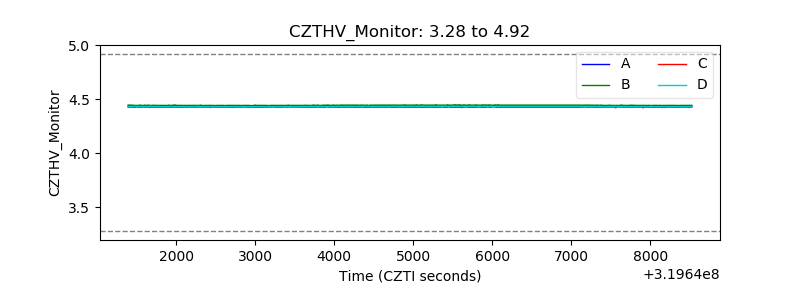

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

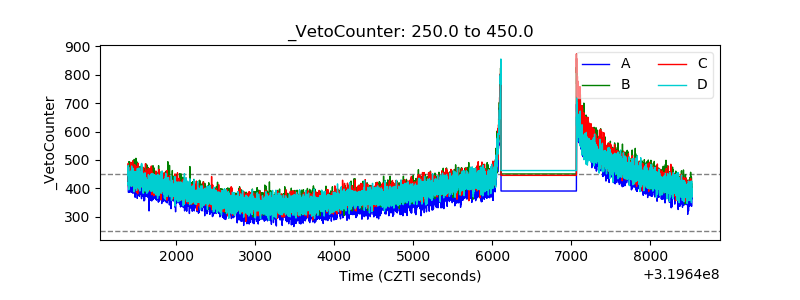

| Veto Counter |  |
