| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003516_23740cztM0_level2.evt | modeM0/AS1A08_009T01_9000003516_23740cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,753,280 | 98,513,280 |
| Size | 448.9 MB | 93.9 MB |
| Events in quadrant A | 2,978,938 | 639,512 |
| Events in quadrant B | 3,216,033 | 665,937 |
| Events in quadrant C | 3,325,798 | 632,368 |
| Events in quadrant D | 4,306,277 | 603,980 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13084 | 2 |
| B | 0 | 13550 | 2 |
| C | 0 | 13638 | 2 |
| D | 0 | 17177 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6333 | 13 | 0.205274% |
| B | 6333 | 45 | 0.710564% |
| C | 6333 | 78 | 1.231644% |
| D | 6332 | 62 | 0.979154% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

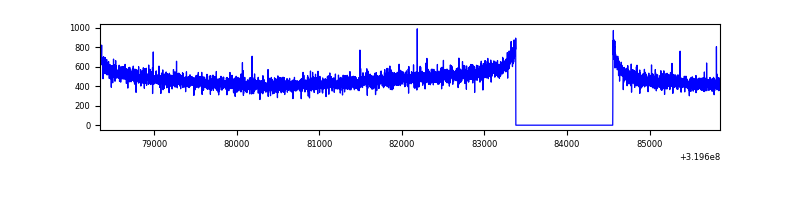

| A | 7508 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7508 | 6334 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7508 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7507 | 6333 | 30 | 30 | 0.40% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10990 | 66.46 | 772 | 757 | 154.0 |
| A | 3 | 137 | 6538 | 37.54 | 772 | 757 | 154.0 |
| A | 0 | 226 | 6482 | 37.18 | 772 | 757 | 154.0 |
| B | 0 | 189 | 52181 | 353.81 | 781 | 761 | 145.3 |
| B | 0 | 229 | 36168 | 243.63 | 781 | 761 | 145.3 |
| B | 0 | 219 | 33605 | 225.99 | 781 | 761 | 145.3 |
| C | 10 | 9 | 242286 | 1381.85 | 752 | 756 | 174.8 |
| C | 14 | 238 | 120798 | 686.79 | 752 | 756 | 174.8 |
| C | 10 | 91 | 16941 | 92.6 | 752 | 756 | 174.8 |
| D | 8 | 195 | 1406123 | 7775.55 | 745 | 722 | 180.7 |
| D | 1 | 52 | 48980 | 266.99 | 745 | 722 | 180.7 |
| D | 2 | 234 | 25892 | 139.26 | 745 | 722 | 180.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

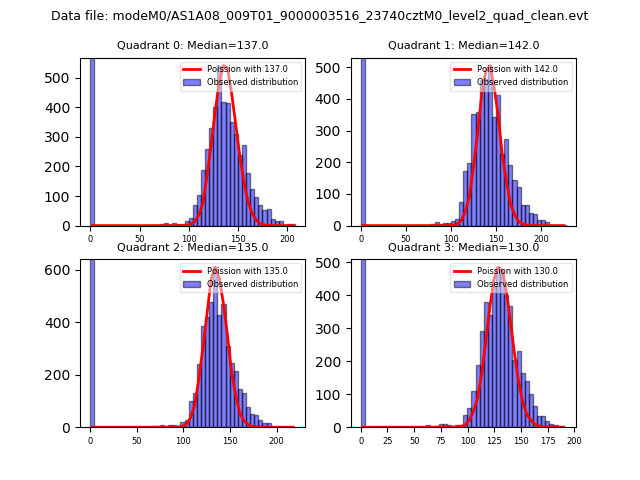

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

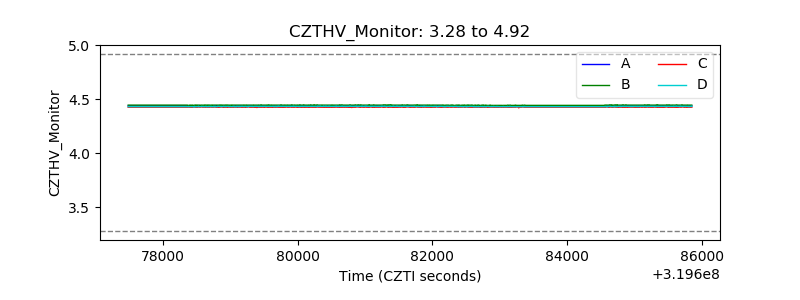

| CZT HV Monitor |  |
| D_VDD |  |

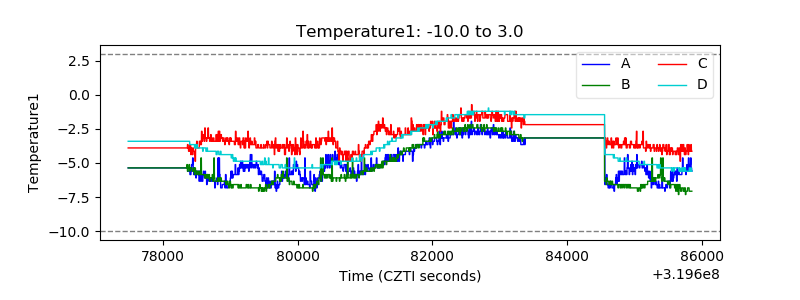

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

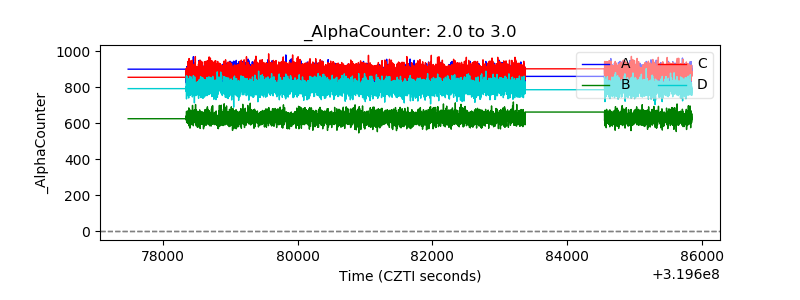

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

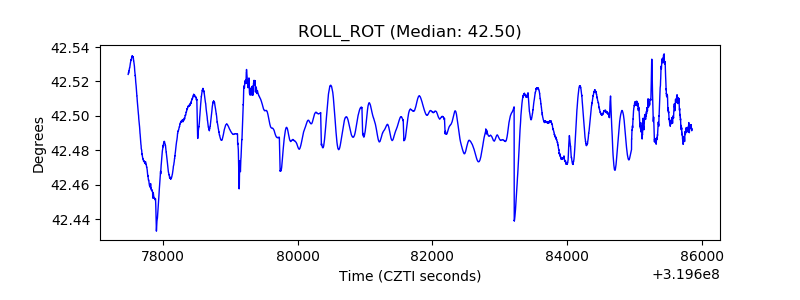

| _ROLL_ROT |  |
| _Roll_DEC |  |

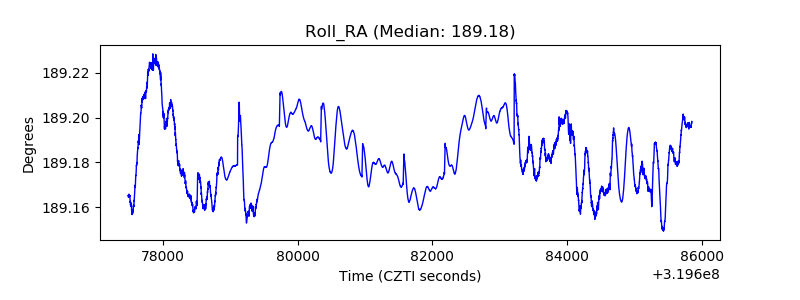

| _Roll_RA |  |
| Veto Counter |  |
