| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003516_23748cztM0_level2.evt | modeM0/AS1A08_009T01_9000003516_23748cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,720,000 | 81,207,360 |
| Size | 558.6 MB | 77.4 MB |
| Events in quadrant A | 3,207,969 | 525,027 |
| Events in quadrant B | 3,853,687 | 527,224 |
| Events in quadrant C | 3,316,886 | 512,394 |
| Events in quadrant D | 6,911,362 | 432,328 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13970 | 2 |
| B | 0 | 15674 | 2 |
| C | 0 | 14130 | 2 |
| D | 0 | 25183 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6623 | 64 | 0.966329% |
| B | 6623 | 173 | 2.612109% |
| C | 6622 | 116 | 1.751737% |
| D | 6622 | 1102 | 16.641498% |

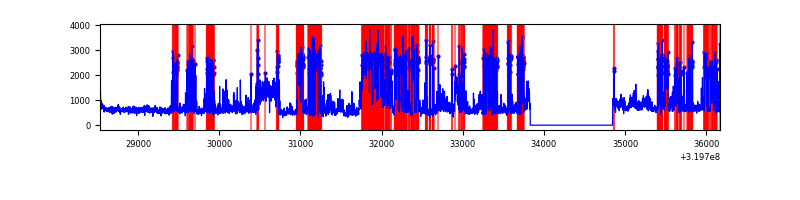

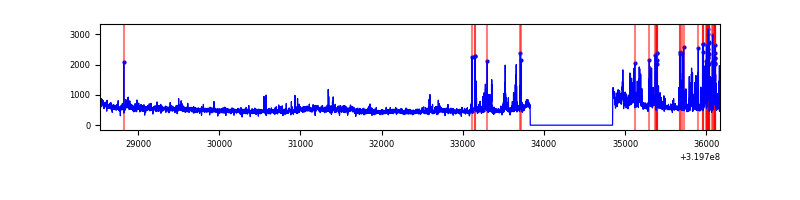

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7638 | 6623 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7638 | 6623 | 47 | 47 | 0.62% | 0.71% |  |
| C | 7637 | 6622 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7637 | 6622 | 1012 | 1012 | 13.25% | 15.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11136 | 61.48 | 831 | 813 | 167.9 |
| A | 3 | 137 | 7306 | 38.67 | 831 | 813 | 167.9 |
| A | 0 | 226 | 7142 | 37.69 | 831 | 813 | 167.9 |
| B | 3 | 64 | 385552 | 2463.13 | 824 | 803 | 156.2 |
| B | 0 | 229 | 120042 | 763.36 | 824 | 803 | 156.2 |
| B | 0 | 189 | 88436 | 561.02 | 824 | 803 | 156.2 |
| C | 14 | 238 | 127606 | 677.35 | 802 | 804 | 187.2 |
| C | 7 | 247 | 64188 | 338.58 | 802 | 804 | 187.2 |
| C | 13 | 61 | 5534 | 25.27 | 802 | 804 | 187.2 |
| D | 1 | 52 | 2854432 | 15571.33 | 748 | 723 | 183.3 |
| D | 8 | 195 | 796644 | 4342.96 | 748 | 723 | 183.3 |
| D | 13 | 174 | 398246 | 2169.09 | 748 | 723 | 183.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

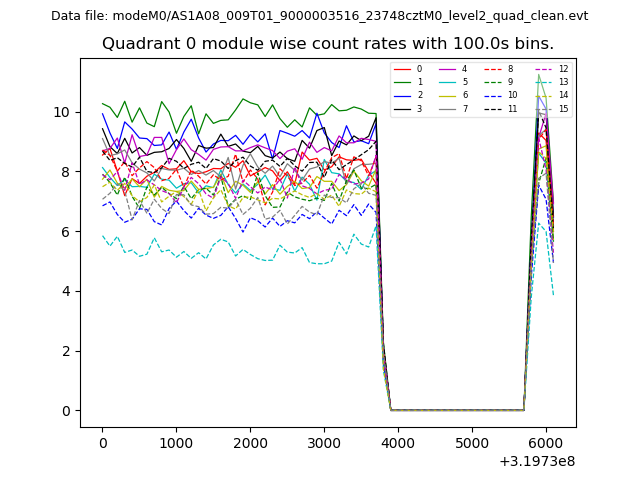

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

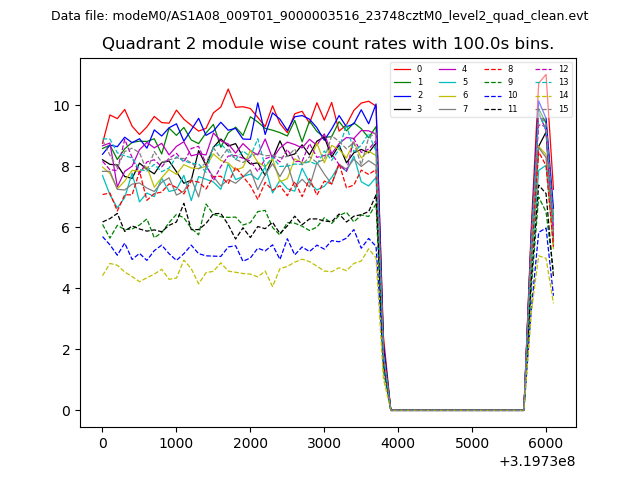

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

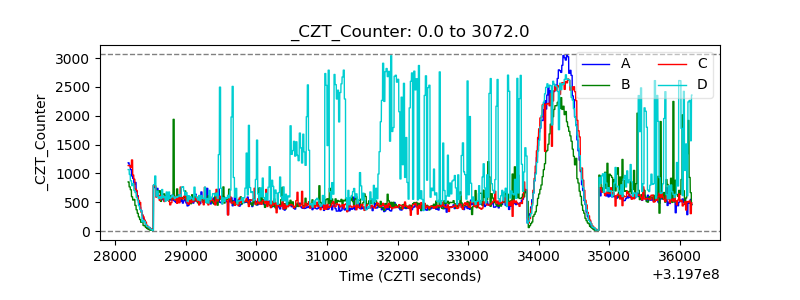

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

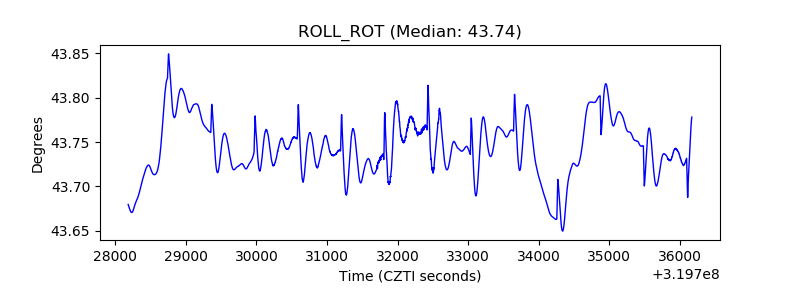

| _ROLL_ROT |  |

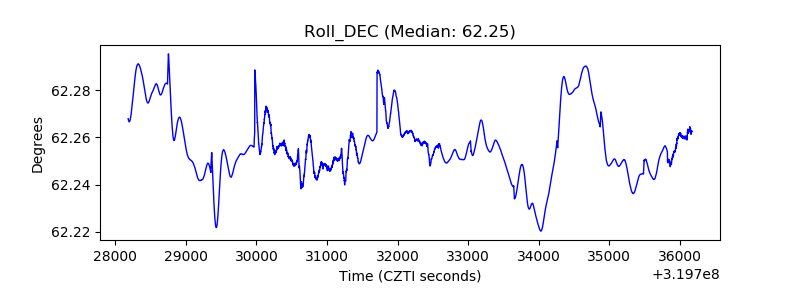

| _Roll_DEC |  |

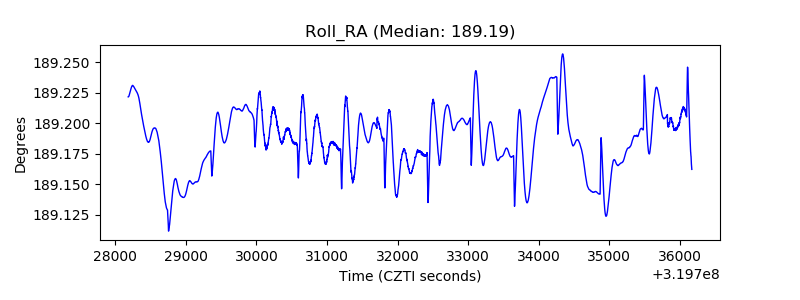

| _Roll_RA |  |
| Veto Counter |  |
