| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_180T01_9000003524_23784cztM0_level2.evt | modeM0/AS1T03_180T01_9000003524_23784cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,619,840 | 99,074,880 |
| Size | 488.9 MB | 94.5 MB |
| Events in quadrant A | 3,324,075 | 656,310 |
| Events in quadrant B | 3,673,260 | 670,120 |
| Events in quadrant C | 3,364,247 | 632,502 |
| Events in quadrant D | 4,732,777 | 598,768 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13754 | 2 |
| B | 0 | 14768 | 2 |
| C | 0 | 13704 | 2 |
| D | 0 | 18056 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6341 | 84 | 1.324712% |
| B | 6341 | 156 | 2.460180% |
| C | 6341 | 89 | 1.403564% |
| D | 6341 | 365 | 5.756190% |

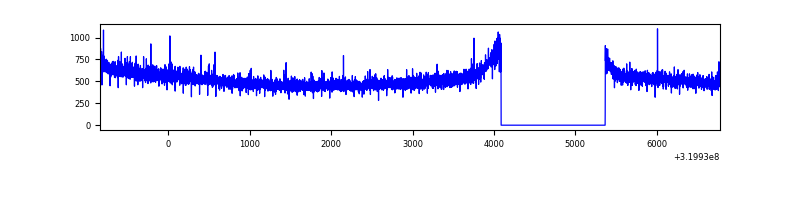

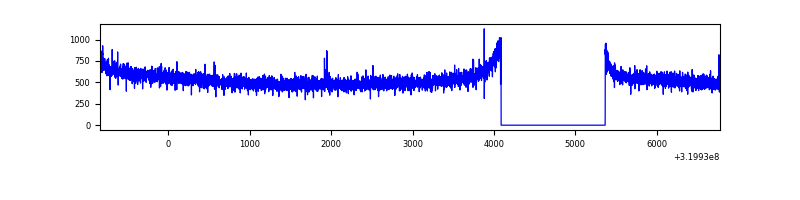

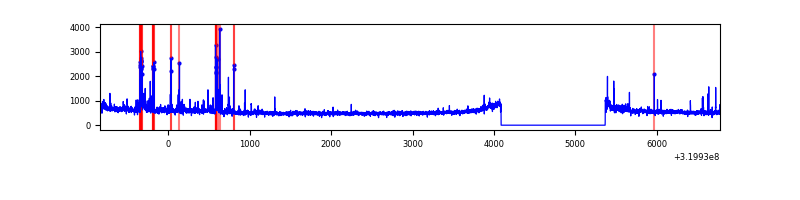

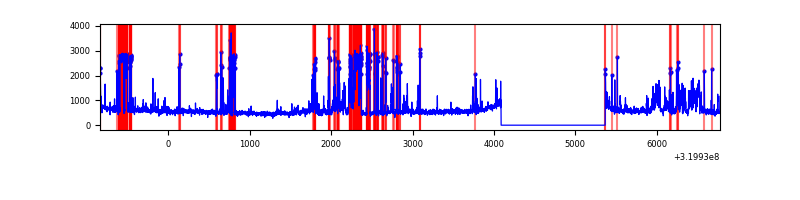

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7621 | 6341 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7621 | 6341 | 34 | 34 | 0.45% | 0.54% |  |
| C | 7621 | 6342 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7621 | 6341 | 335 | 335 | 4.40% | 5.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11629 | 62.69 | 862 | 846 | 172.0 |
| A | 0 | 226 | 7421 | 38.23 | 862 | 846 | 172.0 |
| A | 3 | 137 | 7184 | 36.85 | 862 | 846 | 172.0 |
| B | 3 | 64 | 223587 | 1387.03 | 860 | 841 | 160.6 |
| B | 0 | 189 | 39668 | 241.77 | 860 | 841 | 160.6 |
| B | 12 | 111 | 18360 | 109.09 | 860 | 841 | 160.6 |
| C | 14 | 238 | 133450 | 697.77 | 823 | 832 | 190.1 |
| C | 7 | 247 | 15272 | 75.98 | 823 | 832 | 190.1 |
| C | 13 | 61 | 5737 | 25.81 | 823 | 832 | 190.1 |
| D | 1 | 52 | 1037581 | 5348.0 | 807 | 784 | 193.9 |
| D | 13 | 174 | 349381 | 1798.13 | 807 | 784 | 193.9 |
| D | 8 | 195 | 137105 | 703.17 | 807 | 784 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

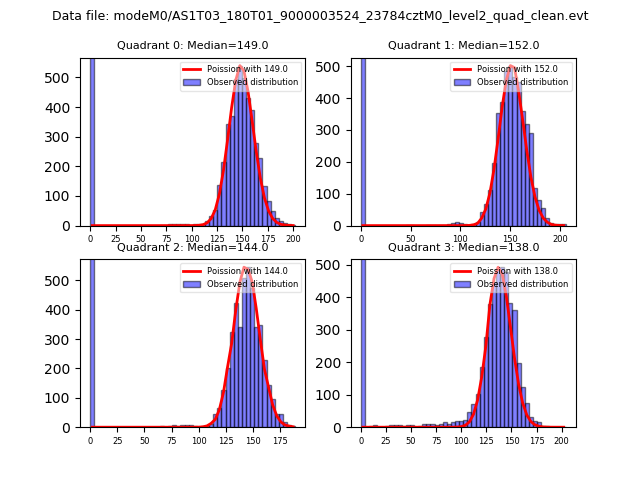

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

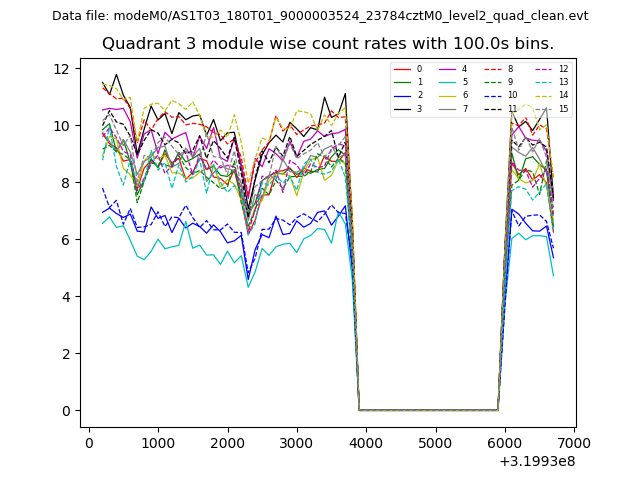

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

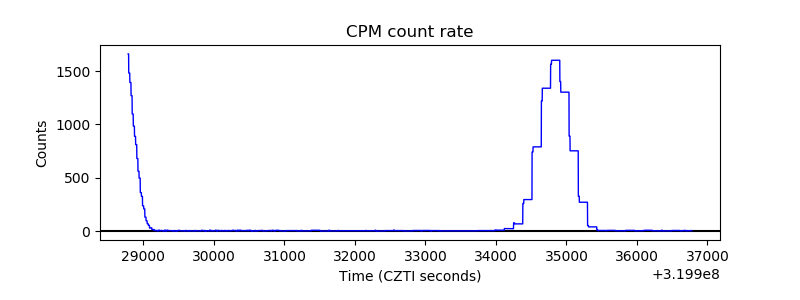

| _CPM_Rate |  |

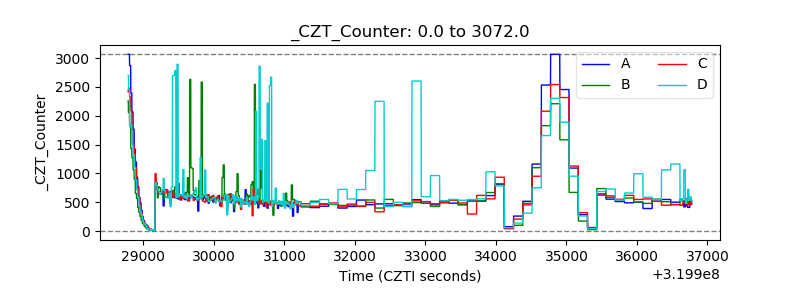

| CZT Counter |  |
