| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_113T01_9000003526_23795cztM0_level2.evt | modeM0/AS1A07_113T01_9000003526_23795cztM0_level2_quad_clean.evt |
| Size (bytes) | 655,076,160 | 73,621,440 |
| Size | 624.7 MB | 70.2 MB |
| Events in quadrant A | 3,471,944 | 454,643 |
| Events in quadrant B | 3,670,575 | 463,699 |
| Events in quadrant C | 3,582,939 | 453,229 |
| Events in quadrant D | 8,692,222 | 421,937 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14459 | 2 |
| B | 0 | 14951 | 2 |
| C | 0 | 14765 | 2 |
| D | 0 | 30285 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6244 | 71 | 1.137092% |
| B | 6244 | 107 | 1.713645% |
| C | 6244 | 160 | 2.562460% |
| D | 6244 | 1202 | 19.250480% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

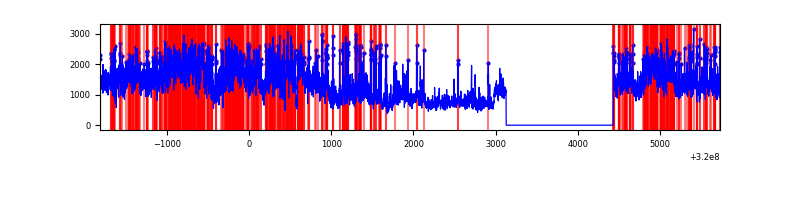

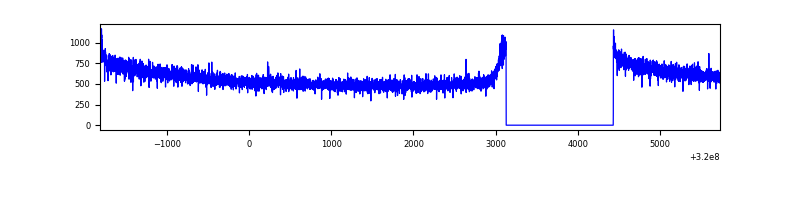

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7549 | 6244 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7549 | 6244 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7549 | 6244 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7548 | 6243 | 878 | 878 | 11.63% | 14.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10832 | 55.04 | 900 | 882 | 180.8 |
| A | 0 | 226 | 7887 | 38.75 | 900 | 882 | 180.8 |
| A | 3 | 137 | 7107 | 34.44 | 900 | 882 | 180.8 |
| B | 3 | 64 | 159374 | 962.91 | 894 | 875 | 164.6 |
| B | 12 | 111 | 18754 | 108.62 | 894 | 875 | 164.6 |
| B | 11 | 111 | 16785 | 96.66 | 894 | 875 | 164.6 |
| C | 14 | 238 | 144815 | 712.9 | 879 | 891 | 201.9 |
| C | 13 | 61 | 6119 | 25.9 | 879 | 891 | 201.9 |
| C | 7 | 247 | 5491 | 22.79 | 879 | 891 | 201.9 |
| D | 8 | 195 | 3180380 | 15645.27 | 849 | 829 | 203.2 |
| D | 13 | 174 | 1414353 | 6955.37 | 849 | 829 | 203.2 |
| D | 1 | 52 | 623761 | 3065.19 | 849 | 829 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

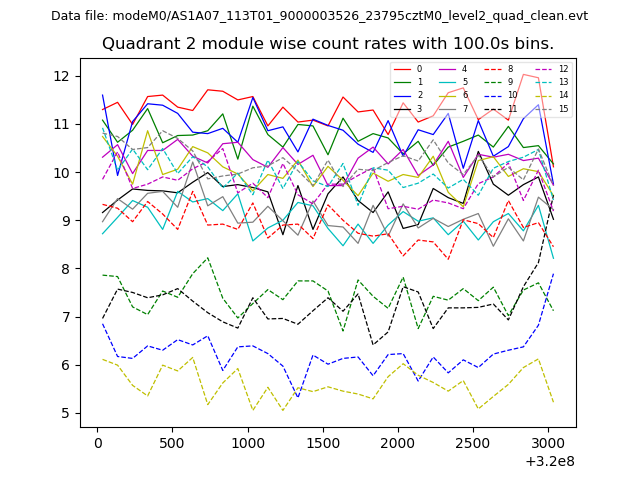

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

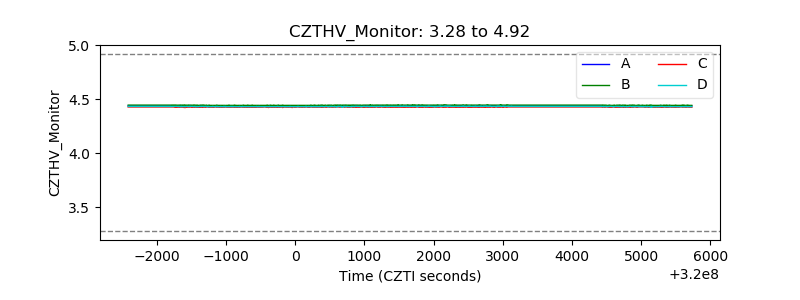

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

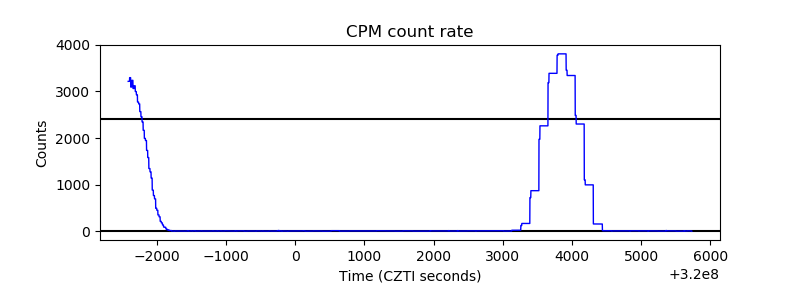

| _CPM_Rate |  |

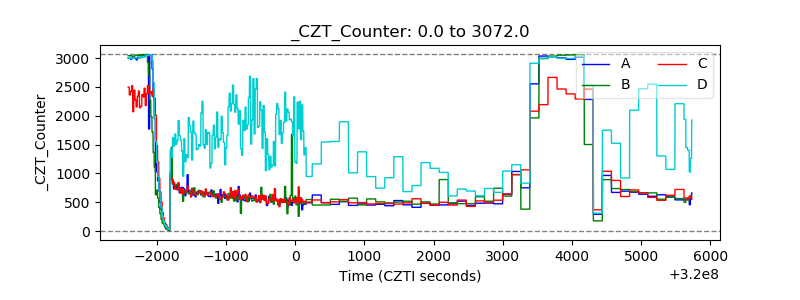

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

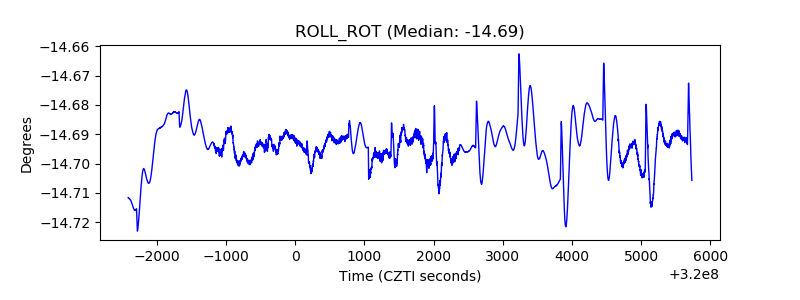

| _ROLL_ROT |  |
| _Roll_DEC |  |

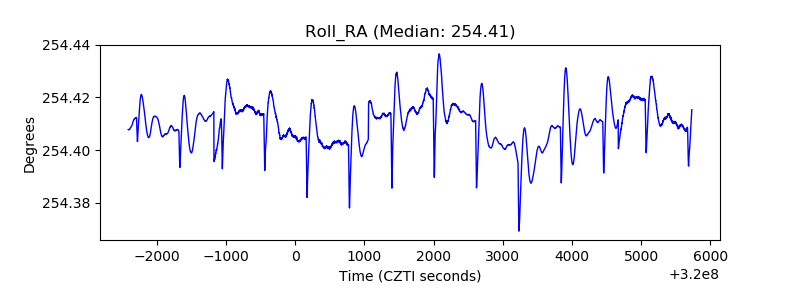

| _Roll_RA |  |
| Veto Counter |  |
