| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_113T01_9000003526_23797cztM0_level2.evt | modeM0/AS1A07_113T01_9000003526_23797cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,003,520 | 101,073,600 |
| Size | 582.7 MB | 96.4 MB |
| Events in quadrant A | 3,304,845 | 659,959 |
| Events in quadrant B | 3,459,925 | 682,152 |
| Events in quadrant C | 3,461,578 | 669,118 |
| Events in quadrant D | 7,855,816 | 614,000 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13753 | 2 |
| B | 0 | 14266 | 2 |
| C | 0 | 14241 | 2 |
| D | 0 | 27791 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6237 | 62 | 0.994068% |
| B | 6237 | 79 | 1.266635% |
| C | 6237 | 144 | 2.308802% |
| D | 6237 | 1042 | 16.706750% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

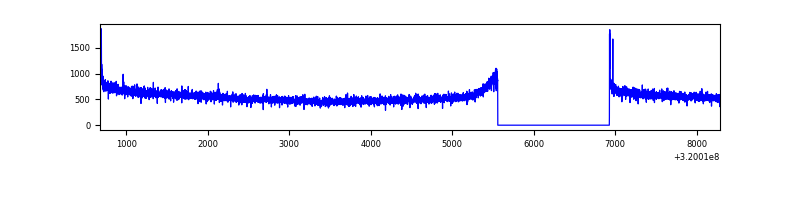

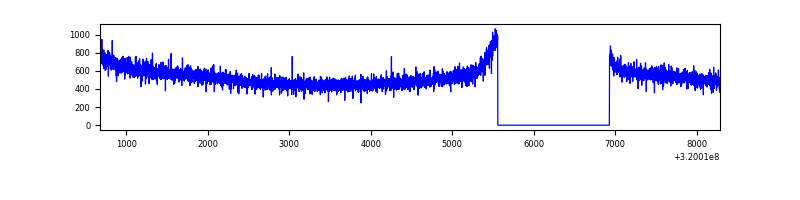

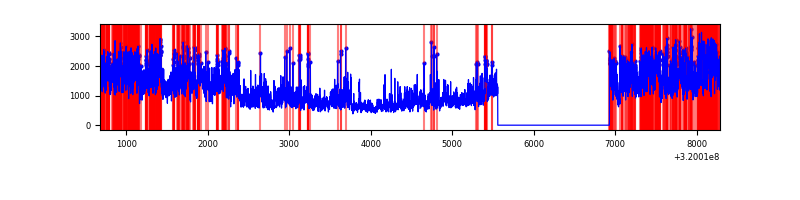

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7607 | 6237 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7607 | 6237 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7607 | 6237 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7607 | 6237 | 732 | 732 | 9.62% | 11.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11130 | 60.52 | 856 | 841 | 170.0 |
| A | 0 | 226 | 7430 | 38.76 | 856 | 841 | 170.0 |
| A | 3 | 137 | 7025 | 36.37 | 856 | 841 | 170.0 |
| B | 3 | 64 | 77209 | 472.76 | 863 | 842 | 161.5 |
| B | 12 | 111 | 18497 | 109.3 | 863 | 842 | 161.5 |
| B | 11 | 111 | 16364 | 96.09 | 863 | 842 | 161.5 |
| C | 14 | 238 | 138013 | 707.2 | 847 | 856 | 193.9 |
| C | 0 | 10 | 16652 | 81.45 | 847 | 856 | 193.9 |
| C | 13 | 61 | 5843 | 25.71 | 847 | 856 | 193.9 |
| D | 8 | 195 | 3449770 | 17672.76 | 813 | 793 | 195.2 |
| D | 1 | 52 | 882524 | 4518.04 | 813 | 793 | 195.2 |
| D | 13 | 174 | 398586 | 2038.31 | 813 | 793 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

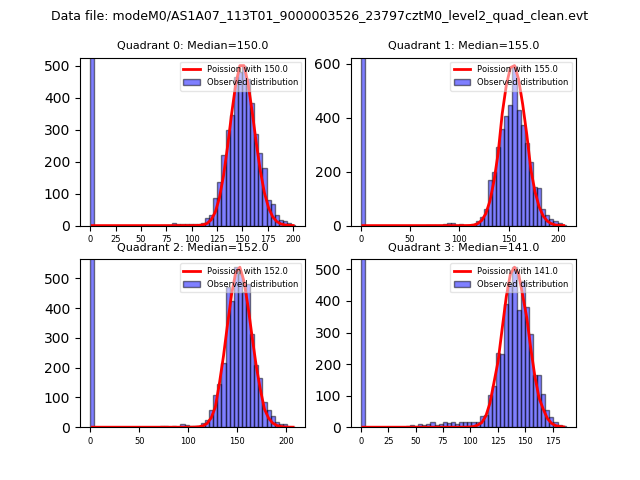

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

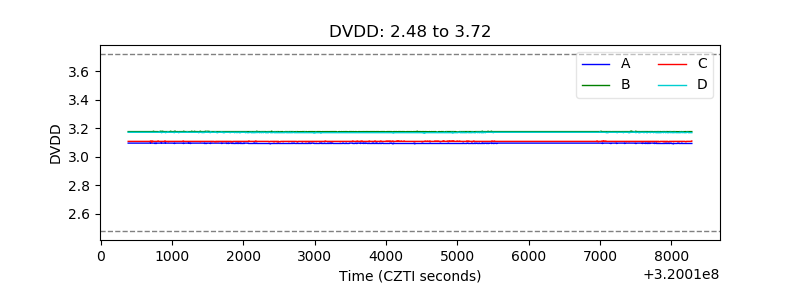

| D_VDD |  |

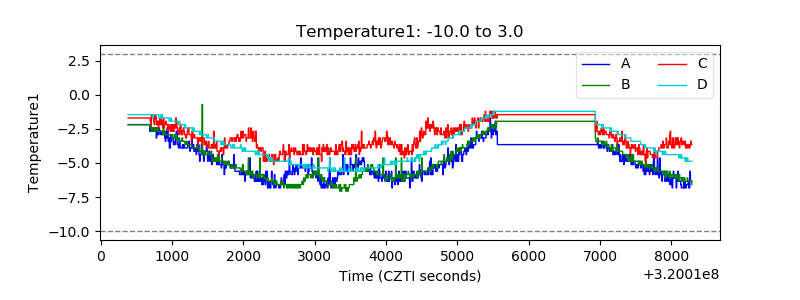

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

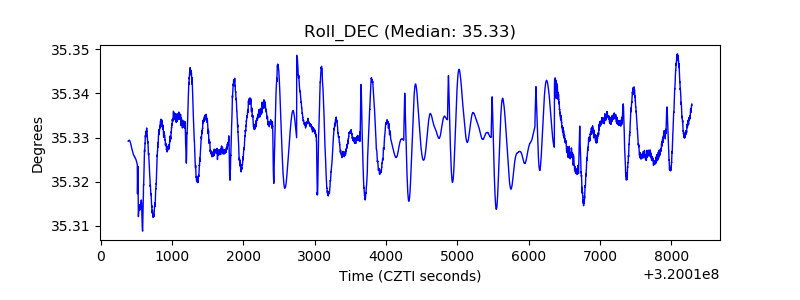

| _Roll_DEC |  |
| _Roll_RA |  |

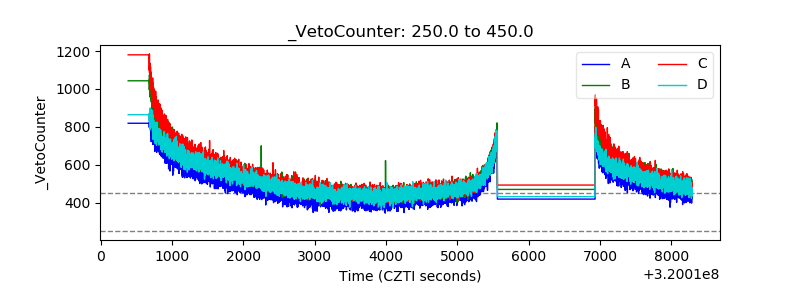

| Veto Counter |  |
