| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_113T01_9000003526_23802cztM0_level2.evt | modeM0/AS1A07_113T01_9000003526_23802cztM0_level2_quad_clean.evt |
| Size (bytes) | 840,038,400 | 101,335,680 |
| Size | 801.1 MB | 96.6 MB |
| Events in quadrant A | 3,421,553 | 665,201 |
| Events in quadrant B | 4,227,878 | 683,588 |
| Events in quadrant C | 3,519,804 | 667,052 |
| Events in quadrant D | 13,770,436 | 536,323 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15174 | 1 |
| B | 0 | 17304 | 1 |
| C | 0 | 15299 | 1 |
| D | 0 | 45990 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7409 | 99 | 1.336213% |
| B | 7410 | 162 | 2.186235% |
| C | 7410 | 131 | 1.767881% |
| D | 7410 | 3761 | 50.755735% |

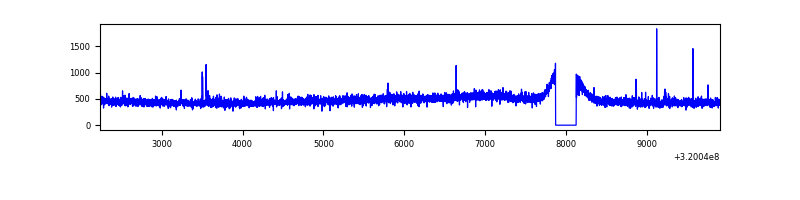

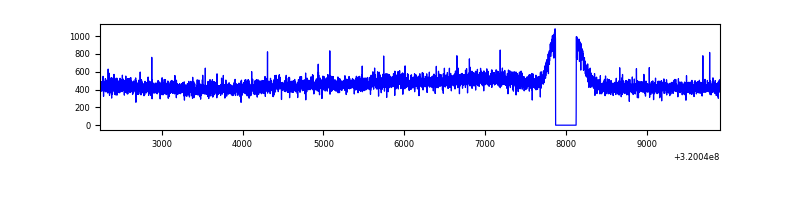

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7664 | 7409 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7665 | 7410 | 18 | 18 | 0.23% | 0.24% |  |
| C | 7665 | 7410 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 7410 | 3515 | 3515 | 45.86% | 47.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12206 | 63.19 | 885 | 865 | 179.5 |
| A | 3 | 137 | 8117 | 40.41 | 885 | 865 | 179.5 |
| A | 0 | 226 | 7717 | 38.18 | 885 | 865 | 179.5 |
| B | 3 | 64 | 676639 | 3884.31 | 886 | 860 | 174.0 |
| B | 15 | 33 | 49665 | 280.52 | 886 | 860 | 174.0 |
| B | 12 | 111 | 20647 | 113.73 | 886 | 860 | 174.0 |
| C | 14 | 238 | 136315 | 670.66 | 856 | 862 | 202.0 |
| C | 7 | 247 | 23405 | 111.62 | 856 | 862 | 202.0 |
| C | 8 | 128 | 10863 | 49.52 | 856 | 862 | 202.0 |
| D | 8 | 195 | 7339031 | 41419.45 | 722 | 701 | 177.2 |
| D | 13 | 174 | 2938819 | 16583.51 | 722 | 701 | 177.2 |
| D | 1 | 52 | 742026 | 4184.23 | 722 | 701 | 177.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

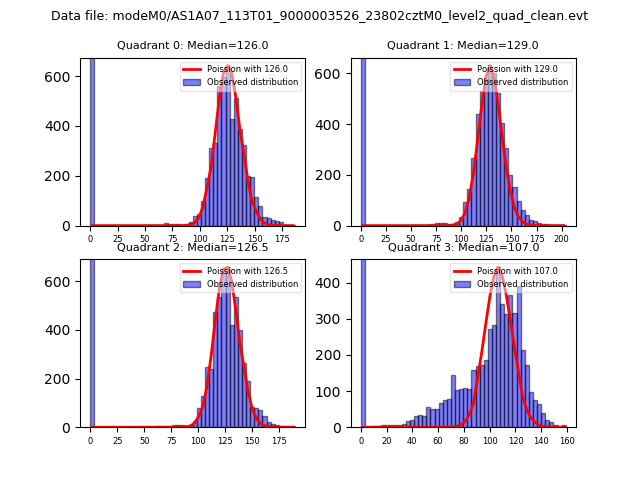

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

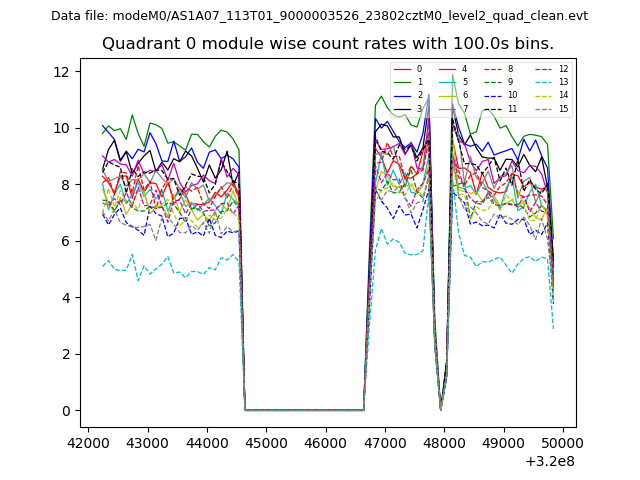

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

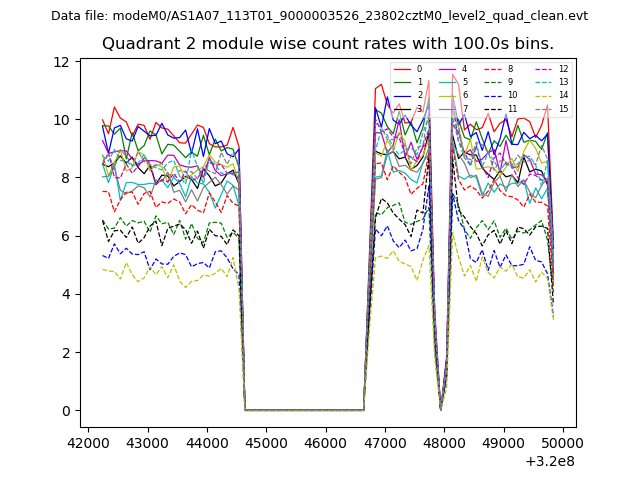

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

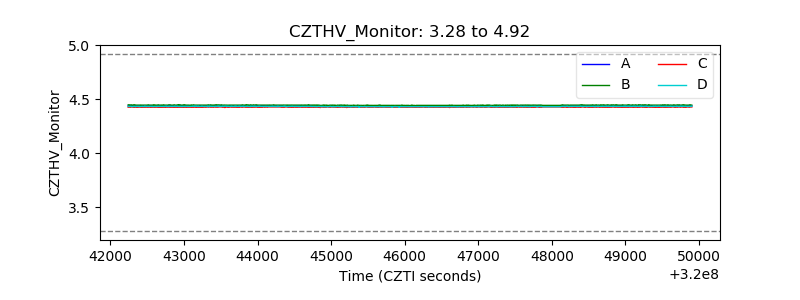

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

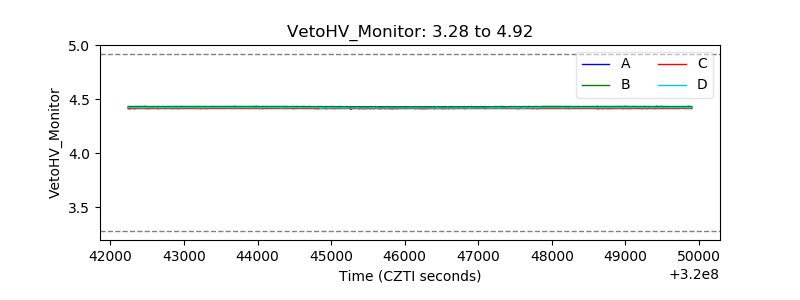

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

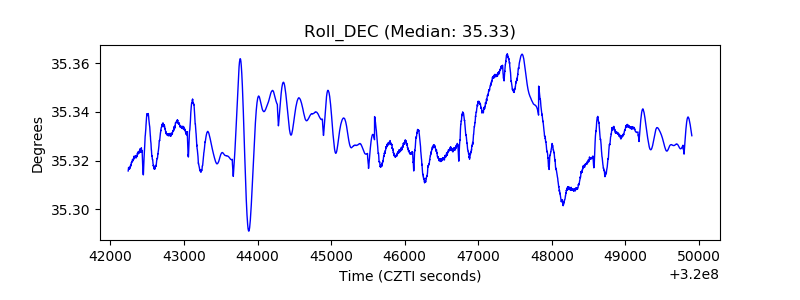

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
