| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_113T01_9000003526_23835cztM0_level2.evt | modeM0/AS1A07_113T01_9000003526_23835cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,652,480 | 81,469,440 |
| Size | 500.3 MB | 77.7 MB |
| Events in quadrant A | 3,133,937 | 510,205 |
| Events in quadrant B | 3,753,950 | 517,696 |
| Events in quadrant C | 3,467,688 | 504,828 |
| Events in quadrant D | 5,098,231 | 486,192 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13303 | 1 |
| B | 0 | 15080 | 1 |
| C | 0 | 14158 | 1 |
| D | 0 | 19764 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6418 | 32 | 0.498598% |
| B | 6419 | 200 | 3.115750% |
| C | 6419 | 86 | 1.339773% |
| D | 6418 | 78 | 1.215332% |

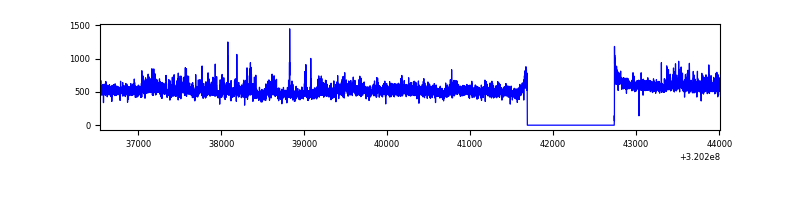

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7468 | 6419 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7469 | 6420 | 124 | 124 | 1.66% | 1.93% |  |
| C | 7469 | 6420 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7468 | 6419 | 40 | 40 | 0.54% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10410 | 59.23 | 812 | 795 | 162.3 |
| A | 3 | 137 | 7023 | 38.37 | 812 | 795 | 162.3 |
| A | 0 | 226 | 6976 | 38.08 | 812 | 795 | 162.3 |
| B | 3 | 64 | 613566 | 4006.96 | 799 | 781 | 152.9 |
| B | 12 | 111 | 18474 | 115.69 | 799 | 781 | 152.9 |
| B | 11 | 111 | 16635 | 103.67 | 799 | 781 | 152.9 |
| C | 0 | 239 | 243145 | 1326.65 | 780 | 786 | 182.7 |
| C | 14 | 238 | 124500 | 677.2 | 780 | 786 | 182.7 |
| C | 0 | 10 | 27950 | 148.69 | 780 | 786 | 182.7 |
| D | 13 | 174 | 1402045 | 7316.45 | 788 | 764 | 191.5 |
| D | 8 | 195 | 425841 | 2219.44 | 788 | 764 | 191.5 |
| D | 1 | 52 | 240319 | 1250.78 | 788 | 764 | 191.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

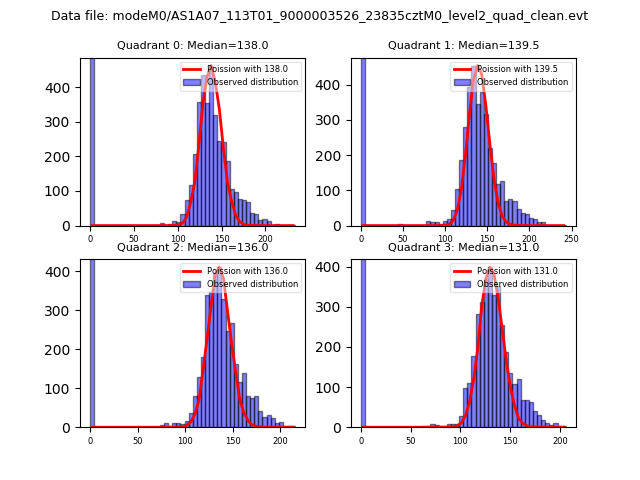

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

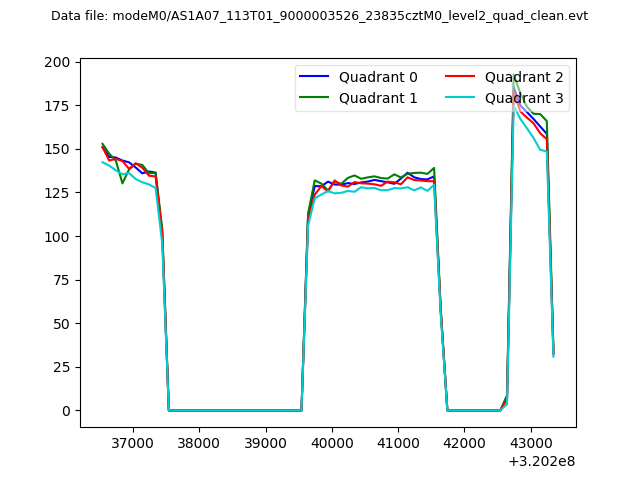

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

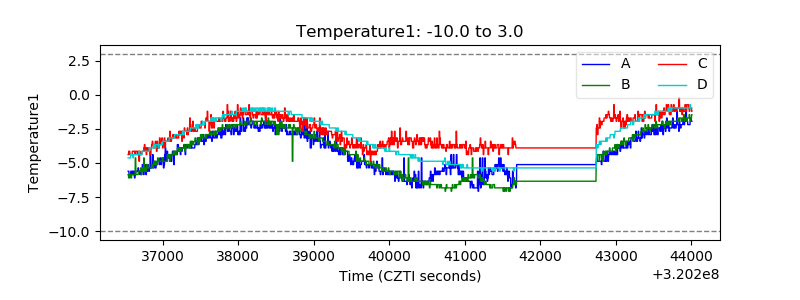

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

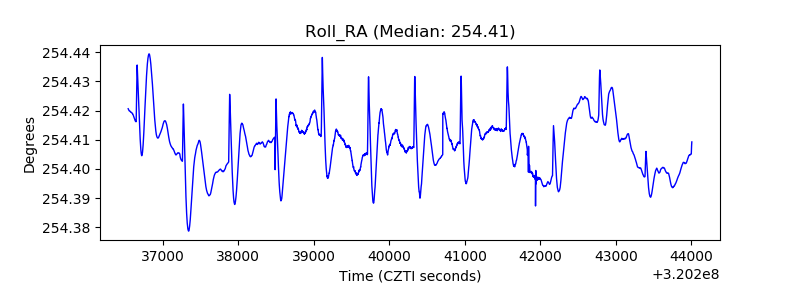

| _Roll_RA |  |
| Veto Counter |  |
