| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_113T01_9000003526_23838cztM0_level2.evt | modeM0/AS1A07_113T01_9000003526_23838cztM0_level2_quad_clean.evt |
| Size (bytes) | 666,279,360 | 78,998,400 |
| Size | 635.4 MB | 75.3 MB |
| Events in quadrant A | 3,547,219 | 484,466 |
| Events in quadrant B | 3,681,731 | 491,286 |
| Events in quadrant C | 3,867,118 | 477,094 |
| Events in quadrant D | 8,606,511 | 448,483 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14987 | 1 |
| B | 0 | 15285 | 1 |
| C | 0 | 15900 | 1 |
| D | 0 | 30578 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7048 | 82 | 1.163451% |
| B | 7049 | 80 | 1.134913% |
| C | 7049 | 120 | 1.702369% |
| D | 7049 | 554 | 7.859271% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8203 | 7049 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8204 | 7050 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8204 | 7050 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8204 | 7050 | 333 | 333 | 4.06% | 4.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11944 | 59.71 | 920 | 901 | 184.9 |
| A | 0 | 226 | 8029 | 38.54 | 920 | 901 | 184.9 |
| A | 3 | 137 | 7532 | 35.85 | 920 | 901 | 184.9 |
| B | 3 | 64 | 59834 | 345.16 | 914 | 898 | 170.8 |
| B | 12 | 111 | 20160 | 112.81 | 914 | 898 | 170.8 |
| B | 0 | 190 | 18492 | 103.04 | 914 | 898 | 170.8 |
| C | 0 | 239 | 167272 | 809.97 | 891 | 899 | 205.4 |
| C | 14 | 238 | 144016 | 696.75 | 891 | 899 | 205.4 |
| C | 0 | 10 | 61520 | 295.13 | 891 | 899 | 205.4 |
| D | 8 | 195 | 2652842 | 12451.62 | 880 | 857 | 213.0 |
| D | 13 | 174 | 1278784 | 6000.13 | 880 | 857 | 213.0 |
| D | 1 | 52 | 1124337 | 5274.97 | 880 | 857 | 213.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

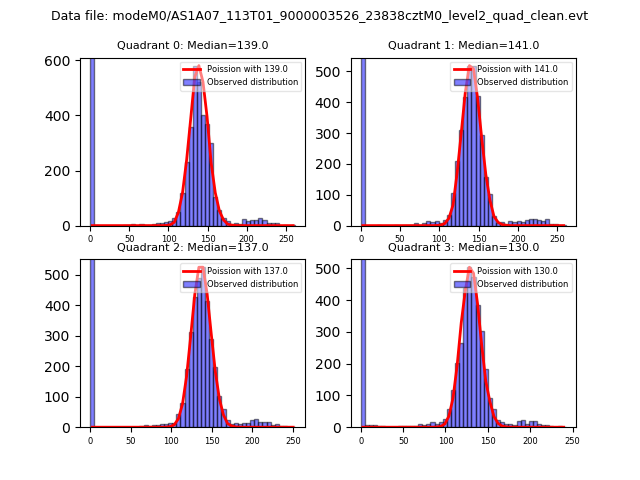

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

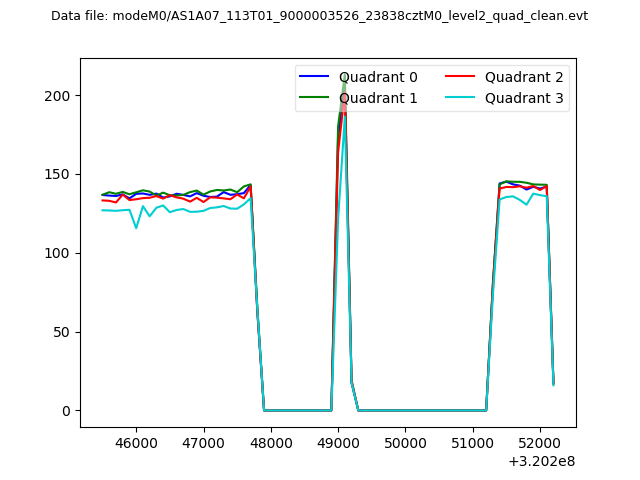

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

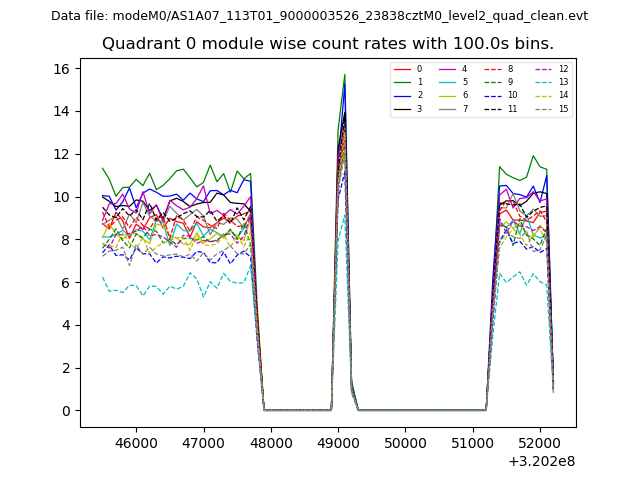

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

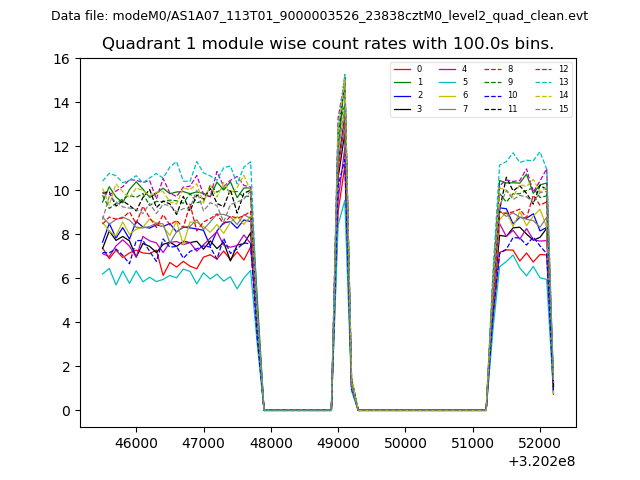

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

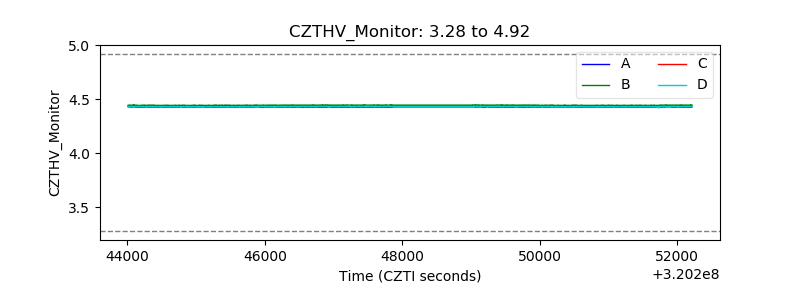

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

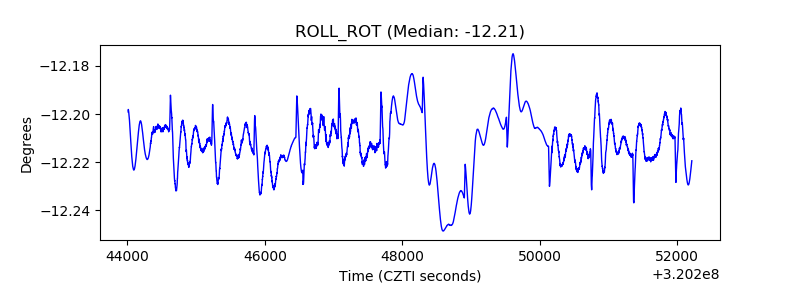

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
