| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_149T01_9000003534_23852cztM0_level2.evt | modeM0/AS1A07_149T01_9000003534_23852cztM0_level2_quad_clean.evt |
| Size (bytes) | 210,960,000 | 45,570,240 |
| Size | 201.2 MB | 43.5 MB |
| Events in quadrant A | 1,394,628 | 308,851 |
| Events in quadrant B | 1,401,169 | 312,233 |
| Events in quadrant C | 1,447,228 | 291,350 |
| Events in quadrant D | 1,970,869 | 284,503 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5733 | 1 |
| B | 0 | 5717 | 1 |
| C | 0 | 5923 | 1 |
| D | 0 | 7631 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2545 | 47 | 1.846758% |
| B | 2545 | 52 | 2.043222% |
| C | 2545 | 56 | 2.200393% |
| D | 2545 | 207 | 8.133595% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3755 | 2546 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3755 | 2546 | 1 | 1 | 0.03% | 0.04% |  |
| C | 3755 | 2546 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3755 | 2546 | 58 | 58 | 1.54% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4410 | 55.21 | 361 | 355 | 73.4 |
| A | 0 | 226 | 3304 | 40.15 | 361 | 355 | 73.4 |
| A | 3 | 137 | 2998 | 35.99 | 361 | 355 | 73.4 |
| B | 12 | 111 | 7649 | 108.7 | 356 | 347 | 67.2 |
| B | 11 | 111 | 6787 | 95.87 | 356 | 347 | 67.2 |
| B | 14 | 111 | 5920 | 82.96 | 356 | 347 | 67.2 |
| C | 14 | 238 | 54441 | 684.01 | 339 | 340 | 79.1 |
| C | 7 | 247 | 51893 | 651.8 | 339 | 340 | 79.1 |
| C | 0 | 10 | 8869 | 107.83 | 339 | 340 | 79.1 |
| D | 1 | 52 | 568917 | 6814.78 | 341 | 331 | 83.4 |
| D | 8 | 195 | 87710 | 1047.28 | 341 | 331 | 83.4 |
| D | 13 | 174 | 11154 | 129.72 | 341 | 331 | 83.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

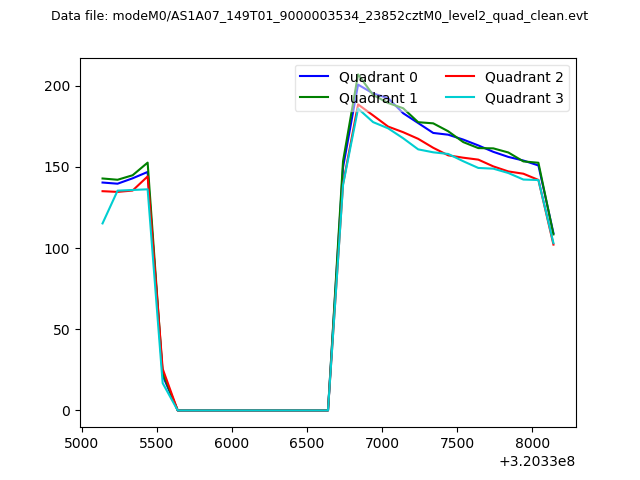

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

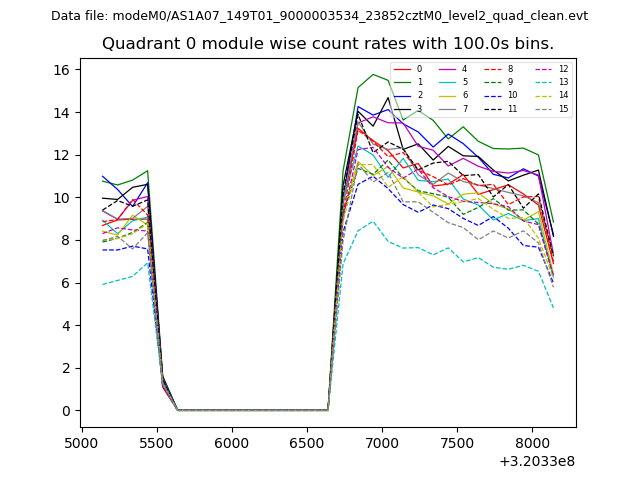

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

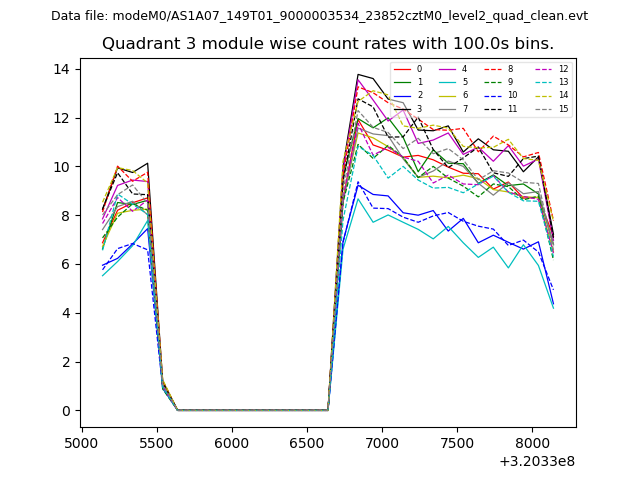

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

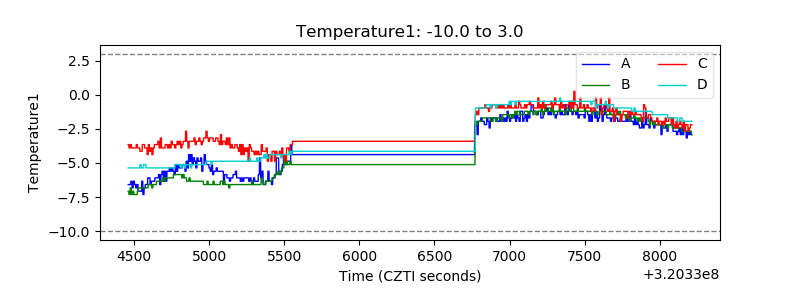

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

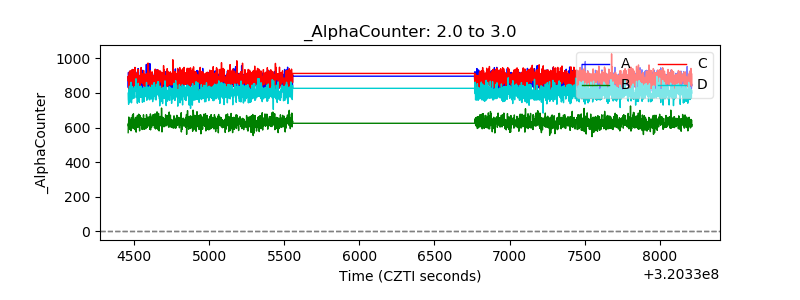

| Alpha Counter |  |

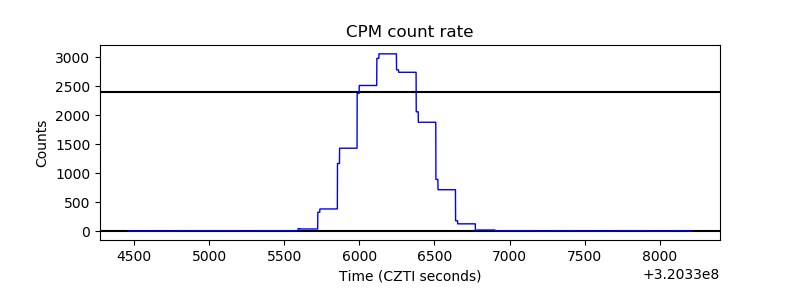

| _CPM_Rate |  |

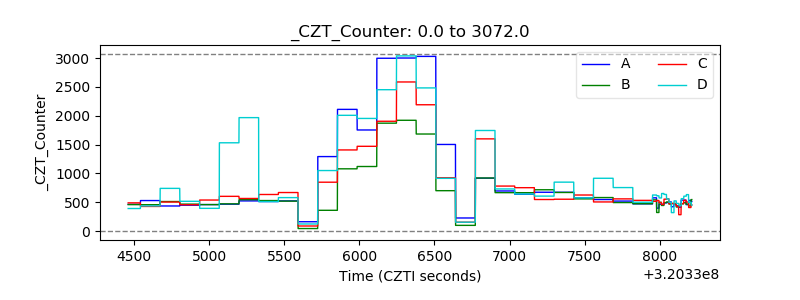

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
