| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_149T01_9000003534_23866cztM0_level2.evt | modeM0/AS1A07_149T01_9000003534_23866cztM0_level2_quad_clean.evt |
| Size (bytes) | 164,056,320 | 38,540,160 |
| Size | 156.5 MB | 36.8 MB |
| Events in quadrant A | 1,128,737 | 254,208 |
| Events in quadrant B | 1,157,944 | 256,656 |
| Events in quadrant C | 1,131,059 | 239,809 |
| Events in quadrant D | 1,381,374 | 239,672 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6797 | 1801 |
| B | 0 | 6821 | 1757 |
| C | 0 | 6884 | 1881 |
| D | 0 | 7717 | 2043 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 16 |
| B | 0 | 72 | 22 |
| C | 0 | 70 | 16 |
| D | 0 | 69 | 17 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2455 | 48 | 1.955193% |
| B | 2465 | 42 | 1.703854% |
| C | 2440 | 52 | 2.131148% |
| D | 2437 | 46 | 1.887567% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4296 | 2523 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4295 | 2527 | 2 | 2 | 0.05% | 0.08% |  |
| C | 4278 | 2504 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4278 | 2514 | 12 | 12 | 0.28% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4171 | 63.95 | 292 | 286 | 60.7 |
| A | 0 | 226 | 2582 | 37.8 | 292 | 286 | 60.7 |
| A | 3 | 137 | 2534 | 37.01 | 292 | 286 | 60.7 |
| B | 5 | 172 | 7080 | 118.96 | 291 | 283 | 57.1 |
| B | 12 | 111 | 6589 | 110.37 | 291 | 283 | 57.1 |
| B | 0 | 190 | 5776 | 96.14 | 291 | 283 | 57.1 |
| C | 14 | 238 | 44230 | 675.97 | 273 | 275 | 65.0 |
| C | 0 | 10 | 18935 | 286.97 | 273 | 275 | 65.0 |
| C | 7 | 247 | 1989 | 26.36 | 273 | 275 | 65.0 |
| D | 8 | 195 | 218060 | 3149.33 | 279 | 270 | 69.2 |
| D | 1 | 52 | 78993 | 1138.36 | 279 | 270 | 69.2 |
| D | 12 | 233 | 16472 | 234.29 | 279 | 270 | 69.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

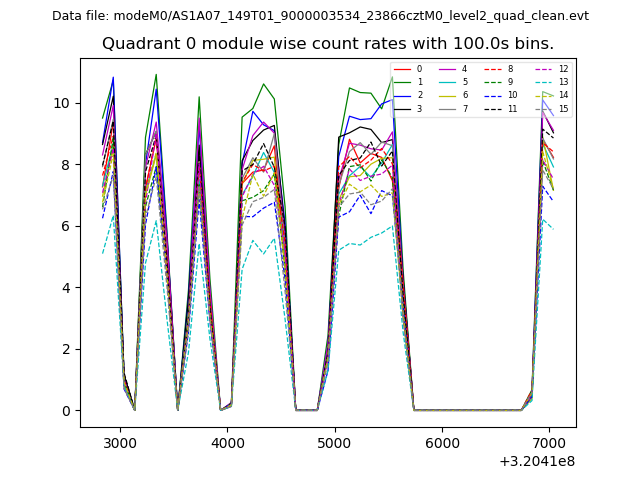

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

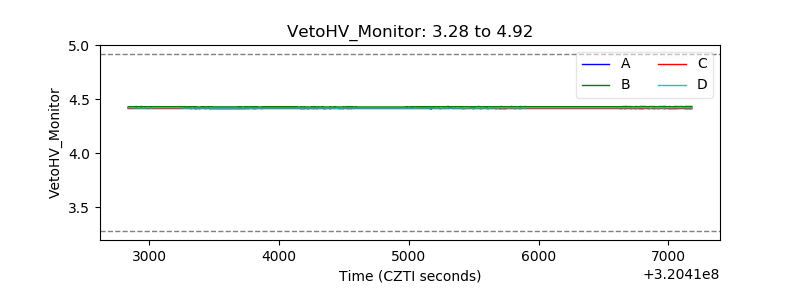

| Veto HV Monitor |  |
| Veto LLD |  |

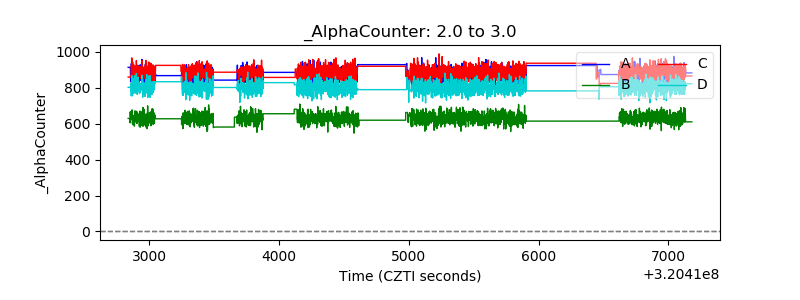

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

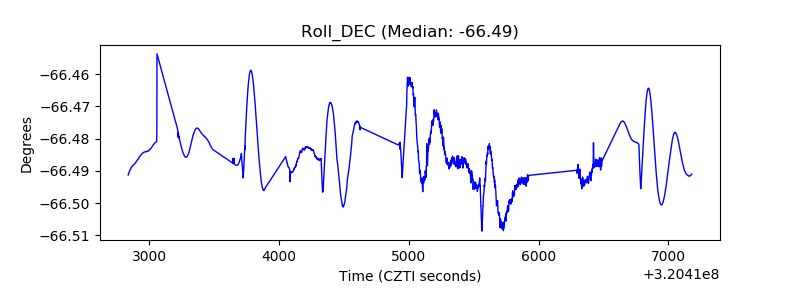

| _Roll_DEC |  |
| _Roll_RA |  |

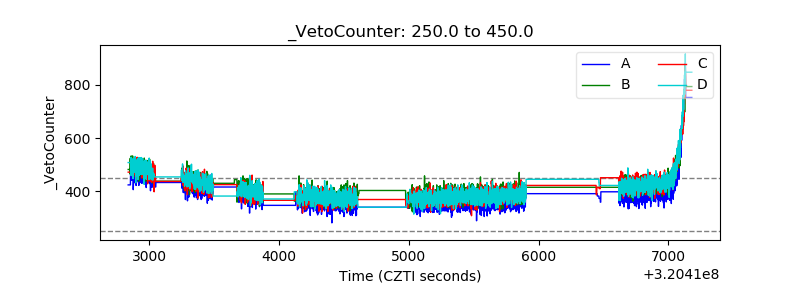

| Veto Counter |  |
