| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_002T07_9000003536_23869cztM0_level2.evt | modeM0/AS1C05_002T07_9000003536_23869cztM0_level2_quad_clean.evt |
| Size (bytes) | 371,430,720 | 83,882,880 |
| Size | 354.2 MB | 80.0 MB |
| Events in quadrant A | 2,579,232 | 552,470 |
| Events in quadrant B | 2,684,737 | 567,272 |
| Events in quadrant C | 2,722,186 | 547,225 |
| Events in quadrant D | 2,932,866 | 533,183 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10849 | 1 |
| B | 0 | 11189 | 1 |
| C | 0 | 11179 | 1 |
| D | 0 | 11906 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4850 | 79 | 1.628866% |
| B | 4850 | 97 | 2.000000% |
| C | 4850 | 155 | 3.195876% |
| D | 4850 | 82 | 1.690722% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4850 | 4850 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4850 | 4850 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4850 | 4850 | 12 | 12 | 0.25% | 0.25% |  |
| D | 4850 | 4850 | 1 | 1 | 0.02% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7964 | 54.88 | 667 | 656 | 133.2 |
| A | 4 | 2 | 6318 | 42.52 | 667 | 656 | 133.2 |
| A | 0 | 226 | 5874 | 39.18 | 667 | 656 | 133.2 |
| B | 0 | 189 | 76326 | 602.94 | 667 | 652 | 125.5 |
| B | 12 | 111 | 14321 | 108.91 | 667 | 652 | 125.5 |
| B | 11 | 111 | 12317 | 92.94 | 667 | 652 | 125.5 |
| C | 14 | 238 | 103868 | 685.22 | 649 | 656 | 150.6 |
| C | 0 | 10 | 74172 | 488.07 | 649 | 656 | 150.6 |
| C | 7 | 247 | 10032 | 62.25 | 649 | 656 | 150.6 |
| D | 8 | 195 | 384391 | 2435.19 | 658 | 640 | 157.6 |
| D | 1 | 52 | 45252 | 283.09 | 658 | 640 | 157.6 |
| D | 2 | 234 | 20823 | 128.07 | 658 | 640 | 157.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

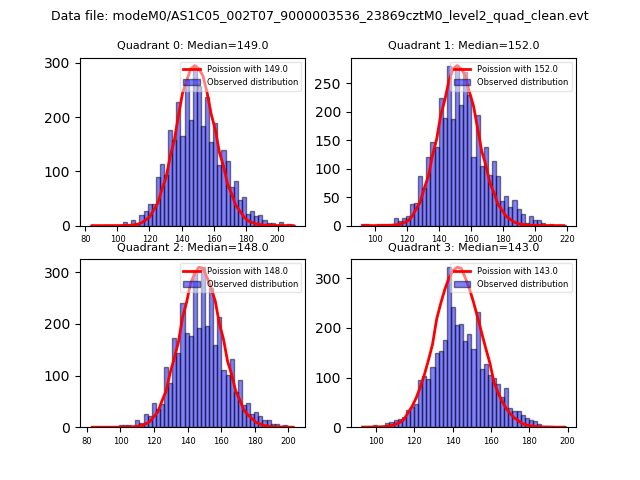

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

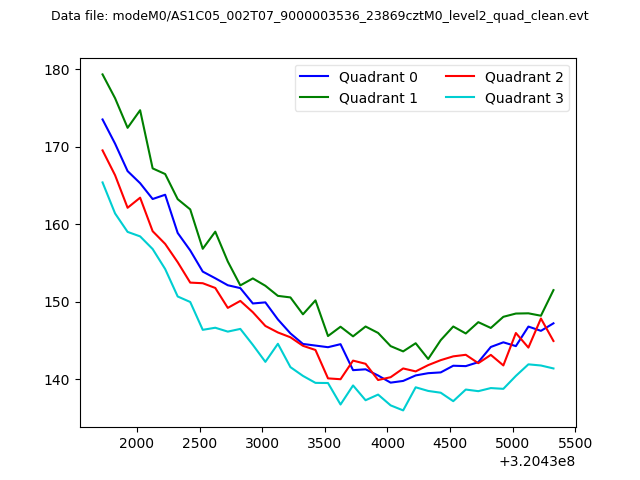

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

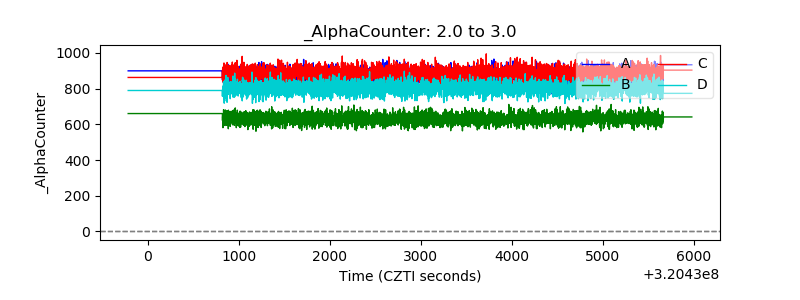

| Alpha Counter |  |

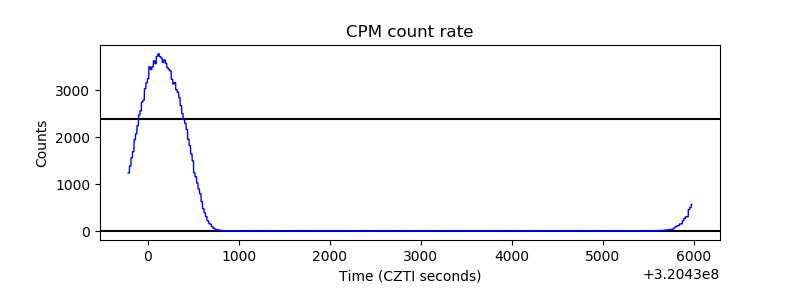

| _CPM_Rate |  |

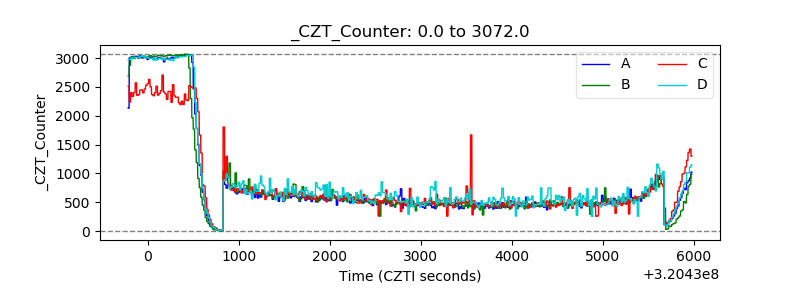

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
