| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23878cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23878cztM0_level2_quad_clean.evt |
| Size (bytes) | 994,337,280 | 188,507,520 |
| Size | 948.3 MB | 179.8 MB |
| Events in quadrant A | 6,546,538 | 1,197,400 |
| Events in quadrant B | 6,793,651 | 1,221,887 |
| Events in quadrant C | 6,705,556 | 1,173,285 |
| Events in quadrant D | 9,113,309 | 1,142,492 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28689 | 2 |
| B | 0 | 29264 | 2 |
| C | 0 | 28795 | 2 |
| D | 0 | 36712 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 286 | 0 |
| B | 0 | 286 | 0 |
| C | 0 | 286 | 0 |
| D | 0 | 286 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14109 | 102 | 0.722943% |
| B | 14109 | 137 | 0.971011% |
| C | 14109 | 203 | 1.438798% |
| D | 14109 | 526 | 3.728117% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15089 | 14111 | 0 | 0 | 0.00% | 0.00% |  |
| B | 15089 | 14111 | 2 | 2 | 0.01% | 0.01% |  |
| C | 15089 | 14111 | 1 | 1 | 0.01% | 0.01% |  |
| D | 15089 | 14111 | 398 | 398 | 2.64% | 2.82% |  |

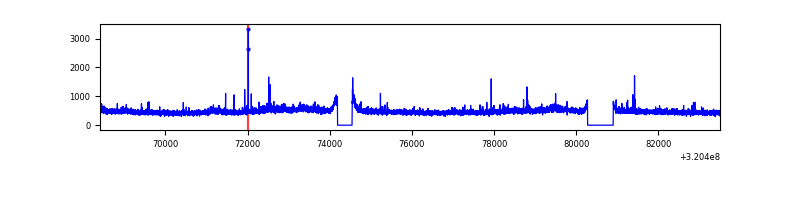

Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 25964 | 71.92 | 1689 | 1650 | 338.1 |
| A | 13 | 254 | 22487 | 61.63 | 1689 | 1650 | 338.1 |
| A | 3 | 137 | 15229 | 40.16 | 1689 | 1650 | 338.1 |
| B | 0 | 189 | 94530 | 291.11 | 1681 | 1641 | 319.1 |
| B | 12 | 111 | 39641 | 119.09 | 1681 | 1641 | 319.1 |
| B | 11 | 111 | 35234 | 105.28 | 1681 | 1641 | 319.1 |
| C | 14 | 238 | 254791 | 657.19 | 1639 | 1652 | 385.2 |
| C | 0 | 10 | 26904 | 65.56 | 1639 | 1652 | 385.2 |
| C | 10 | 23 | 15775 | 36.67 | 1639 | 1652 | 385.2 |
| D | 7 | 238 | 1375409 | 3459.31 | 1642 | 1598 | 397.1 |
| D | 1 | 52 | 1097738 | 2760.12 | 1642 | 1598 | 397.1 |
| D | 8 | 195 | 336656 | 843.69 | 1642 | 1598 | 397.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

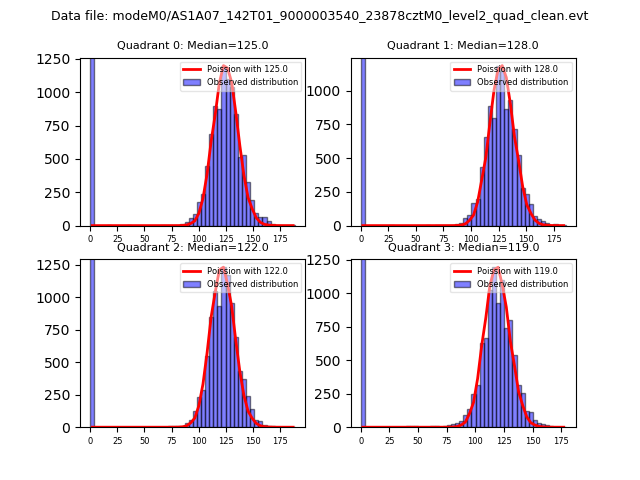

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

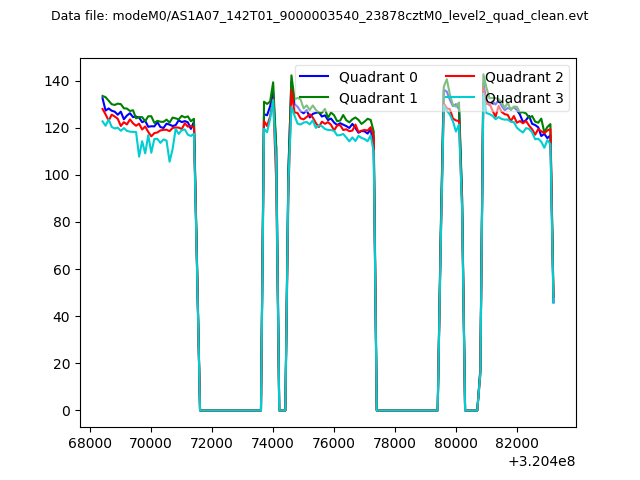

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

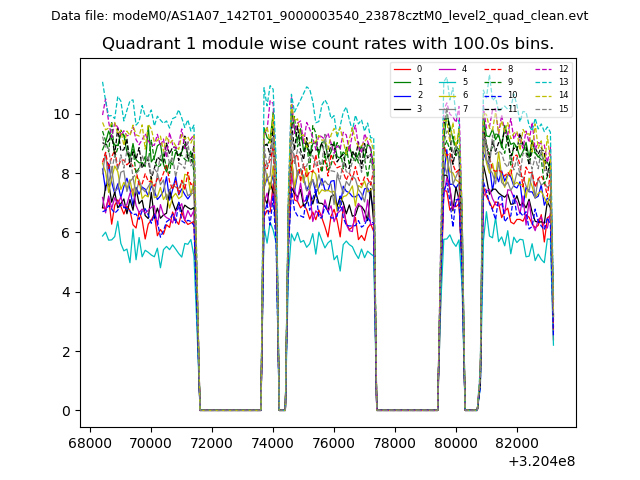

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

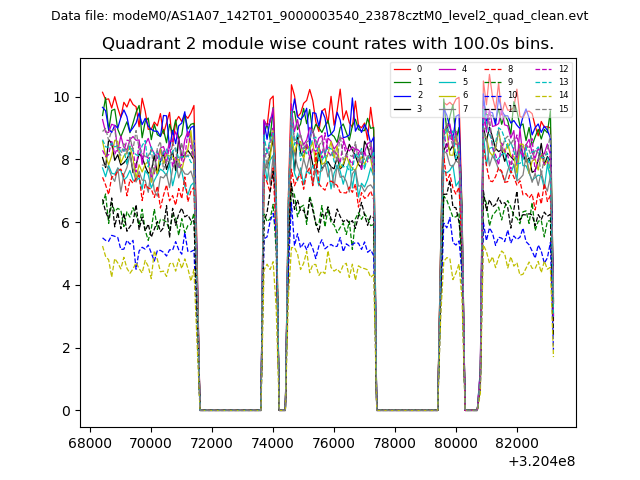

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

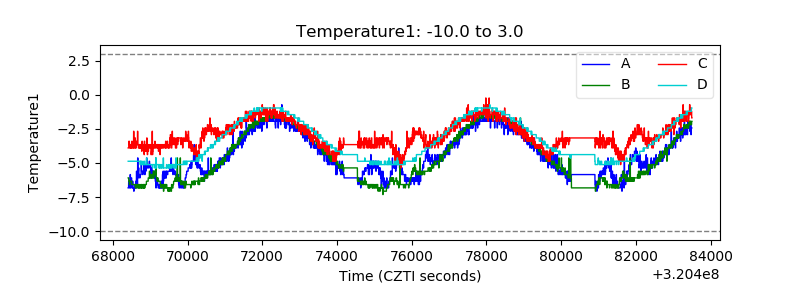

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

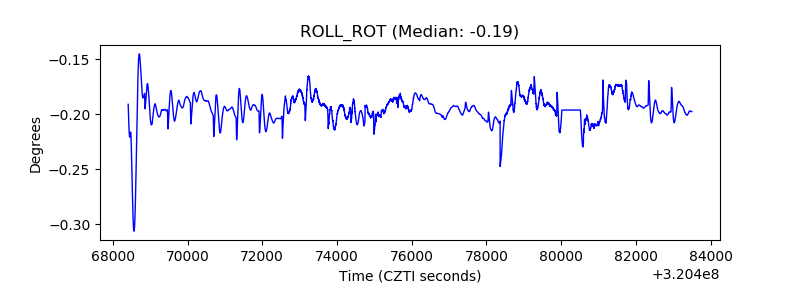

| _ROLL_ROT |  |
| _Roll_DEC |  |

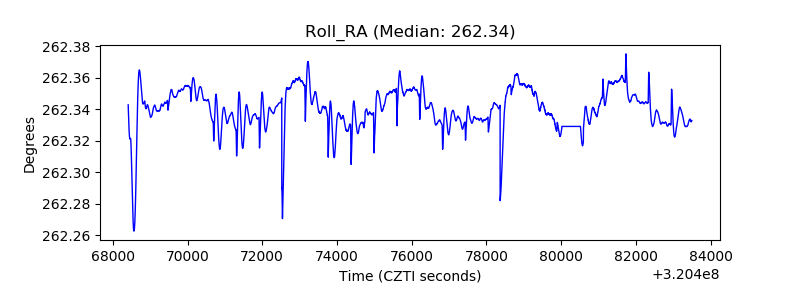

| _Roll_RA |  |
| Veto Counter |  |
