| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23883cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23883cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,463,680 | 64,460,160 |
| Size | 446.8 MB | 61.5 MB |
| Events in quadrant A | 3,381,229 | 392,833 |
| Events in quadrant B | 3,512,872 | 397,417 |
| Events in quadrant C | 3,379,157 | 370,178 |
| Events in quadrant D | 3,504,194 | 369,262 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13888 | 1 |
| B | 0 | 14251 | 1 |
| C | 0 | 13693 | 1 |
| D | 0 | 14314 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6037 | 96 | 1.590194% |
| B | 6037 | 110 | 1.822097% |
| C | 6037 | 153 | 2.534371% |
| D | 6037 | 88 | 1.457678% |

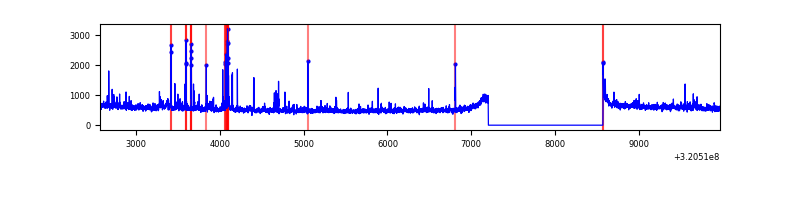

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7407 | 6038 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7407 | 6038 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7407 | 6038 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7407 | 6038 | 24 | 24 | 0.32% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9993 | 52.66 | 876 | 862 | 173.4 |
| A | 0 | 226 | 7704 | 39.46 | 876 | 862 | 173.4 |
| A | 3 | 137 | 6842 | 34.49 | 876 | 862 | 173.4 |
| B | 0 | 189 | 46684 | 288.7 | 867 | 850 | 158.8 |
| B | 0 | 245 | 21498 | 130.06 | 867 | 850 | 158.8 |
| B | 0 | 197 | 17867 | 107.19 | 867 | 850 | 158.8 |
| C | 14 | 238 | 134618 | 722.79 | 814 | 822 | 185.1 |
| C | 0 | 10 | 68808 | 367.27 | 814 | 822 | 185.1 |
| C | 13 | 61 | 5705 | 26.38 | 814 | 822 | 185.1 |
| D | 1 | 52 | 143242 | 703.47 | 838 | 815 | 202.5 |
| D | 8 | 195 | 138721 | 681.14 | 838 | 815 | 202.5 |
| D | 2 | 234 | 27085 | 129.75 | 838 | 815 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

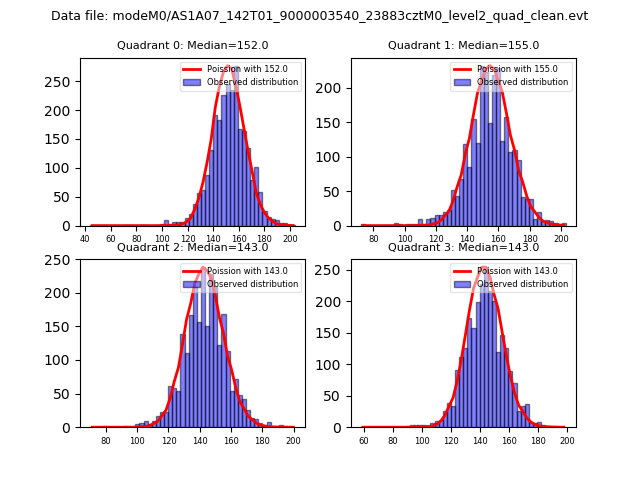

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

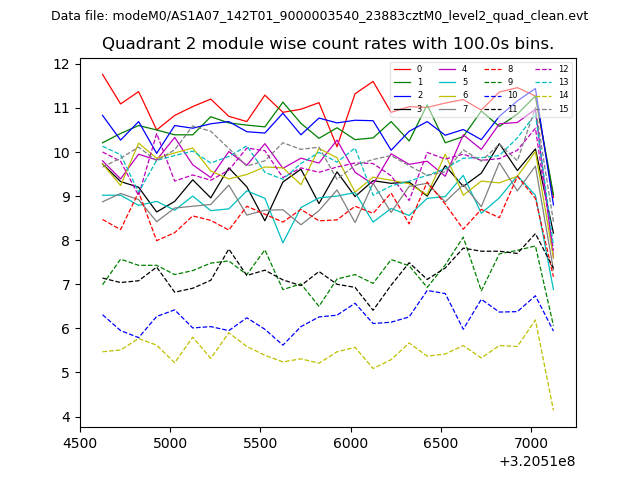

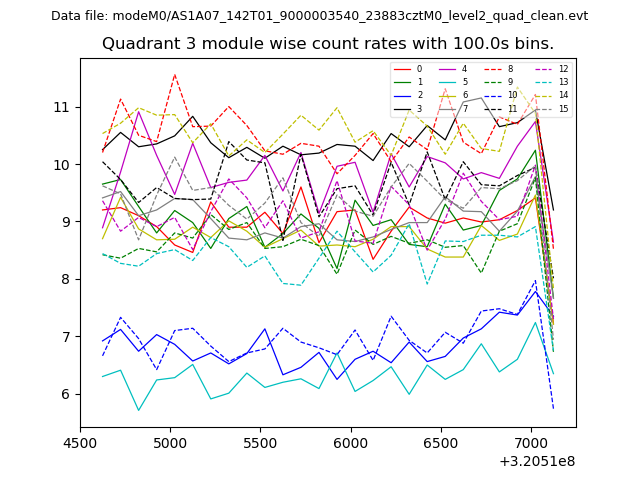

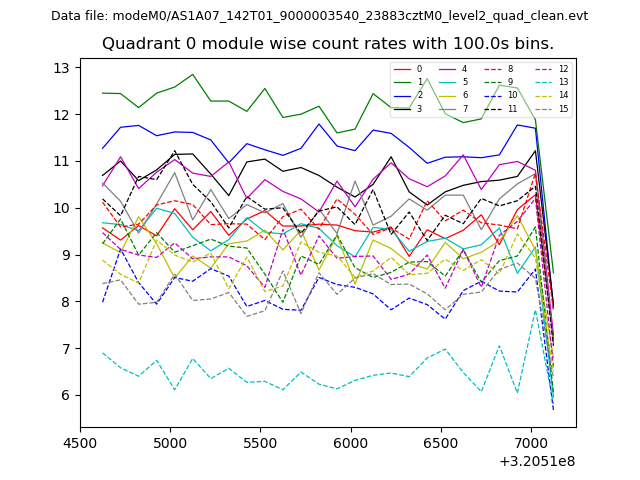

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

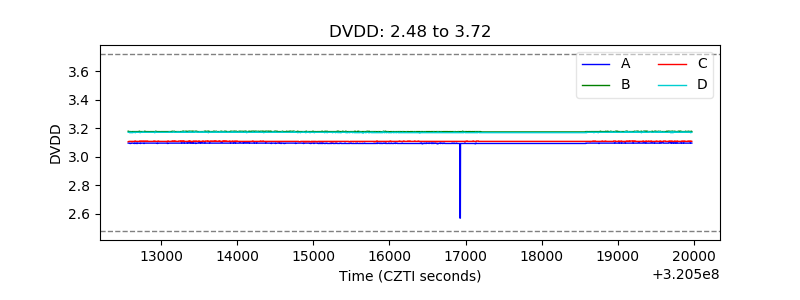

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

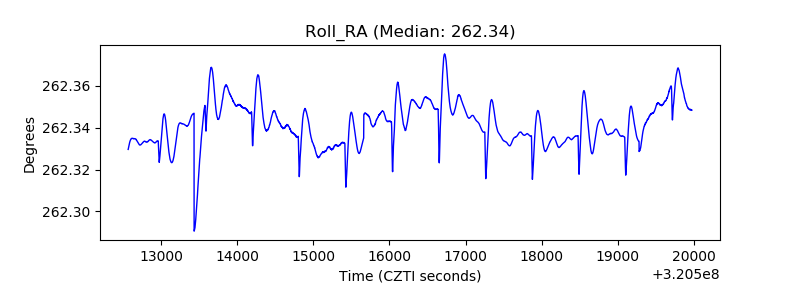

| _Roll_RA |  |
