| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23896cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23896cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,244,480 | 75,366,720 |
| Size | 485.7 MB | 71.9 MB |
| Events in quadrant A | 3,355,309 | 489,711 |
| Events in quadrant B | 3,428,398 | 494,555 |
| Events in quadrant C | 3,535,462 | 455,665 |
| Events in quadrant D | 4,681,279 | 407,703 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13841 | 2 |
| B | 0 | 13993 | 1 |
| C | 0 | 14277 | 1 |
| D | 0 | 17904 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6221 | 55 | 0.884102% |
| B | 6222 | 78 | 1.253616% |
| C | 6222 | 219 | 3.519769% |
| D | 6222 | 547 | 8.791385% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7486 | 6222 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7487 | 6223 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7487 | 6223 | 74 | 74 | 0.99% | 1.19% |  |
| D | 7487 | 6223 | 469 | 469 | 6.26% | 7.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10588 | 56.57 | 871 | 856 | 172.0 |
| A | 0 | 226 | 7789 | 40.3 | 871 | 856 | 172.0 |
| A | 3 | 137 | 6816 | 34.65 | 871 | 856 | 172.0 |
| B | 15 | 33 | 28801 | 176.0 | 855 | 837 | 158.9 |
| B | 0 | 190 | 22438 | 135.96 | 855 | 837 | 158.9 |
| B | 12 | 111 | 18001 | 108.03 | 855 | 837 | 158.9 |
| C | 7 | 247 | 132955 | 716.15 | 805 | 814 | 184.5 |
| C | 0 | 10 | 131949 | 710.7 | 805 | 814 | 184.5 |
| C | 14 | 238 | 131017 | 705.64 | 805 | 814 | 184.5 |
| D | 12 | 218 | 1368831 | 7152.42 | 801 | 782 | 191.3 |
| D | 1 | 52 | 87239 | 452.01 | 801 | 782 | 191.3 |
| D | 8 | 195 | 78884 | 408.33 | 801 | 782 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

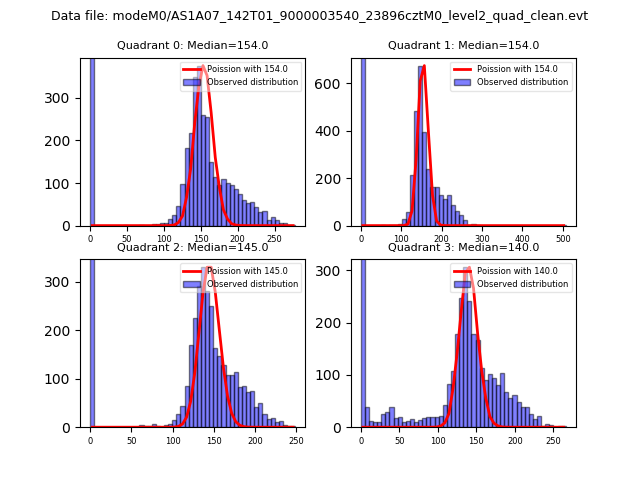

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

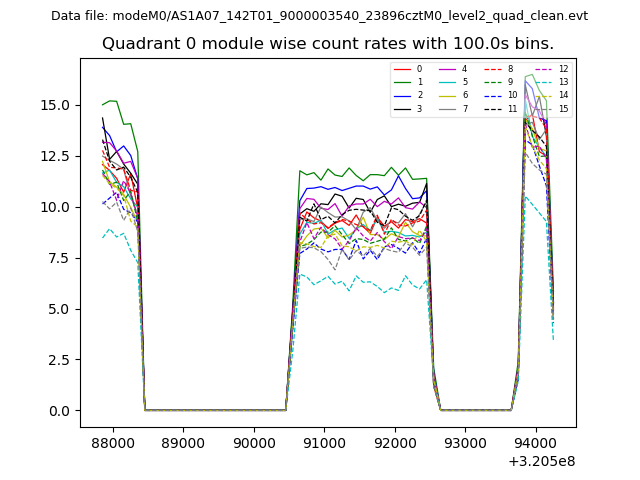

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

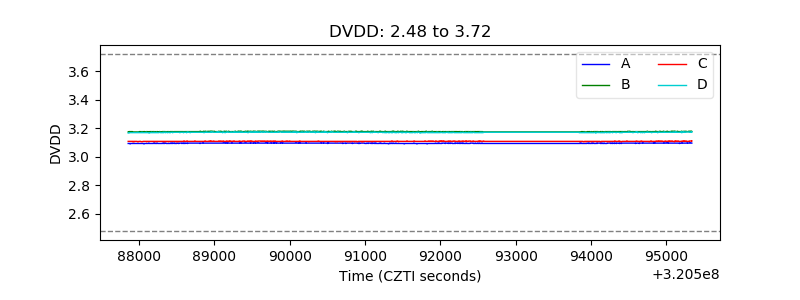

| D_VDD |  |

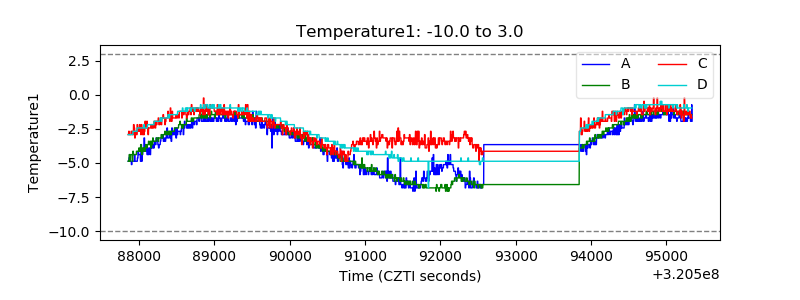

| Temperature 1 |  |

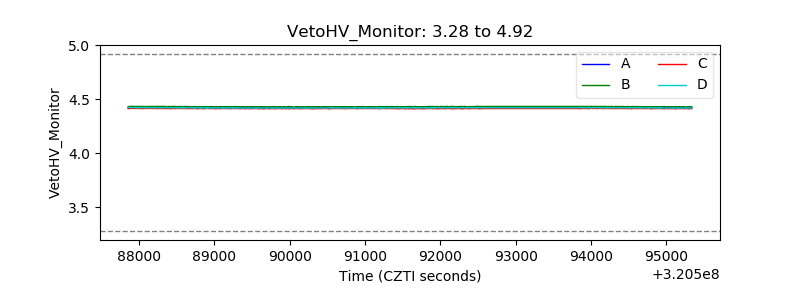

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

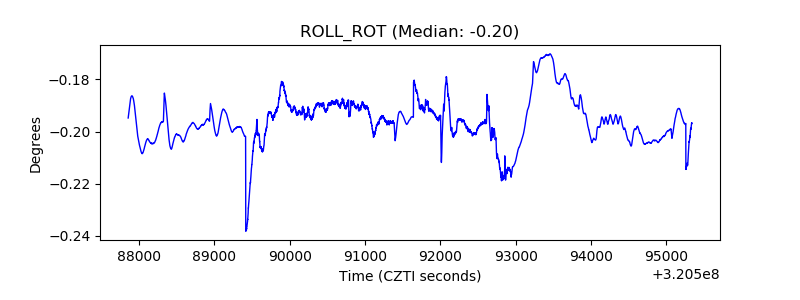

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
