| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23909cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23909cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,177,547,840 | 347,745,600 |
| Size | 2.0 GB | 331.6 MB |
| Events in quadrant A | 13,292,644 | 2,222,964 |
| Events in quadrant B | 13,555,209 | 2,265,922 |
| Events in quadrant C | 13,580,688 | 2,151,007 |
| Events in quadrant D | 23,637,864 | 1,975,212 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 57118 | 5 |
| B | 0 | 57592 | 5 |
| C | 0 | 57576 | 5 |
| D | 0 | 88451 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 568 | 0 |
| B | 0 | 568 | 0 |
| C | 0 | 568 | 0 |
| D | 0 | 568 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 27879 | 205 | 0.735320% |
| B | 27880 | 205 | 0.735294% |
| C | 27880 | 406 | 1.456241% |
| D | 27879 | 2991 | 10.728505% |

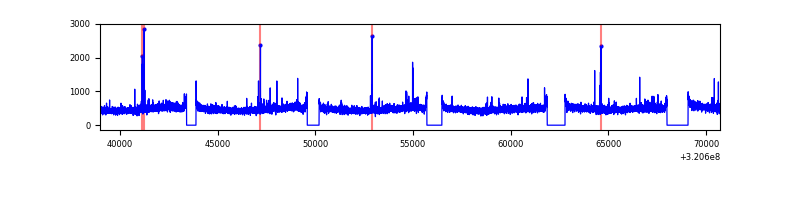

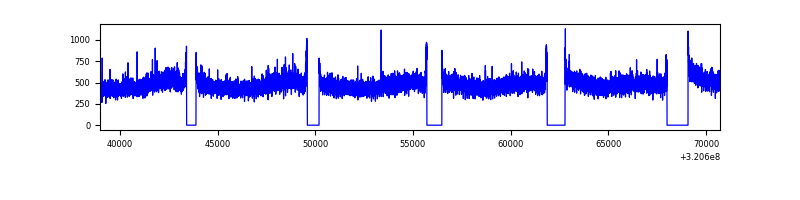

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31734 | 27882 | 0 | 0 | 0.00% | 0.00% |  |
| B | 31735 | 27883 | 5 | 5 | 0.02% | 0.02% |  |
| C | 31735 | 27883 | 7 | 7 | 0.02% | 0.03% |  |
| D | 31734 | 27882 | 2274 | 2274 | 7.17% | 8.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 44527 | 60.04 | 3443 | 3370 | 685.5 |
| A | 3 | 137 | 30139 | 39.05 | 3443 | 3370 | 685.5 |
| A | 0 | 226 | 29711 | 38.43 | 3443 | 3370 | 685.5 |
| B | 12 | 111 | 78326 | 117.07 | 3418 | 3340 | 640.5 |
| B | 11 | 111 | 69425 | 103.17 | 3418 | 3340 | 640.5 |
| B | 14 | 111 | 59422 | 87.56 | 3418 | 3340 | 640.5 |
| C | 14 | 238 | 524048 | 677.61 | 3300 | 3322 | 768.5 |
| C | 0 | 10 | 109352 | 137.97 | 3300 | 3322 | 768.5 |
| C | 10 | 9 | 53618 | 65.45 | 3300 | 3322 | 768.5 |
| D | 12 | 218 | 7413153 | 9558.74 | 3186 | 3097 | 775.2 |
| D | 7 | 238 | 1432608 | 1844.02 | 3186 | 3097 | 775.2 |
| D | 1 | 52 | 1097992 | 1412.38 | 3186 | 3097 | 775.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

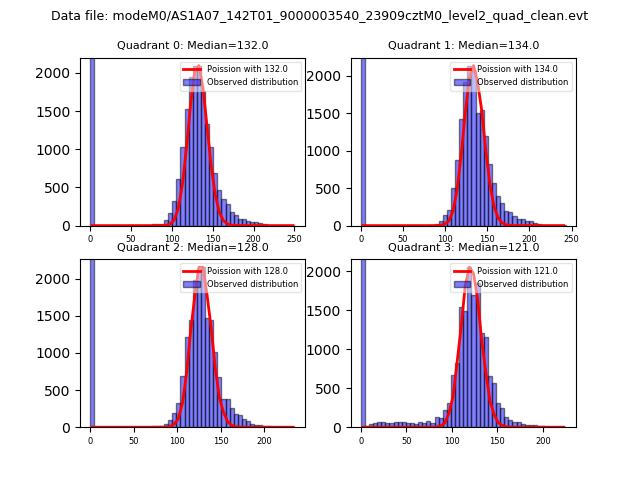

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

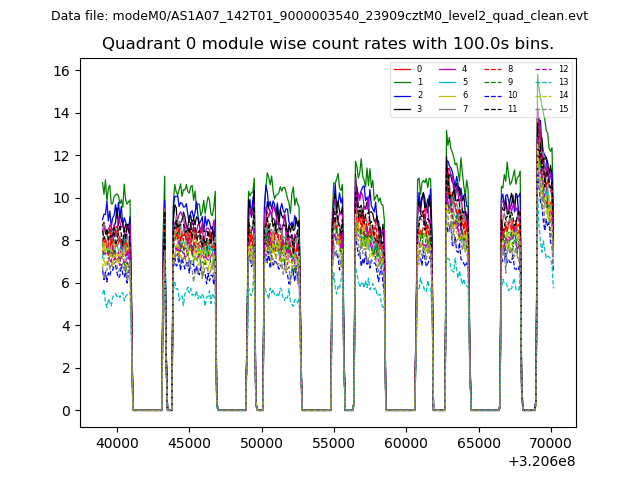

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

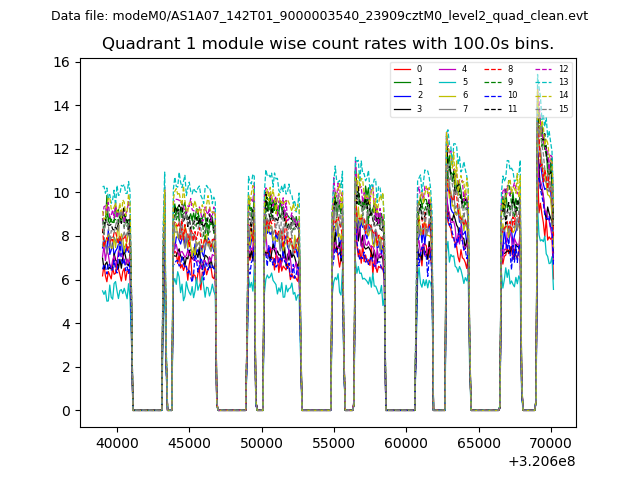

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

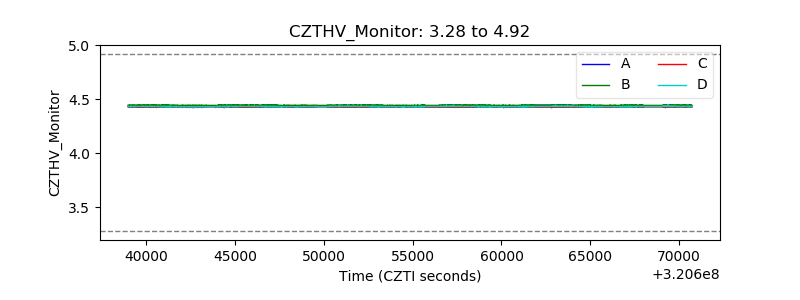

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

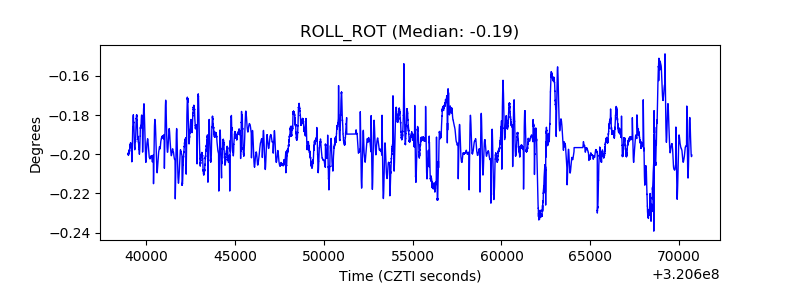

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

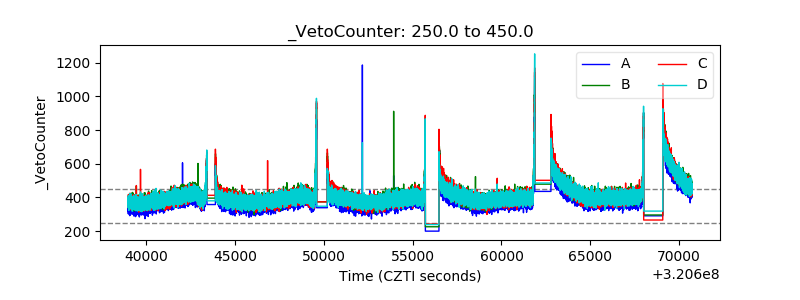

| Veto Counter |  |
