| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23913cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23913cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,100,480 | 69,505,920 |
| Size | 485.5 MB | 66.3 MB |
| Events in quadrant A | 3,454,737 | 431,522 |
| Events in quadrant B | 3,622,840 | 433,768 |
| Events in quadrant C | 3,447,767 | 404,538 |
| Events in quadrant D | 4,469,575 | 398,966 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14144 | 2 |
| B | 0 | 14655 | 2 |
| C | 0 | 13947 | 2 |
| D | 0 | 18068 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6238 | 122 | 1.955755% |
| B | 6238 | 164 | 2.629048% |
| C | 6237 | 190 | 3.046336% |
| D | 6237 | 126 | 2.020202% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6239 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7548 | 6239 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7547 | 6238 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7547 | 6238 | 17 | 17 | 0.23% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10563 | 54.71 | 896 | 882 | 176.9 |
| A | 0 | 226 | 7884 | 39.57 | 896 | 882 | 176.9 |
| A | 3 | 137 | 7025 | 34.72 | 896 | 882 | 176.9 |
| B | 15 | 33 | 114578 | 698.53 | 885 | 870 | 162.8 |
| B | 10 | 247 | 28632 | 170.55 | 885 | 870 | 162.8 |
| B | 12 | 111 | 18064 | 105.63 | 885 | 870 | 162.8 |
| C | 14 | 238 | 134796 | 703.3 | 831 | 842 | 190.5 |
| C | 0 | 10 | 69012 | 357.91 | 831 | 842 | 190.5 |
| C | 13 | 61 | 5914 | 26.63 | 831 | 842 | 190.5 |
| D | 8 | 195 | 978927 | 4755.05 | 855 | 832 | 205.7 |
| D | 12 | 218 | 102768 | 495.57 | 855 | 832 | 205.7 |
| D | 7 | 238 | 59222 | 283.87 | 855 | 832 | 205.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

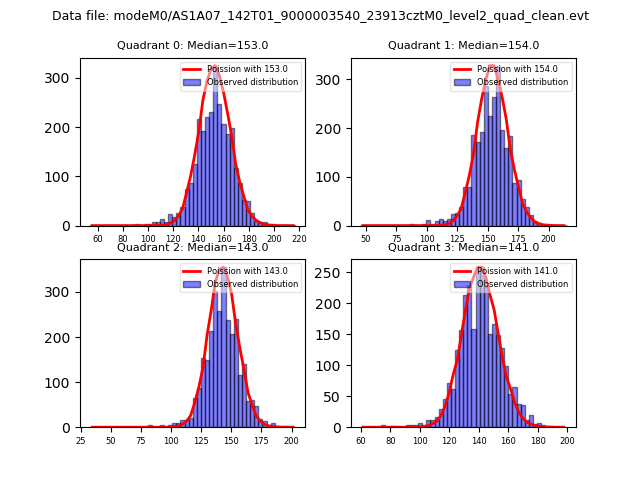

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

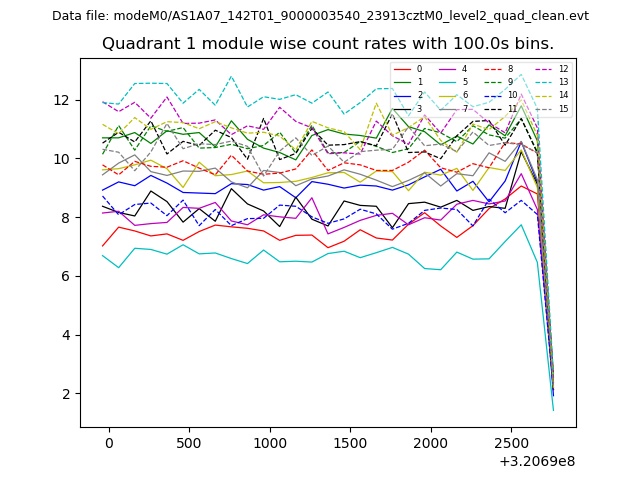

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

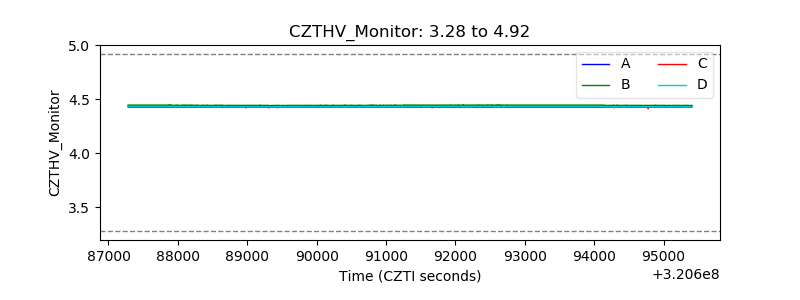

| CZT HV Monitor |  |
| D_VDD |  |

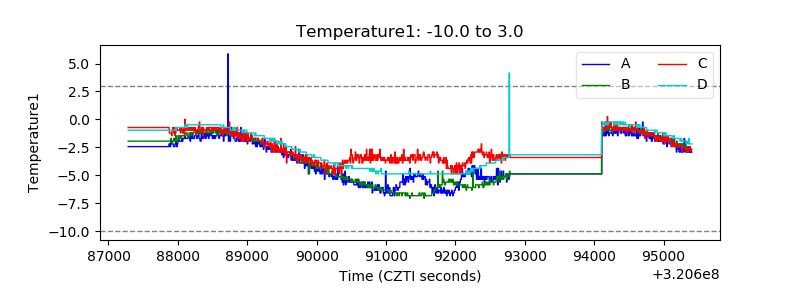

| Temperature 1 |  |

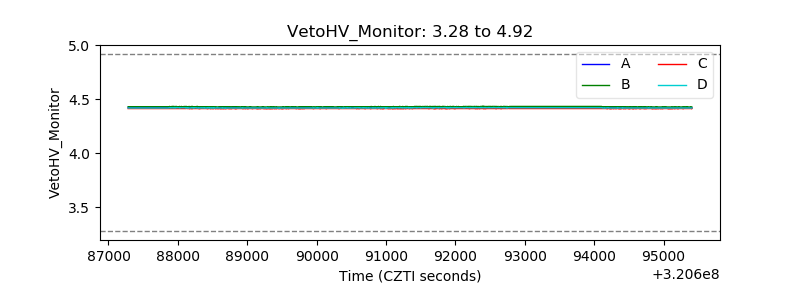

| Veto HV Monitor |  |
| Veto LLD |  |

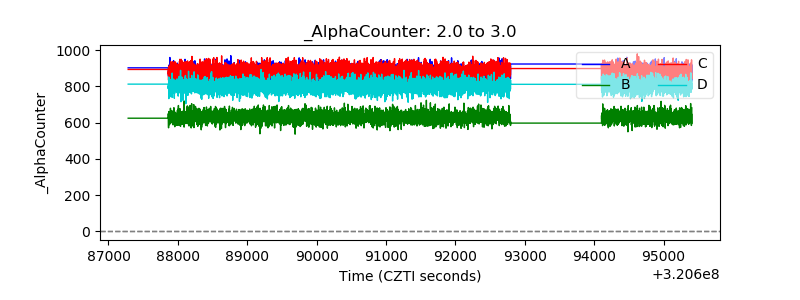

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

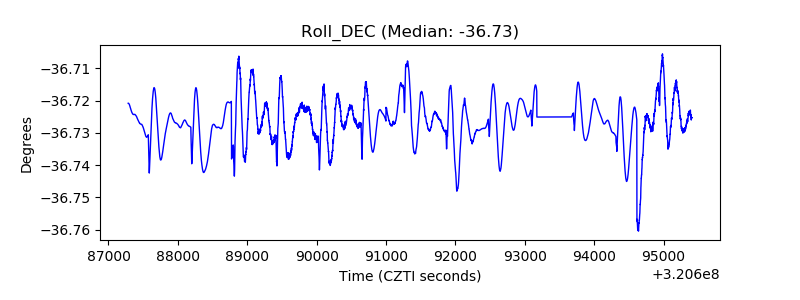

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
