| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23925cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23925cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,941,120 | 74,865,600 |
| Size | 508.3 MB | 71.4 MB |
| Events in quadrant A | 3,229,741 | 478,054 |
| Events in quadrant B | 3,290,696 | 482,669 |
| Events in quadrant C | 4,261,183 | 443,749 |
| Events in quadrant D | 4,946,851 | 437,876 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13270 | 4 |
| B | 0 | 13379 | 1 |
| C | 0 | 16780 | 3 |
| D | 0 | 19169 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6085 | 62 | 1.018899% |
| B | 6087 | 72 | 1.182849% |
| C | 6086 | 250 | 4.107788% |
| D | 6086 | 155 | 2.546829% |

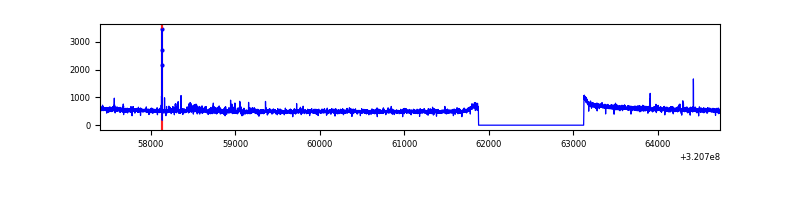

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7331 | 6087 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7332 | 6088 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7332 | 6088 | 88 | 88 | 1.20% | 1.45% |  |
| D | 7332 | 6088 | 77 | 77 | 1.05% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10719 | 59.95 | 837 | 821 | 165.1 |
| A | 0 | 226 | 7332 | 39.43 | 837 | 821 | 165.1 |
| A | 3 | 137 | 6684 | 35.51 | 837 | 821 | 165.1 |
| B | 0 | 189 | 47452 | 306.55 | 822 | 804 | 152.2 |
| B | 12 | 111 | 17479 | 109.58 | 822 | 804 | 152.2 |
| B | 4 | 52 | 15579 | 97.09 | 822 | 804 | 152.2 |
| C | 10 | 9 | 1056010 | 5951.3 | 776 | 786 | 177.3 |
| C | 14 | 238 | 126101 | 706.75 | 776 | 786 | 177.3 |
| C | 0 | 10 | 47365 | 262.7 | 776 | 786 | 177.3 |
| D | 8 | 195 | 1209293 | 6252.24 | 803 | 780 | 193.3 |
| D | 1 | 52 | 377683 | 1949.91 | 803 | 780 | 193.3 |
| D | 12 | 218 | 281797 | 1453.84 | 803 | 780 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

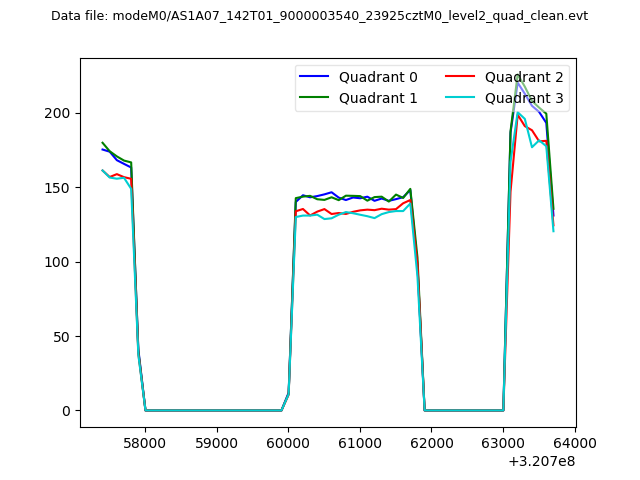

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

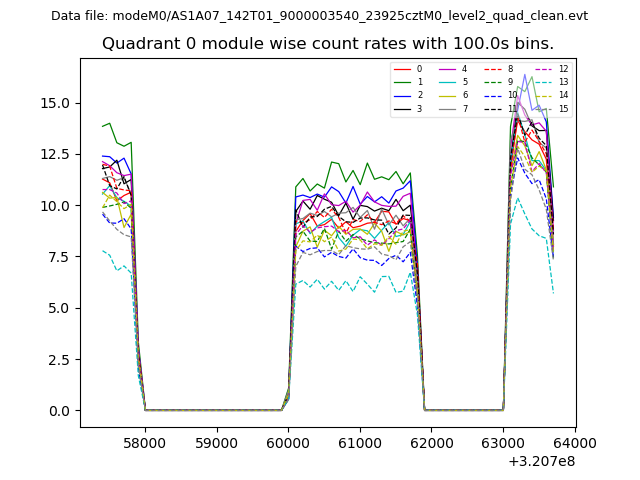

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

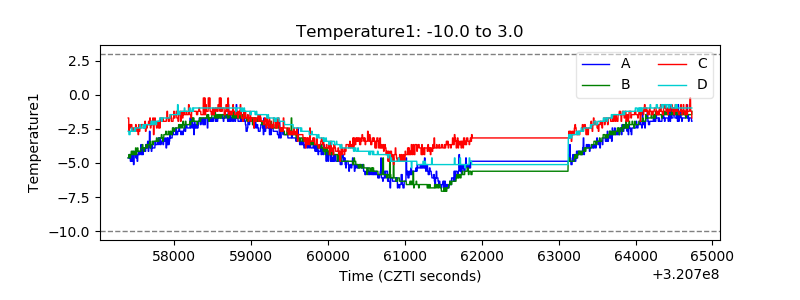

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

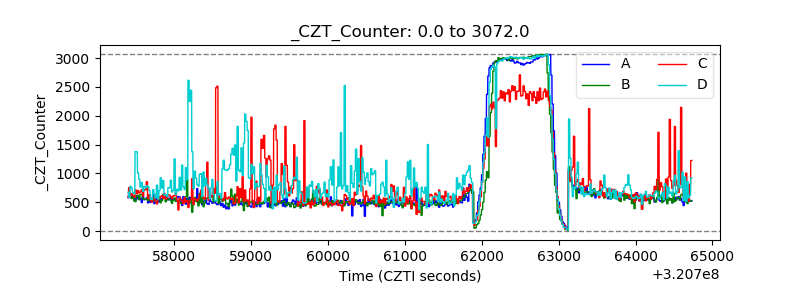

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

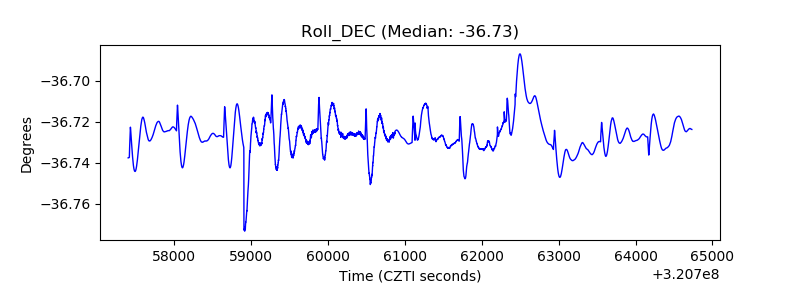

| _Roll_DEC |  |
| _Roll_RA |  |

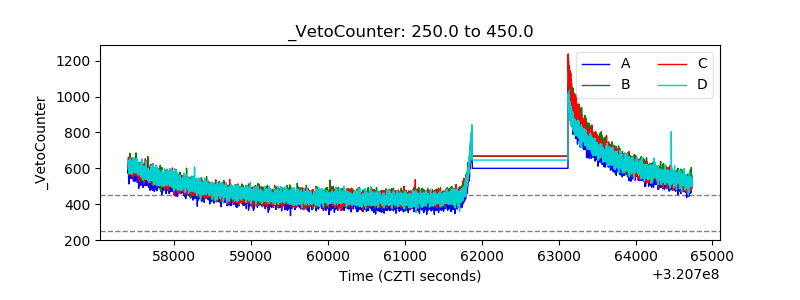

| Veto Counter |  |
