| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_142T01_9000003540_23932cztM0_level2.evt | modeM0/AS1A07_142T01_9000003540_23932cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,928,960 | 103,599,360 |
| Size | 586.4 MB | 98.8 MB |
| Events in quadrant A | 3,811,318 | 667,051 |
| Events in quadrant B | 4,135,039 | 673,305 |
| Events in quadrant C | 4,436,172 | 629,010 |
| Events in quadrant D | 5,704,206 | 617,793 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16438 | 2 |
| B | 0 | 17446 | 2 |
| C | 0 | 18159 | 2 |
| D | 0 | 22347 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7915 | 60 | 0.758054% |
| B | 7916 | 174 | 2.198080% |
| C | 7916 | 350 | 4.421425% |
| D | 7915 | 293 | 3.701832% |

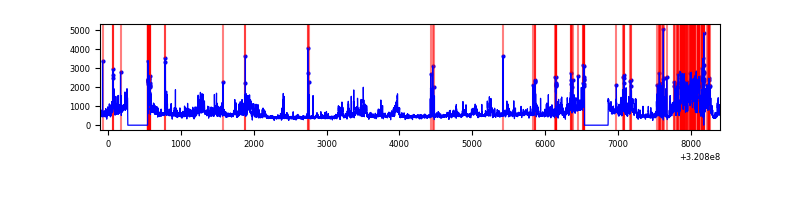

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8515 | 7917 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8516 | 7918 | 8 | 8 | 0.09% | 0.10% |  |
| C | 8516 | 7918 | 125 | 125 | 1.47% | 1.58% |  |
| D | 8515 | 7917 | 222 | 222 | 2.61% | 2.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 19276 | 92.06 | 982 | 960 | 199.0 |
| A | 13 | 254 | 14828 | 69.7 | 982 | 960 | 199.0 |
| A | 3 | 137 | 8676 | 38.78 | 982 | 960 | 199.0 |
| B | 15 | 33 | 233474 | 1251.44 | 978 | 952 | 185.8 |
| B | 0 | 189 | 49213 | 259.74 | 978 | 952 | 185.8 |
| B | 12 | 111 | 22323 | 115.02 | 978 | 952 | 185.8 |
| C | 10 | 9 | 648705 | 2940.49 | 930 | 934 | 220.3 |
| C | 14 | 238 | 145313 | 655.39 | 930 | 934 | 220.3 |
| C | 0 | 10 | 16280 | 69.66 | 930 | 934 | 220.3 |
| D | 8 | 195 | 1503253 | 6468.7 | 940 | 911 | 232.2 |
| D | 12 | 218 | 382114 | 1641.36 | 940 | 911 | 232.2 |
| D | 1 | 52 | 92685 | 395.16 | 940 | 911 | 232.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

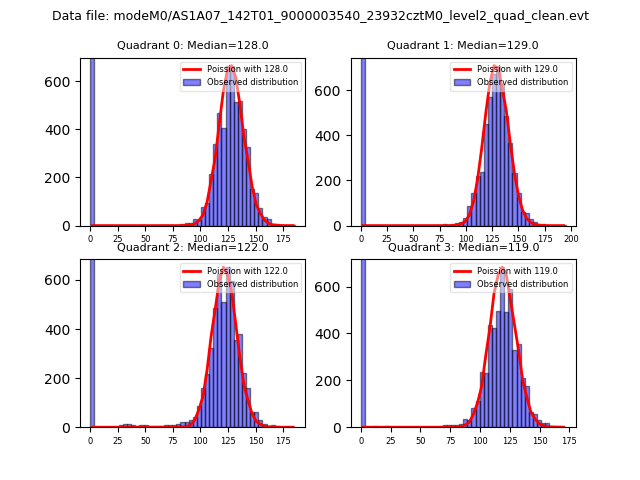

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

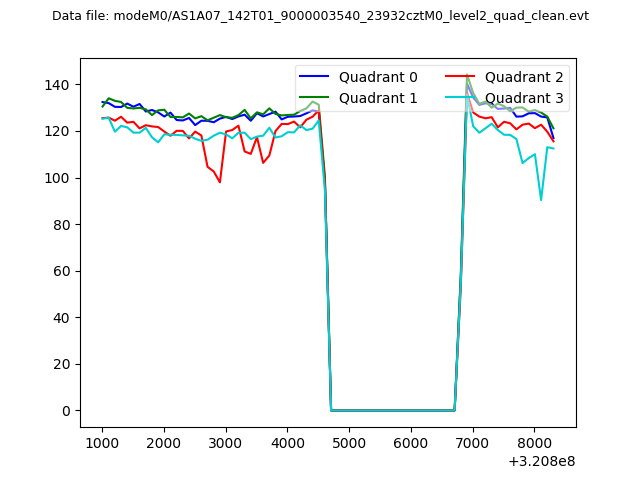

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

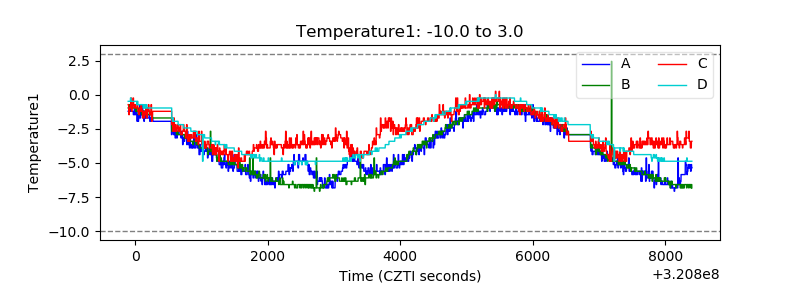

| Temperature 1 |  |
| Veto HV Monitor |  |

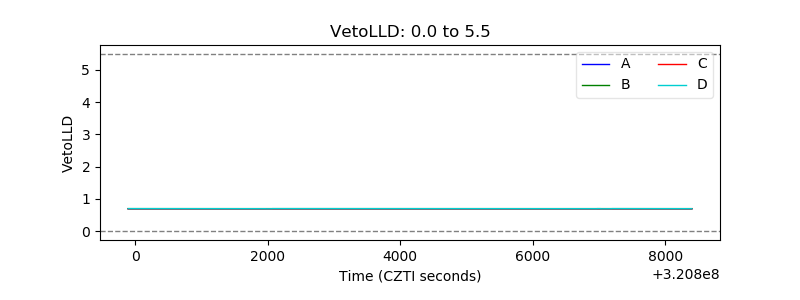

| Veto LLD |  |

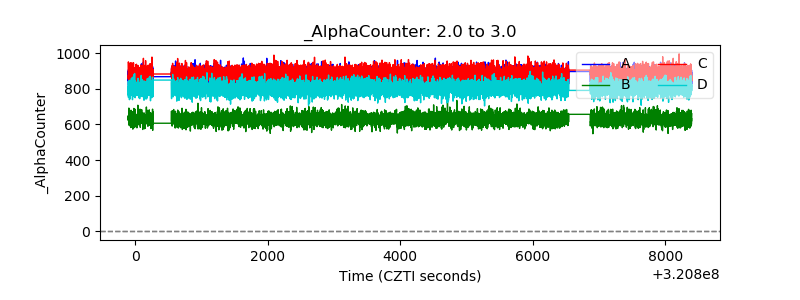

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

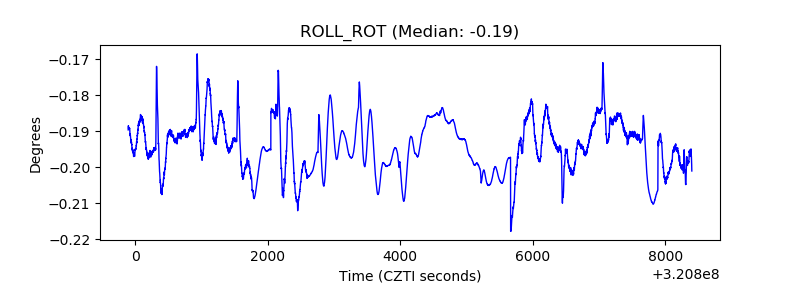

| _ROLL_ROT |  |
| _Roll_DEC |  |

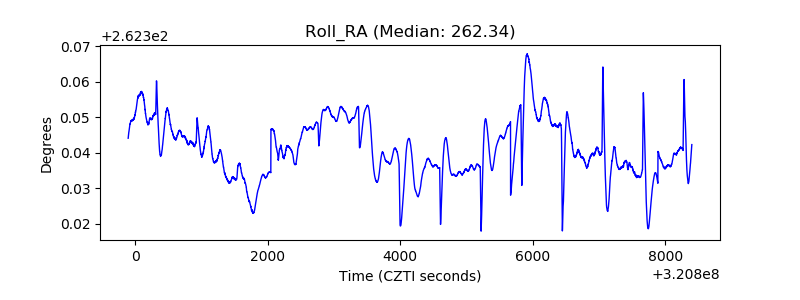

| _Roll_RA |  |
