| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23935cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23935cztM0_level2_quad_clean.evt |
| Size (bytes) | 160,539,840 | 37,163,520 |
| Size | 153.1 MB | 35.4 MB |
| Events in quadrant A | 915,327 | 252,670 |
| Events in quadrant B | 936,008 | 258,372 |
| Events in quadrant C | 936,001 | 248,285 |
| Events in quadrant D | 1,940,176 | 224,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3987 | 1 |
| B | 0 | 3995 | 1 |
| C | 0 | 4030 | 1 |
| D | 0 | 7080 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1935 | 20 | 1.033592% |
| B | 1935 | 22 | 1.136951% |
| C | 1935 | 30 | 1.550388% |
| D | 1935 | 343 | 17.726098% |

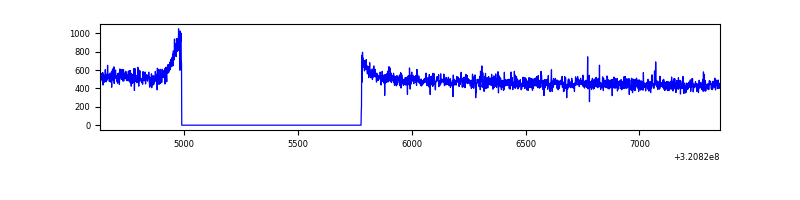

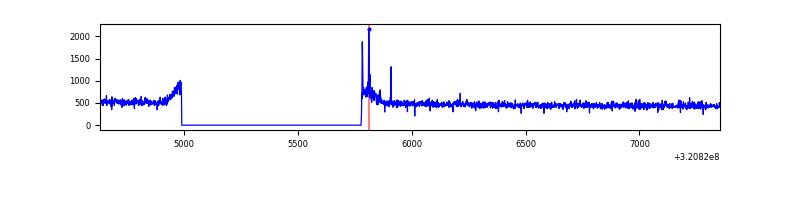

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2725 | 1936 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2725 | 1936 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2725 | 1936 | 1 | 1 | 0.04% | 0.05% |  |
| D | 2725 | 1936 | 140 | 140 | 5.14% | 7.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2406 | 43.71 | 237 | 233 | 49.7 |
| A | 3 | 137 | 2153 | 38.62 | 237 | 233 | 49.7 |
| A | 0 | 226 | 2051 | 36.57 | 237 | 233 | 49.7 |
| B | 12 | 111 | 5615 | 113.28 | 237 | 232 | 47.5 |
| B | 11 | 111 | 4982 | 99.96 | 237 | 232 | 47.5 |
| B | 14 | 111 | 4563 | 91.14 | 237 | 232 | 47.5 |
| C | 14 | 238 | 35726 | 651.43 | 225 | 227 | 54.5 |
| C | 0 | 10 | 18472 | 334.81 | 225 | 227 | 54.5 |
| C | 13 | 61 | 1606 | 25.31 | 225 | 227 | 54.5 |
| D | 12 | 218 | 457828 | 8646.74 | 211 | 204 | 52.9 |
| D | 8 | 195 | 149896 | 2828.41 | 211 | 204 | 52.9 |
| D | 11 | 176 | 145749 | 2750.05 | 211 | 204 | 52.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

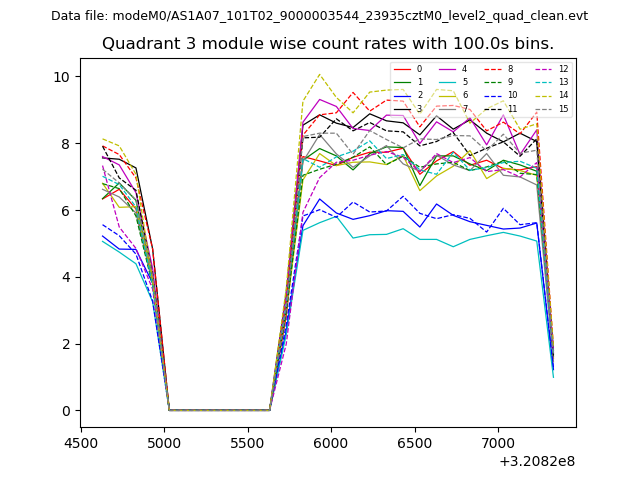

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

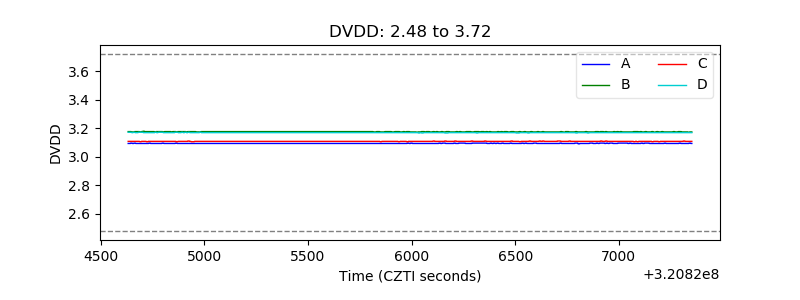

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

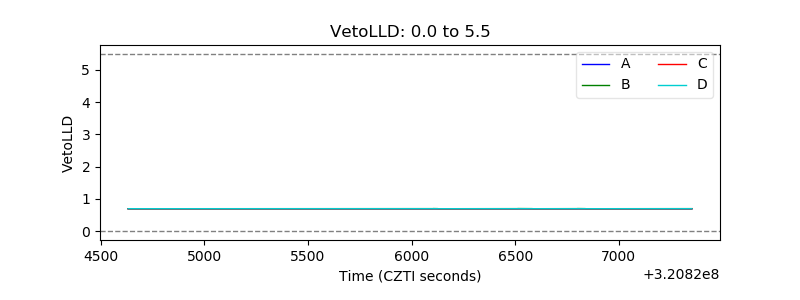

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

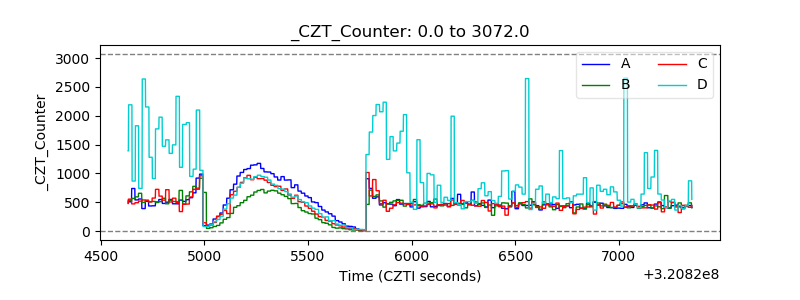

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

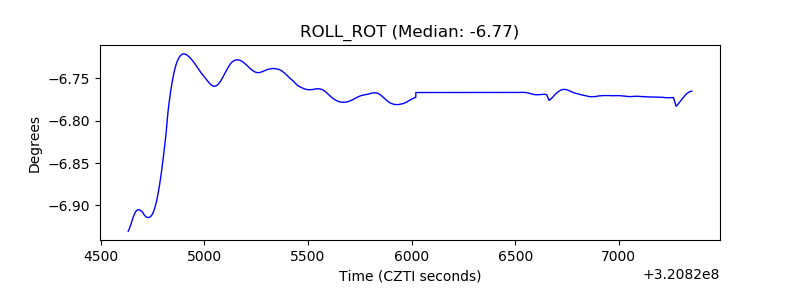

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

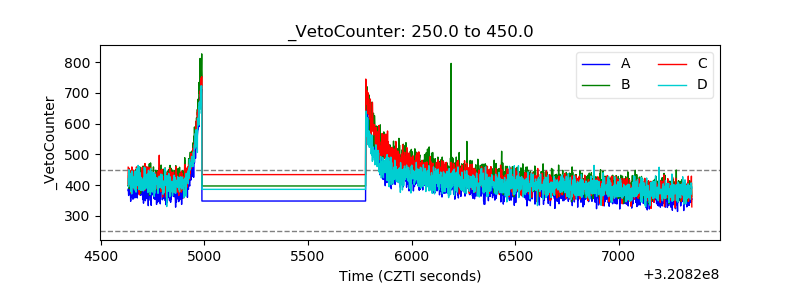

| Veto Counter |  |
