| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23940cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23940cztM0_level2_quad_clean.evt |
| Size (bytes) | 663,926,400 | 83,108,160 |
| Size | 633.2 MB | 79.3 MB |
| Events in quadrant A | 3,603,866 | 539,908 |
| Events in quadrant B | 3,657,671 | 546,033 |
| Events in quadrant C | 3,959,767 | 519,208 |
| Events in quadrant D | 8,444,671 | 456,306 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14824 | 2 |
| B | 0 | 14972 | 2 |
| C | 0 | 15921 | 2 |
| D | 0 | 29663 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6521 | 79 | 1.211471% |
| B | 6522 | 87 | 1.333947% |
| C | 6522 | 188 | 2.882551% |
| D | 6522 | 1930 | 29.592150% |

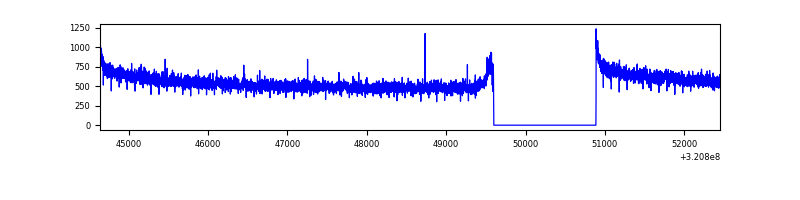

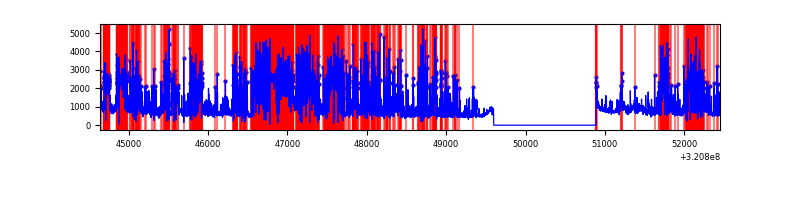

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7811 | 6522 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7812 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7812 | 6523 | 33 | 33 | 0.42% | 0.51% |  |
| D | 7812 | 6523 | 1425 | 1425 | 18.24% | 21.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 36880 | 196.5 | 926 | 913 | 183.0 |
| A | 13 | 254 | 9318 | 45.92 | 926 | 913 | 183.0 |
| A | 0 | 226 | 8047 | 38.98 | 926 | 913 | 183.0 |
| B | 0 | 189 | 48004 | 278.9 | 908 | 890 | 168.9 |
| B | 3 | 64 | 24142 | 137.65 | 908 | 890 | 168.9 |
| B | 12 | 111 | 19171 | 108.22 | 908 | 890 | 168.9 |
| C | 10 | 9 | 365376 | 1833.12 | 874 | 883 | 198.8 |
| C | 14 | 238 | 143451 | 717.01 | 874 | 883 | 198.8 |
| C | 0 | 10 | 42913 | 211.38 | 874 | 883 | 198.8 |
| D | 1 | 52 | 2721705 | 14602.17 | 769 | 748 | 186.3 |
| D | 12 | 218 | 2289207 | 12281.14 | 769 | 748 | 186.3 |
| D | 8 | 195 | 159702 | 853.04 | 769 | 748 | 186.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

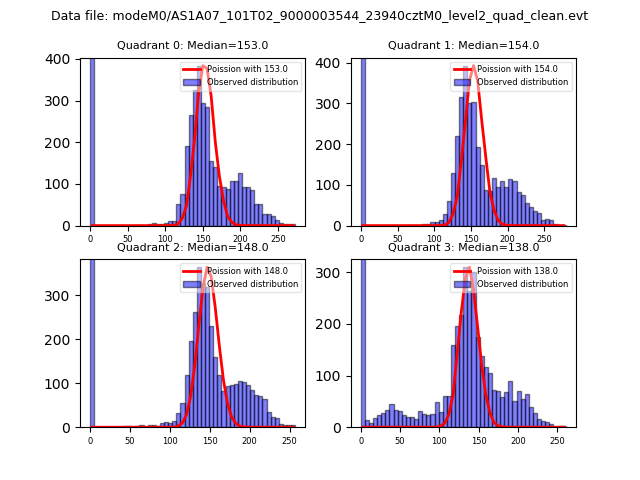

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

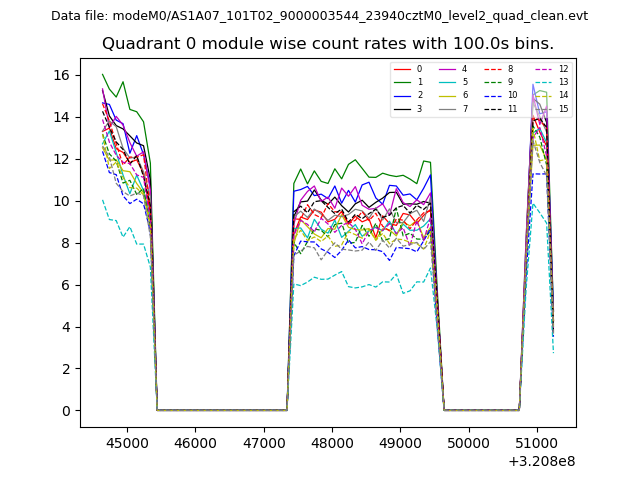

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

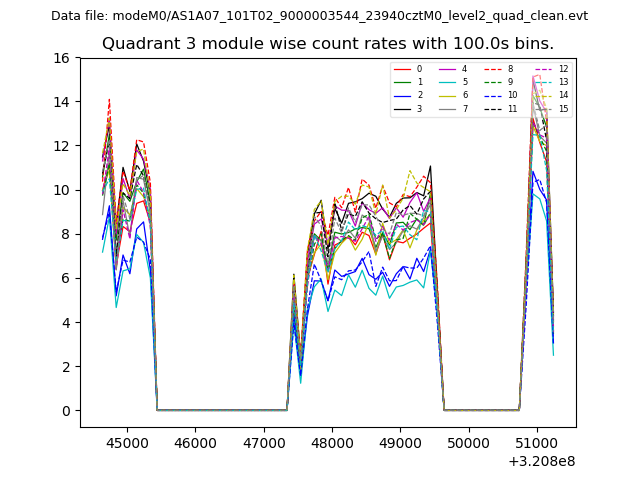

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

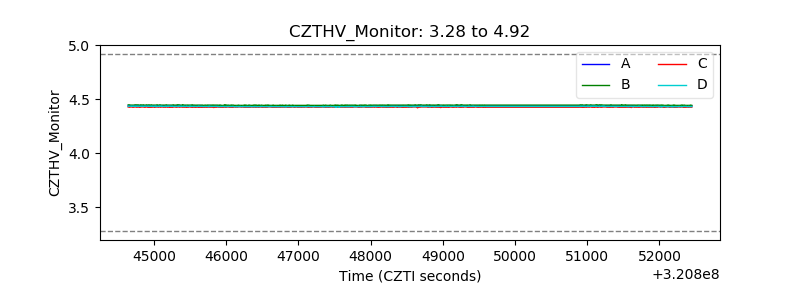

| CZT HV Monitor |  |
| D_VDD |  |

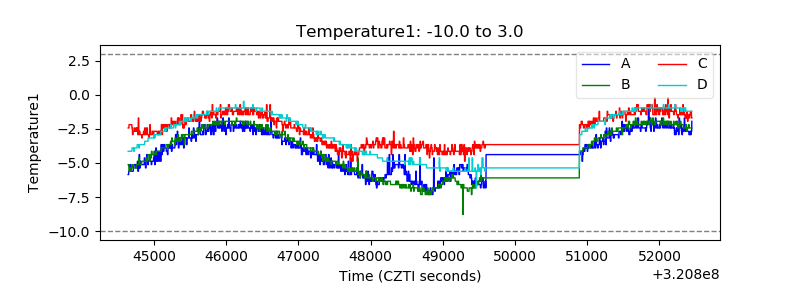

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

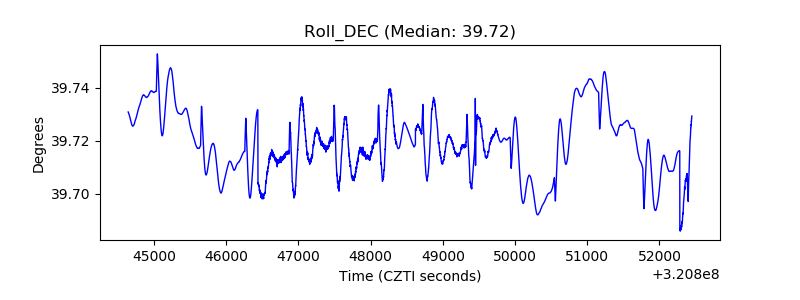

| _Roll_DEC |  |
