| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23941cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23941cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,302,720 | 71,778,240 |
| Size | 519.1 MB | 68.5 MB |
| Events in quadrant A | 3,513,015 | 437,373 |
| Events in quadrant B | 3,626,119 | 445,000 |
| Events in quadrant C | 3,668,118 | 429,015 |
| Events in quadrant D | 5,249,129 | 421,495 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14570 | 2 |
| B | 0 | 14862 | 2 |
| C | 0 | 15046 | 2 |
| D | 0 | 20004 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6307 | 93 | 1.474552% |
| B | 6307 | 94 | 1.490407% |
| C | 6307 | 142 | 2.251467% |
| D | 6307 | 624 | 9.893769% |

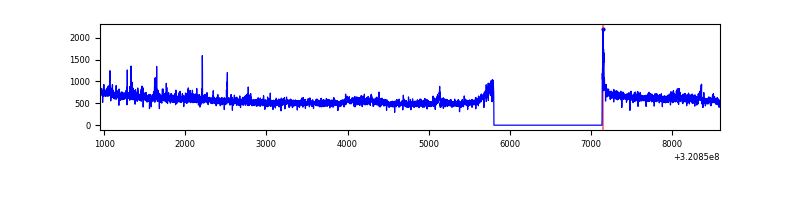

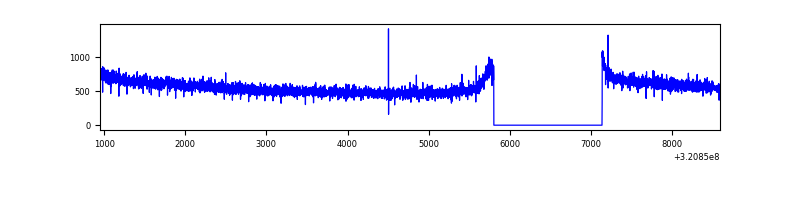

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6308 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7642 | 6308 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7642 | 6308 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7642 | 6308 | 383 | 383 | 5.01% | 6.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 17559 | 93.81 | 907 | 895 | 177.6 |
| A | 13 | 254 | 9239 | 46.97 | 907 | 895 | 177.6 |
| A | 0 | 226 | 7955 | 39.74 | 907 | 895 | 177.6 |
| B | 0 | 189 | 65021 | 389.59 | 893 | 876 | 164.6 |
| B | 0 | 197 | 23603 | 138.03 | 893 | 876 | 164.6 |
| B | 3 | 64 | 21507 | 125.3 | 893 | 876 | 164.6 |
| C | 14 | 238 | 141194 | 719.15 | 866 | 874 | 195.1 |
| C | 10 | 9 | 128015 | 651.61 | 866 | 874 | 195.1 |
| C | 0 | 10 | 18306 | 89.34 | 866 | 874 | 195.1 |
| D | 12 | 218 | 1005501 | 4906.8 | 855 | 833 | 204.7 |
| D | 1 | 52 | 409550 | 1996.18 | 855 | 833 | 204.7 |
| D | 8 | 195 | 303250 | 1477.01 | 855 | 833 | 204.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

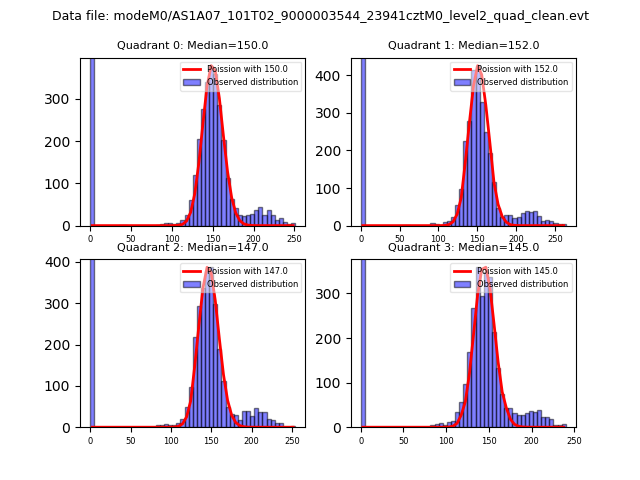

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

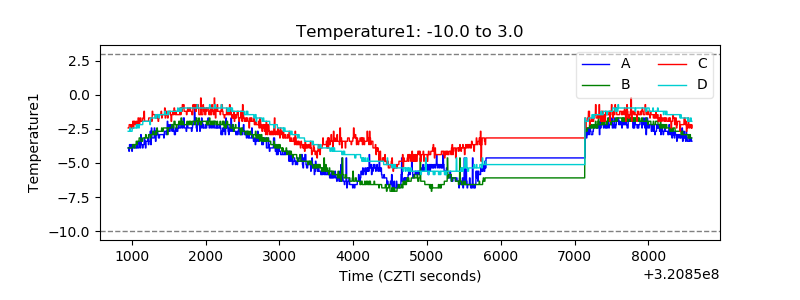

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

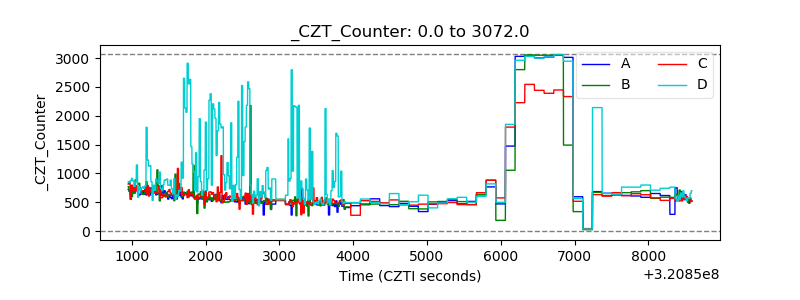

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

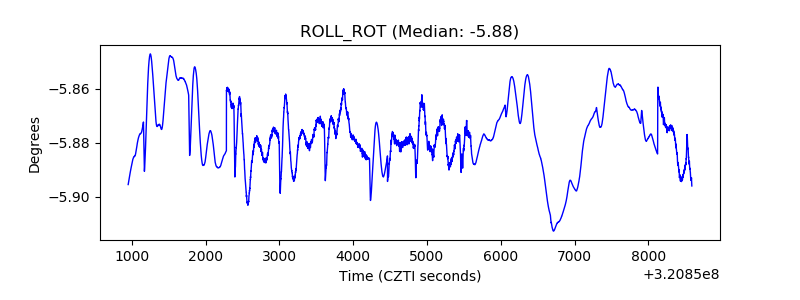

| _ROLL_ROT |  |

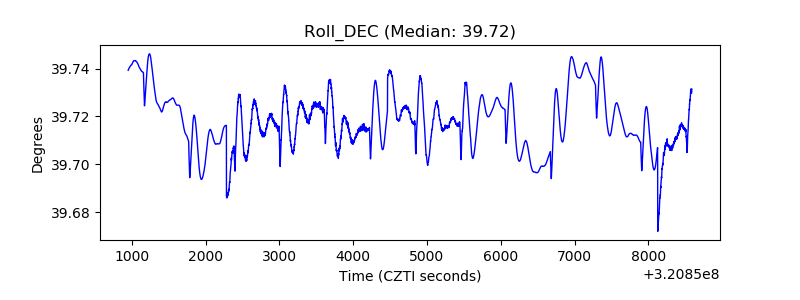

| _Roll_DEC |  |
