| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23942cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23942cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,499,200 | 71,824,320 |
| Size | 492.6 MB | 68.5 MB |
| Events in quadrant A | 3,448,411 | 436,459 |
| Events in quadrant B | 3,570,894 | 443,323 |
| Events in quadrant C | 3,727,123 | 430,574 |
| Events in quadrant D | 4,467,868 | 424,116 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14302 | 2 |
| B | 0 | 14629 | 2 |
| C | 0 | 15182 | 2 |
| D | 0 | 17762 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6302 | 138 | 2.189781% |
| B | 6302 | 155 | 2.459537% |
| C | 6302 | 221 | 3.506823% |
| D | 6302 | 270 | 4.284354% |

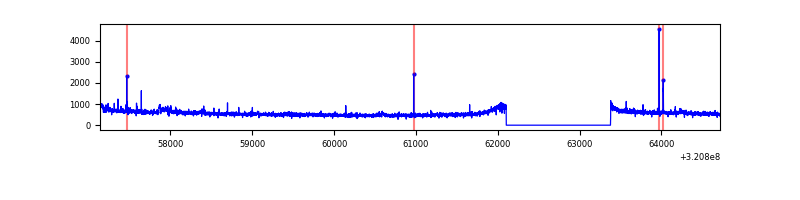

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 6303 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7577 | 6303 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7577 | 6303 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7577 | 6303 | 98 | 98 | 1.29% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9285 | 47.6 | 895 | 881 | 176.6 |
| A | 0 | 226 | 7839 | 39.41 | 895 | 881 | 176.6 |
| A | 3 | 137 | 7227 | 35.94 | 895 | 881 | 176.6 |
| B | 0 | 189 | 60570 | 363.73 | 884 | 867 | 164.1 |
| B | 0 | 197 | 26202 | 154.35 | 884 | 867 | 164.1 |
| B | 12 | 111 | 18755 | 108.98 | 884 | 867 | 164.1 |
| C | 10 | 9 | 190981 | 968.64 | 861 | 869 | 196.3 |
| C | 14 | 238 | 137326 | 695.26 | 861 | 869 | 196.3 |
| C | 0 | 10 | 40978 | 204.36 | 861 | 869 | 196.3 |
| D | 8 | 195 | 577474 | 2761.23 | 867 | 845 | 208.8 |
| D | 12 | 218 | 323101 | 1543.14 | 867 | 845 | 208.8 |
| D | 1 | 52 | 127383 | 605.94 | 867 | 845 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

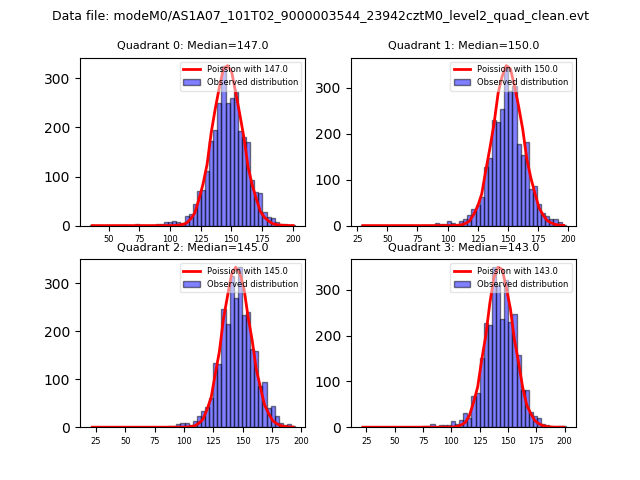

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

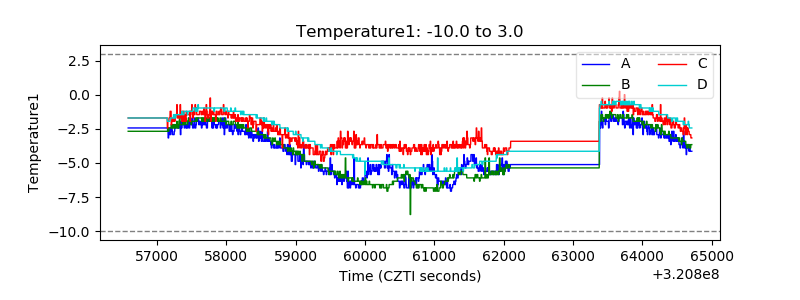

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

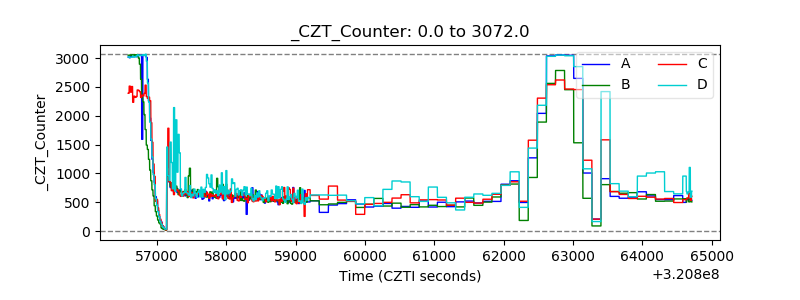

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

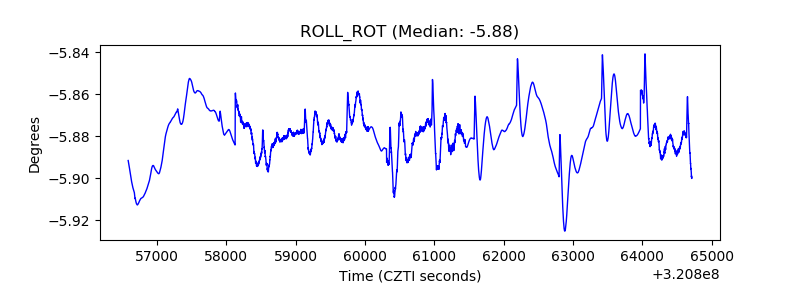

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
