| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23944cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23944cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,562,880 | 92,589,120 |
| Size | 590.9 MB | 88.3 MB |
| Events in quadrant A | 3,367,989 | 598,146 |
| Events in quadrant B | 4,009,953 | 603,122 |
| Events in quadrant C | 3,459,436 | 588,837 |
| Events in quadrant D | 7,459,392 | 533,772 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14345 | 2 |
| B | 0 | 16447 | 2 |
| C | 0 | 14469 | 2 |
| D | 0 | 26934 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6886 | 65 | 0.943944% |
| B | 6885 | 171 | 2.483660% |
| C | 6885 | 137 | 1.989833% |
| D | 6885 | 1568 | 22.774147% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

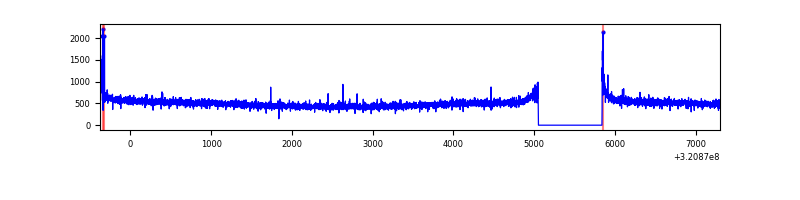

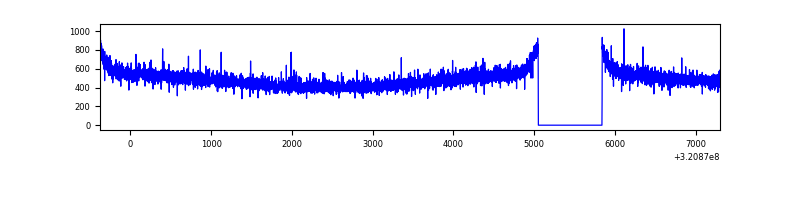

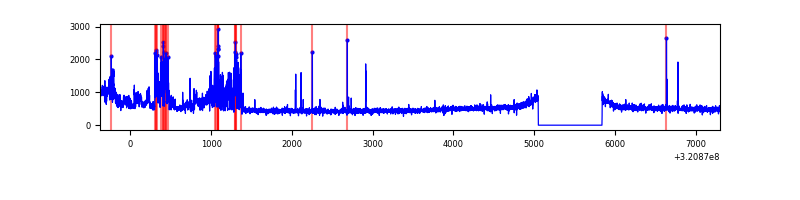

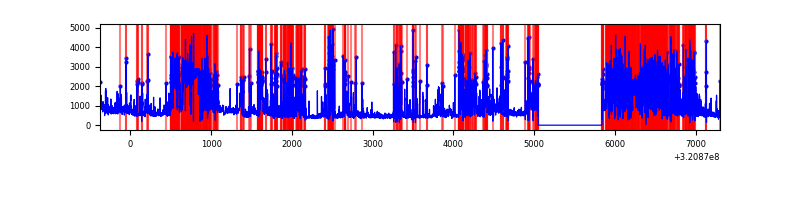

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7676 | 6887 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7675 | 6886 | 28 | 28 | 0.36% | 0.41% |  |
| C | 7675 | 6886 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7675 | 6885 | 1077 | 1077 | 14.03% | 15.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11195 | 58.87 | 873 | 856 | 175.6 |
| A | 3 | 137 | 7616 | 38.49 | 873 | 856 | 175.6 |
| A | 0 | 226 | 7477 | 37.7 | 873 | 856 | 175.6 |
| B | 0 | 197 | 559133 | 3413.75 | 865 | 842 | 163.5 |
| B | 0 | 189 | 40141 | 240.3 | 865 | 842 | 163.5 |
| B | 12 | 111 | 19441 | 113.73 | 865 | 842 | 163.5 |
| C | 14 | 238 | 133674 | 680.78 | 841 | 848 | 195.1 |
| C | 0 | 10 | 35257 | 176.36 | 841 | 848 | 195.1 |
| C | 7 | 247 | 6986 | 31.46 | 841 | 848 | 195.1 |
| D | 12 | 218 | 3619363 | 20009.07 | 752 | 732 | 180.8 |
| D | 8 | 195 | 333471 | 1839.87 | 752 | 732 | 180.8 |
| D | 1 | 52 | 220903 | 1217.43 | 752 | 732 | 180.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

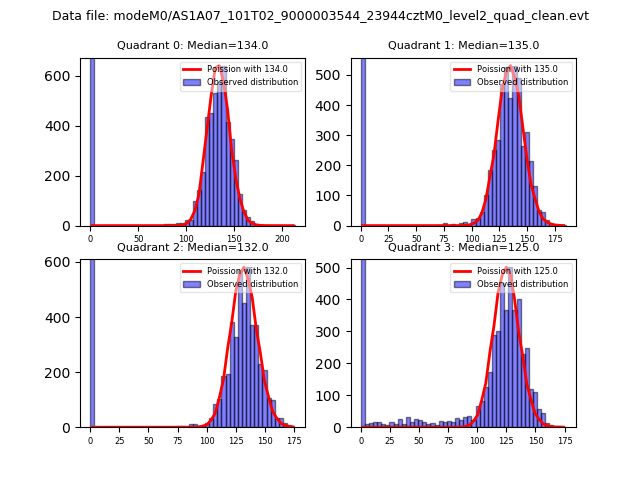

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

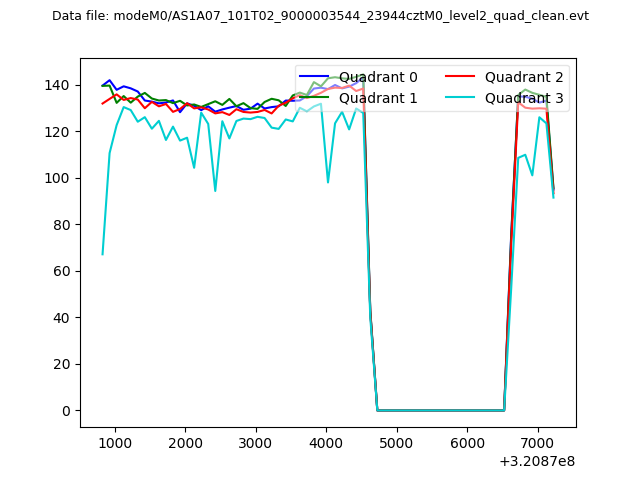

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

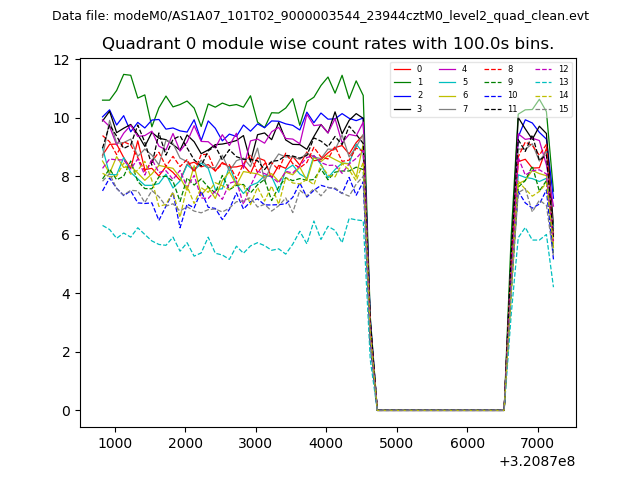

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

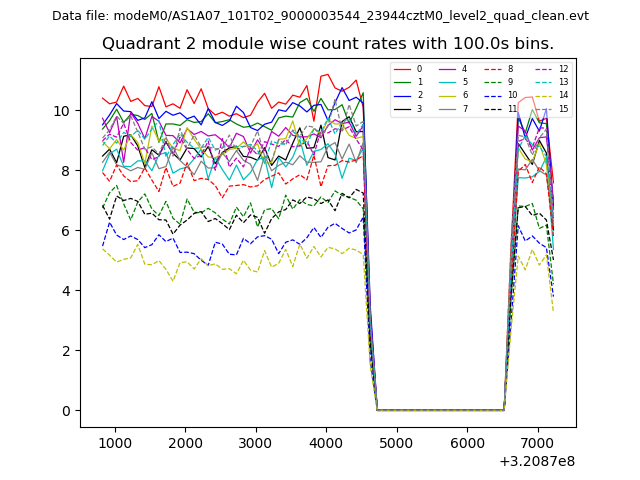

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

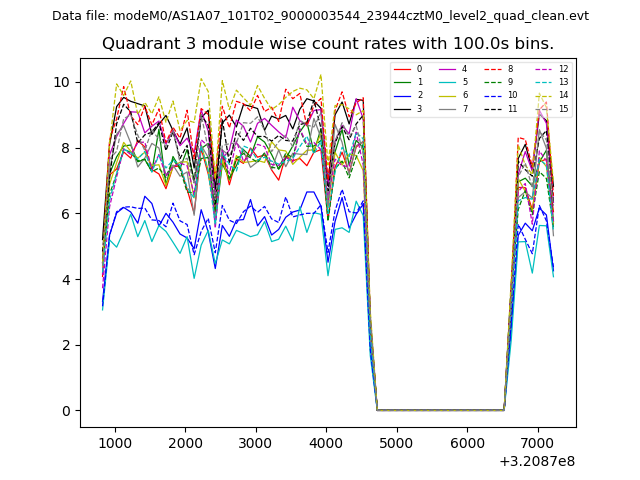

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

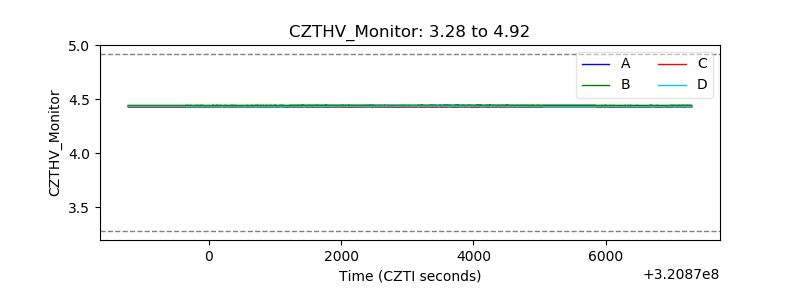

| CZT HV Monitor |  |

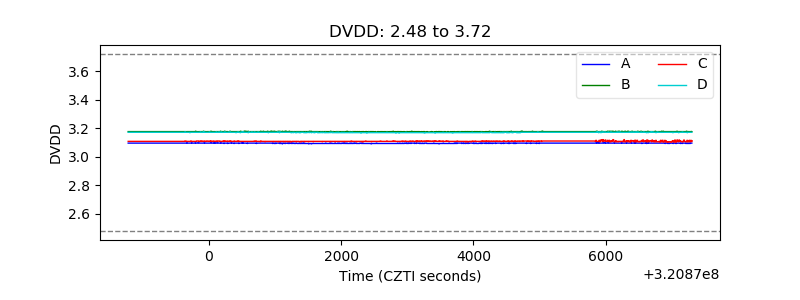

| D_VDD |  |

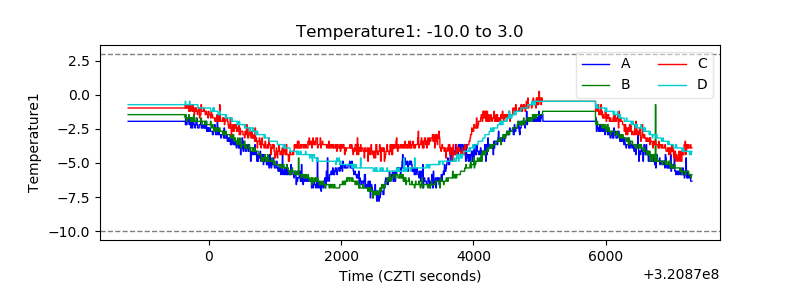

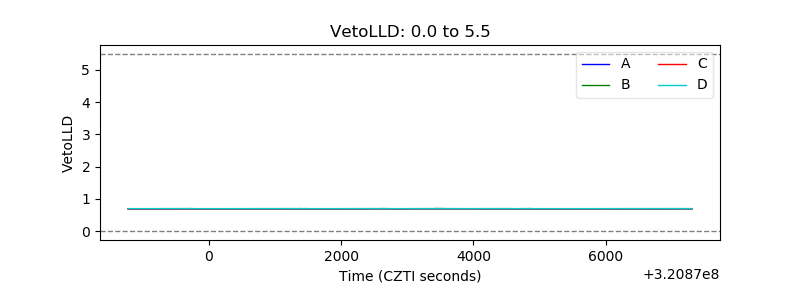

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

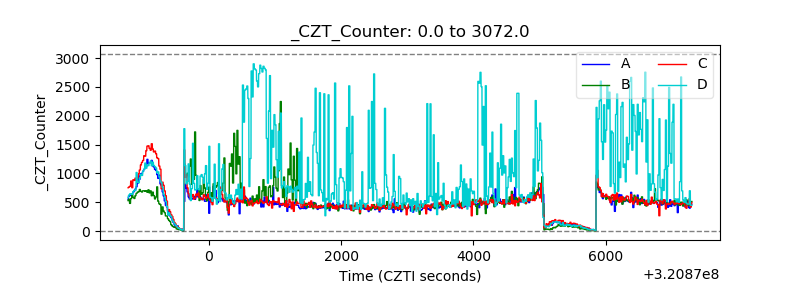

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

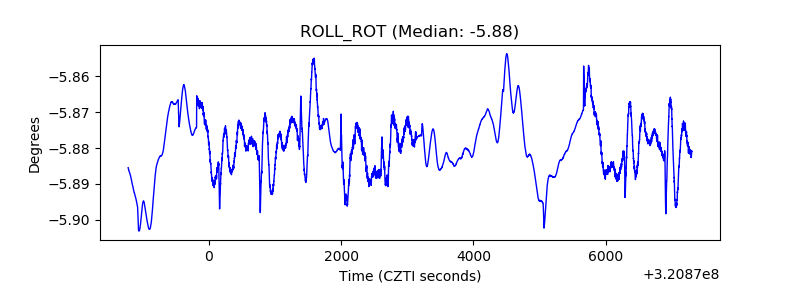

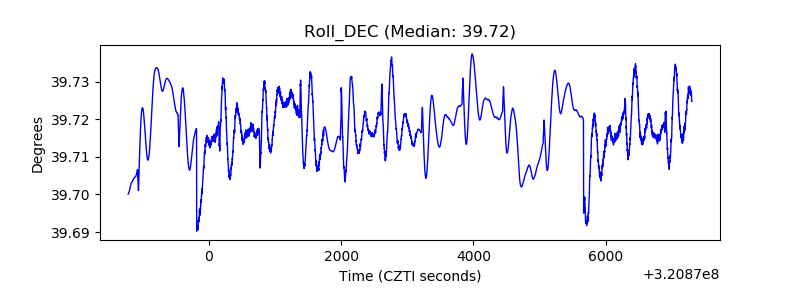

| _ROLL_ROT |  |
| _Roll_DEC |  |

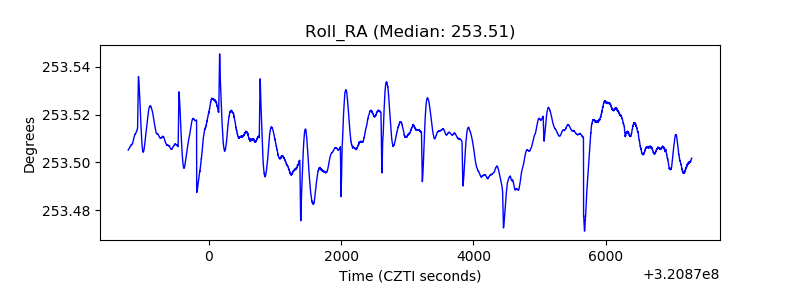

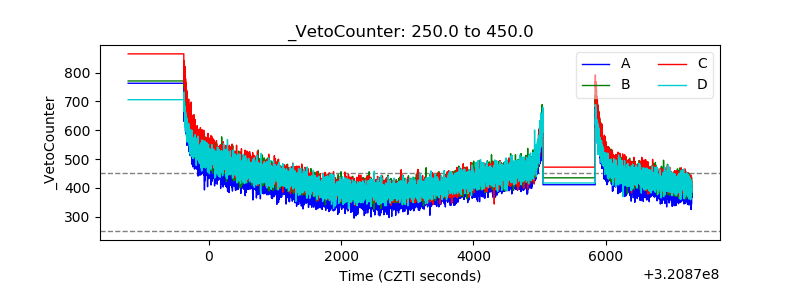

| _Roll_RA |  |
| Veto Counter |  |
