| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23950cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23950cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,745,600 | 97,994,880 |
| Size | 469.0 MB | 93.5 MB |
| Events in quadrant A | 3,292,767 | 629,501 |
| Events in quadrant B | 3,635,330 | 638,387 |
| Events in quadrant C | 3,219,570 | 621,051 |
| Events in quadrant D | 4,276,686 | 598,302 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14302 | 2 |
| B | 0 | 15201 | 2 |
| C | 0 | 14032 | 2 |
| D | 0 | 17384 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6894 | 22 | 0.319118% |
| B | 6894 | 124 | 1.798666% |
| C | 6894 | 53 | 0.768784% |
| D | 6894 | 185 | 2.683493% |

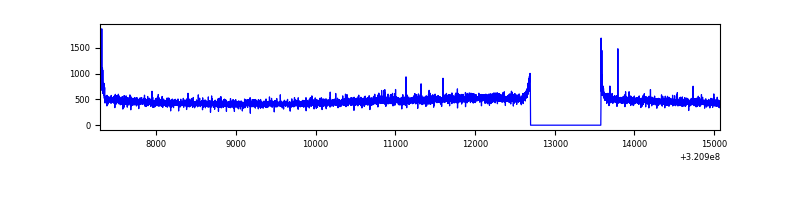

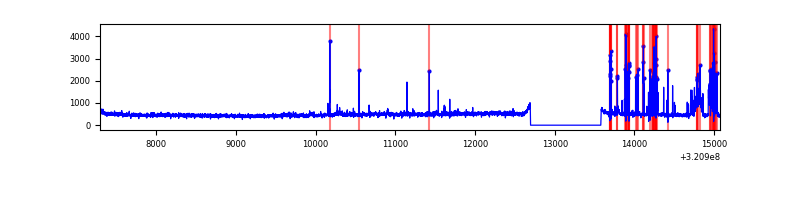

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7779 | 6895 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7779 | 6895 | 64 | 64 | 0.82% | 0.93% |  |
| C | 7779 | 6895 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7779 | 6895 | 116 | 116 | 1.49% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 99032 | 598.44 | 824 | 807 | 164.1 |
| A | 2 | 79 | 18169 | 105.78 | 824 | 807 | 164.1 |
| A | 13 | 254 | 9896 | 55.37 | 824 | 807 | 164.1 |
| B | 3 | 64 | 372953 | 2373.39 | 814 | 794 | 156.8 |
| B | 0 | 189 | 41006 | 256.45 | 814 | 794 | 156.8 |
| B | 12 | 111 | 19151 | 117.07 | 814 | 794 | 156.8 |
| C | 14 | 238 | 126597 | 689.41 | 787 | 793 | 182.5 |
| C | 0 | 10 | 21110 | 111.34 | 787 | 793 | 182.5 |
| C | 13 | 61 | 5486 | 25.72 | 787 | 793 | 182.5 |
| D | 12 | 218 | 775258 | 4047.27 | 789 | 765 | 191.4 |
| D | 8 | 195 | 263404 | 1372.47 | 789 | 765 | 191.4 |
| D | 10 | 103 | 97247 | 504.19 | 789 | 765 | 191.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

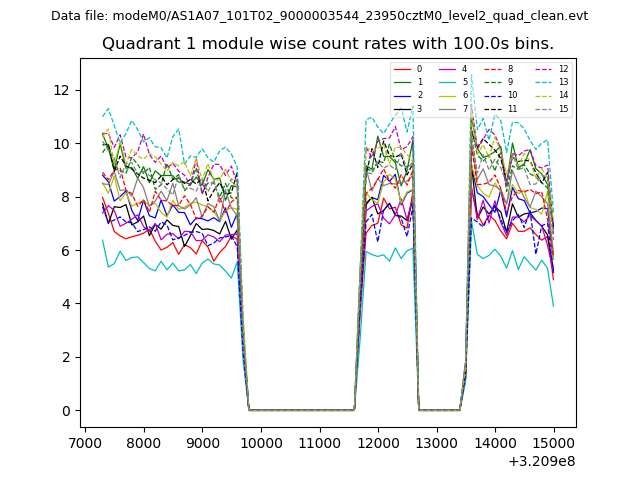

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

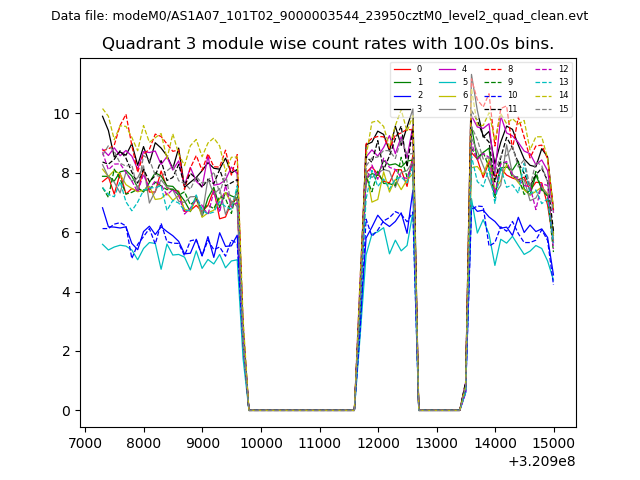

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

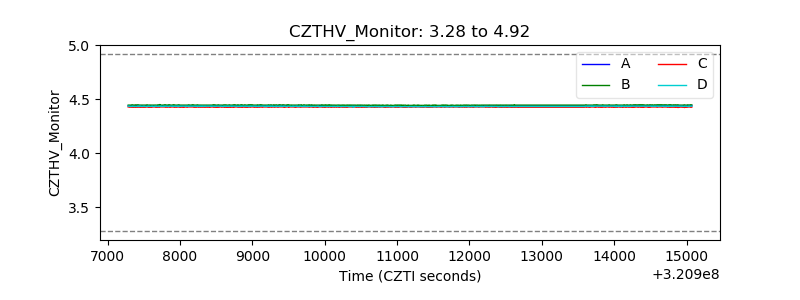

| CZT HV Monitor |  |
| D_VDD |  |

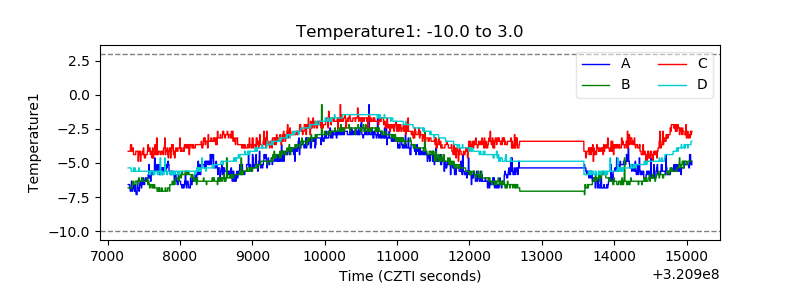

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

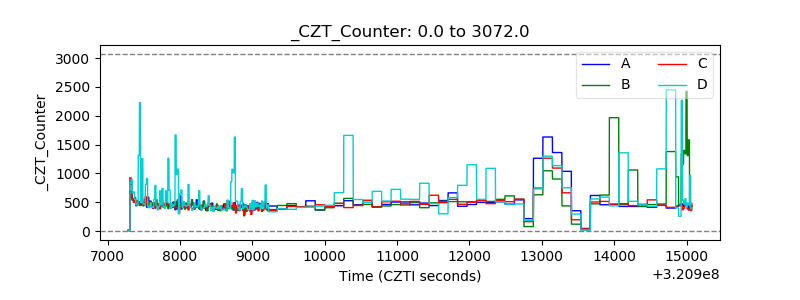

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

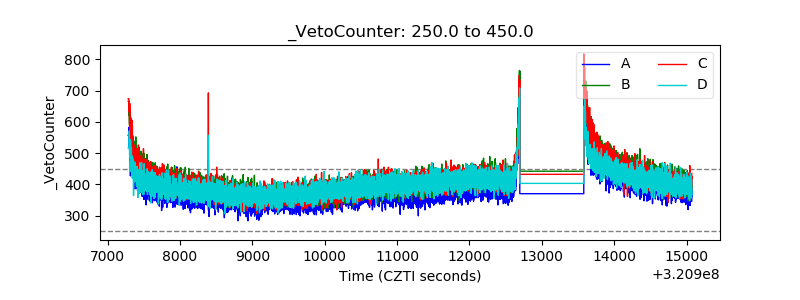

| Veto Counter |  |
