| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_101T02_9000003544_23955cztM0_level2.evt | modeM0/AS1A07_101T02_9000003544_23955cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,749,760 | 71,660,160 |
| Size | 595.8 MB | 68.3 MB |
| Events in quadrant A | 3,409,970 | 463,058 |
| Events in quadrant B | 3,740,781 | 466,918 |
| Events in quadrant C | 3,447,408 | 449,690 |
| Events in quadrant D | 7,901,057 | 355,071 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14003 | 1 |
| B | 0 | 15132 | 1 |
| C | 0 | 14014 | 2 |
| D | 0 | 27937 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6229 | 100 | 1.605394% |
| B | 6230 | 137 | 2.199037% |
| C | 6229 | 135 | 2.167282% |
| D | 6229 | 1575 | 25.284957% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

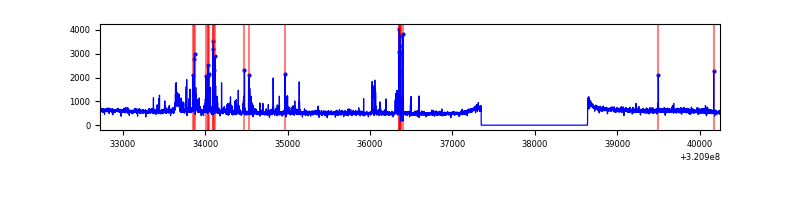

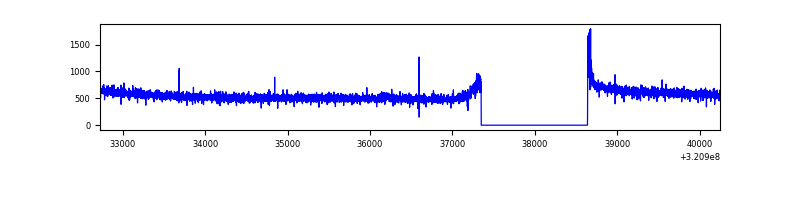

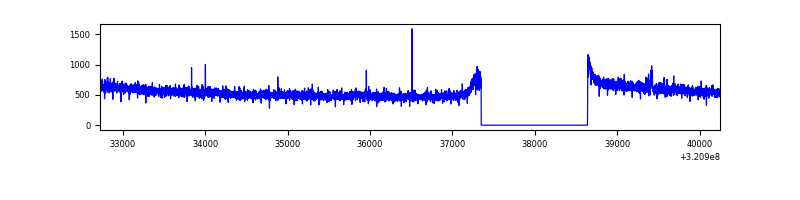

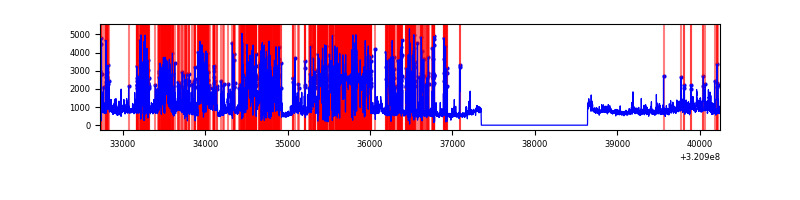

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 6230 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7520 | 6231 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7519 | 6230 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7519 | 6230 | 1181 | 1181 | 15.71% | 18.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10140 | 53.2 | 880 | 865 | 174.3 |
| A | 0 | 226 | 7697 | 39.19 | 880 | 865 | 174.3 |
| A | 15 | 174 | 7097 | 35.75 | 880 | 865 | 174.3 |
| B | 3 | 64 | 301302 | 1886.54 | 862 | 845 | 159.3 |
| B | 0 | 189 | 35253 | 216.04 | 862 | 845 | 159.3 |
| B | 12 | 111 | 18376 | 110.08 | 862 | 845 | 159.3 |
| C | 14 | 238 | 135619 | 705.28 | 838 | 845 | 191.1 |
| C | 0 | 239 | 19416 | 97.18 | 838 | 845 | 191.1 |
| C | 0 | 10 | 13285 | 65.1 | 838 | 845 | 191.1 |
| D | 12 | 218 | 3693619 | 20889.97 | 744 | 724 | 176.8 |
| D | 8 | 195 | 785025 | 4436.64 | 744 | 724 | 176.8 |
| D | 2 | 82 | 591545 | 3342.16 | 744 | 724 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

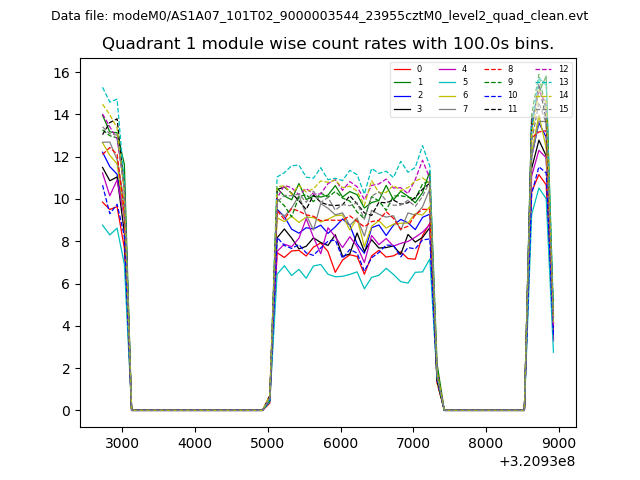

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
