| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T02_9000003546_23964cztM0_level2.evt | modeM0/AS1A07_001T02_9000003546_23964cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,117,736,640 | 241,727,040 |
| Size | 1.0 GB | 230.5 MB |
| Events in quadrant A | 6,125,718 | 1,687,069 |
| Events in quadrant B | 6,378,639 | 1,709,543 |
| Events in quadrant C | 6,297,816 | 1,630,315 |
| Events in quadrant D | 14,152,084 | 1,377,835 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26913 | 3 |
| B | 0 | 27286 | 3 |
| C | 0 | 27234 | 3 |
| D | 0 | 50969 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 274 | 0 |
| B | 0 | 274 | 0 |
| C | 0 | 274 | 0 |
| D | 0 | 274 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13246 | 106 | 0.800242% |
| B | 13246 | 161 | 1.215461% |
| C | 13246 | 241 | 1.819417% |
| D | 13246 | 3002 | 22.663446% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15166 | 13249 | 0 | 0 | 0.00% | 0.00% |  |
| B | 15166 | 13249 | 4 | 4 | 0.03% | 0.03% |  |
| C | 15166 | 13249 | 3 | 3 | 0.02% | 0.02% |  |
| D | 15166 | 13249 | 1941 | 1941 | 12.80% | 14.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 21358 | 62.65 | 1586 | 1551 | 316.1 |
| A | 3 | 137 | 13984 | 39.33 | 1586 | 1551 | 316.1 |
| A | 0 | 226 | 13577 | 38.04 | 1586 | 1551 | 316.1 |
| B | 0 | 197 | 83876 | 275.95 | 1582 | 1544 | 298.4 |
| B | 12 | 111 | 36958 | 118.7 | 1582 | 1544 | 298.4 |
| B | 6 | 36 | 35833 | 114.93 | 1582 | 1544 | 298.4 |
| C | 14 | 238 | 242937 | 681.56 | 1520 | 1524 | 354.2 |
| C | 0 | 10 | 55824 | 153.3 | 1520 | 1524 | 354.2 |
| C | 7 | 247 | 38739 | 105.07 | 1520 | 1524 | 354.2 |
| D | 12 | 218 | 7429016 | 22442.0 | 1361 | 1315 | 331.0 |
| D | 2 | 82 | 858153 | 2588.84 | 1361 | 1315 | 331.0 |
| D | 8 | 195 | 341947 | 1029.18 | 1361 | 1315 | 331.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

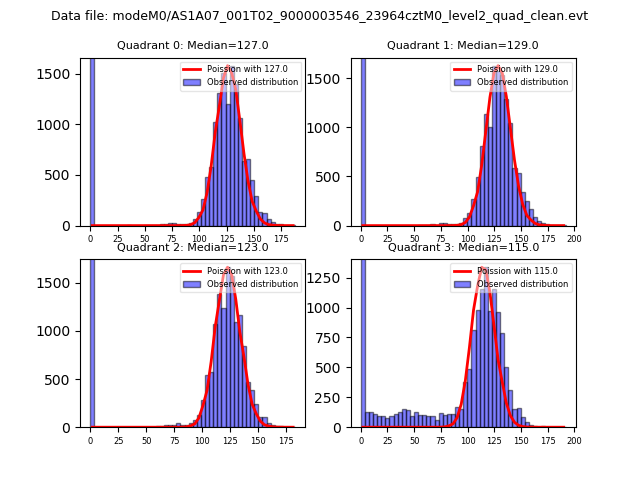

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

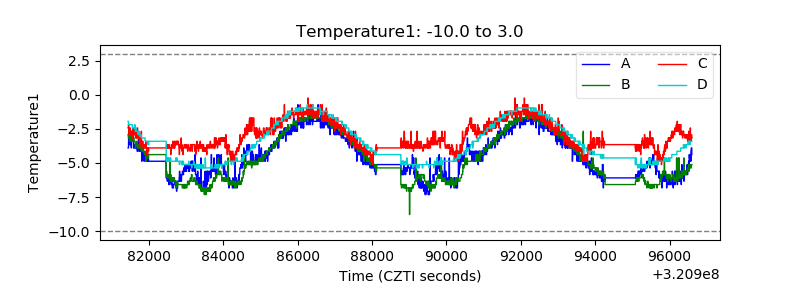

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

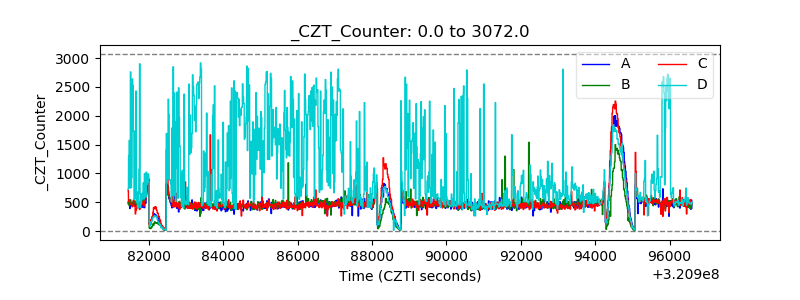

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

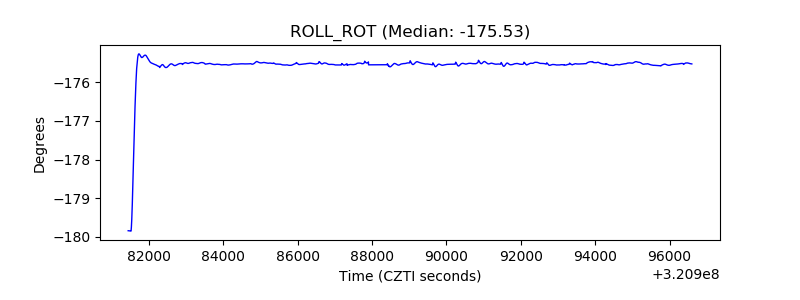

| _ROLL_ROT |  |
| _Roll_DEC |  |

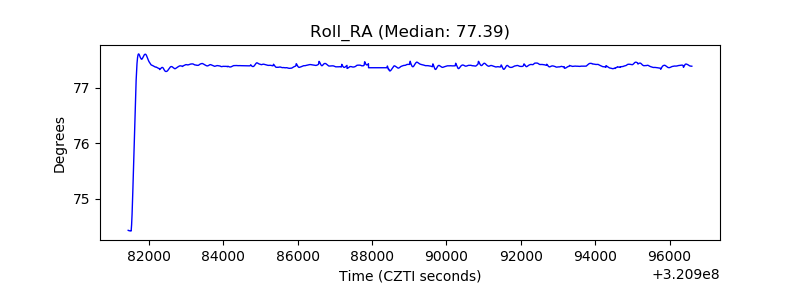

| _Roll_RA |  |
| Veto Counter |  |
