| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T02_9000003546_23965cztM0_level2.evt | modeM0/AS1A07_001T02_9000003546_23965cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,863,040 | 124,516,800 |
| Size | 573.0 MB | 118.7 MB |
| Events in quadrant A | 3,153,947 | 890,319 |
| Events in quadrant B | 3,238,262 | 900,911 |
| Events in quadrant C | 3,321,712 | 857,473 |
| Events in quadrant D | 8,033,130 | 659,293 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13603 | 1 |
| B | 0 | 13765 | 1 |
| C | 0 | 14145 | 1 |
| D | 0 | 28291 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6634 | 57 | 0.859210% |
| B | 6635 | 71 | 1.070083% |
| C | 6635 | 132 | 1.989450% |
| D | 6635 | 2099 | 31.635268% |

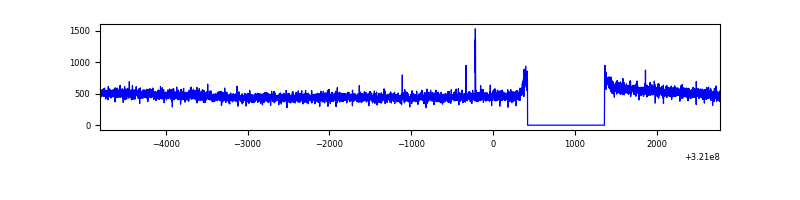

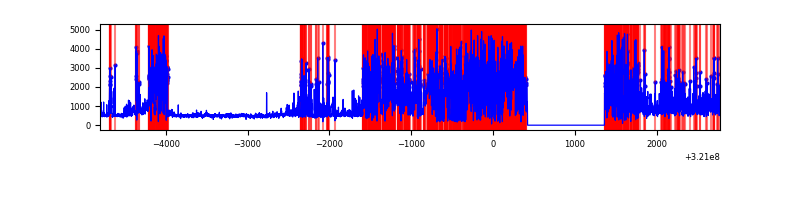

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

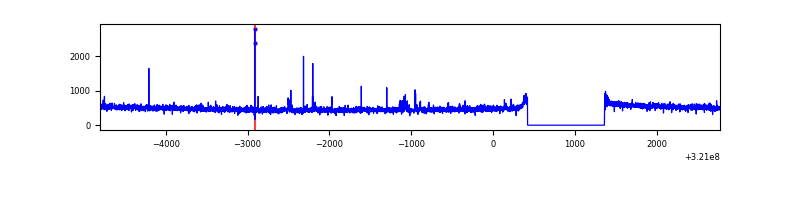

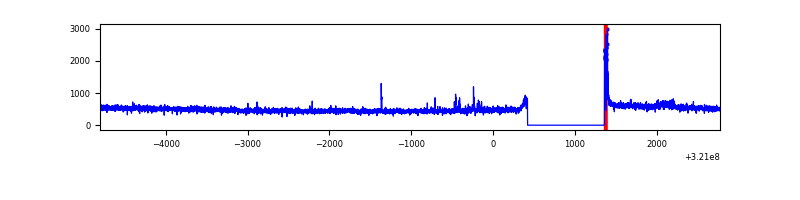

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6635 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7575 | 6636 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7575 | 6635 | 17 | 17 | 0.22% | 0.26% |  |
| D | 7575 | 6636 | 1367 | 1367 | 18.05% | 20.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10443 | 58.64 | 816 | 799 | 164.5 |
| A | 5 | 168 | 7136 | 38.53 | 816 | 799 | 164.5 |
| A | 3 | 137 | 7059 | 38.06 | 816 | 799 | 164.5 |
| B | 12 | 111 | 18709 | 116.22 | 814 | 793 | 154.2 |
| B | 11 | 111 | 16490 | 101.83 | 814 | 793 | 154.2 |
| B | 10 | 247 | 15804 | 97.38 | 814 | 793 | 154.2 |
| C | 14 | 238 | 127537 | 702.24 | 783 | 789 | 180.5 |
| C | 0 | 10 | 72906 | 399.56 | 783 | 789 | 180.5 |
| C | 0 | 239 | 62198 | 340.23 | 783 | 789 | 180.5 |
| D | 12 | 218 | 4783486 | 30533.15 | 645 | 624 | 156.6 |
| D | 12 | 250 | 233404 | 1486.04 | 645 | 624 | 156.6 |
| D | 9 | 35 | 190899 | 1214.69 | 645 | 624 | 156.6 |

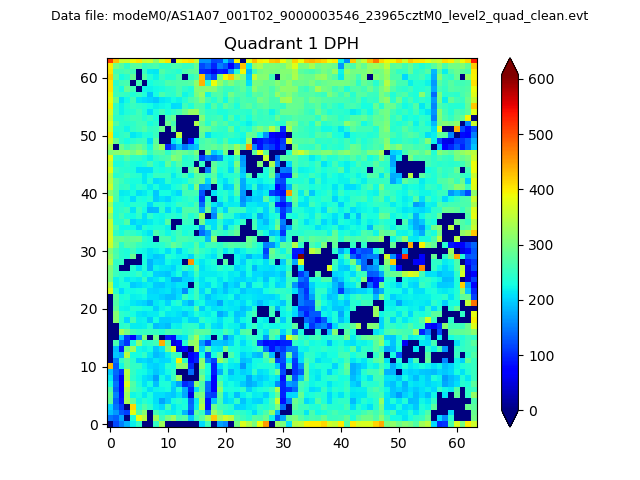

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

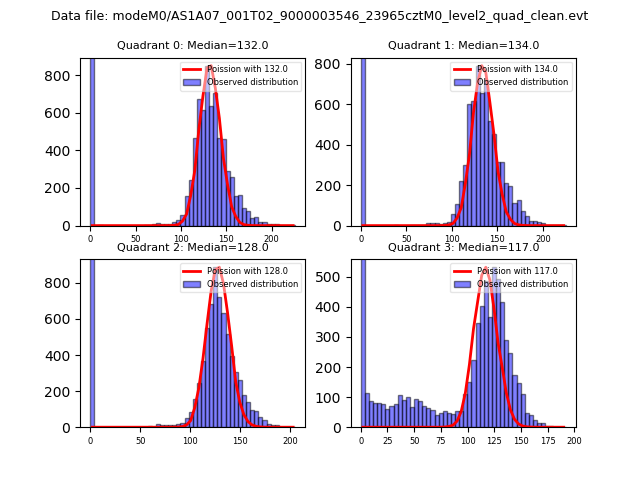

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

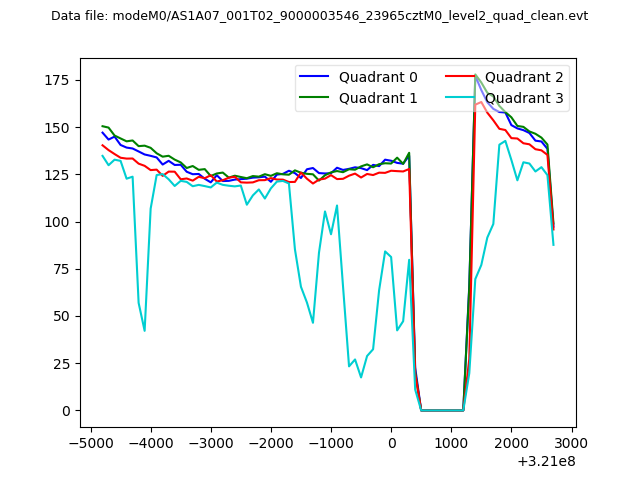

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

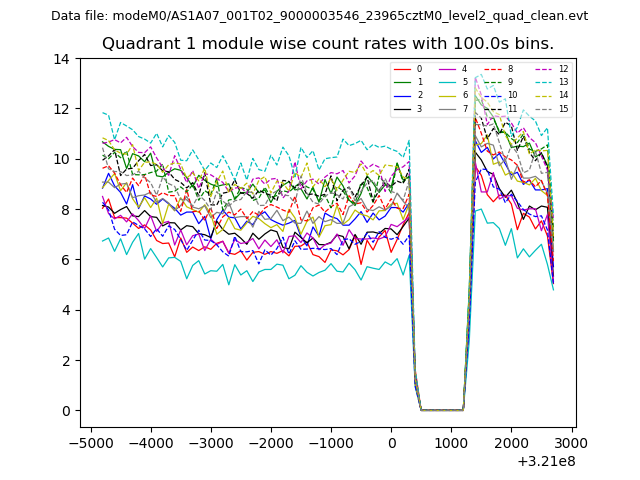

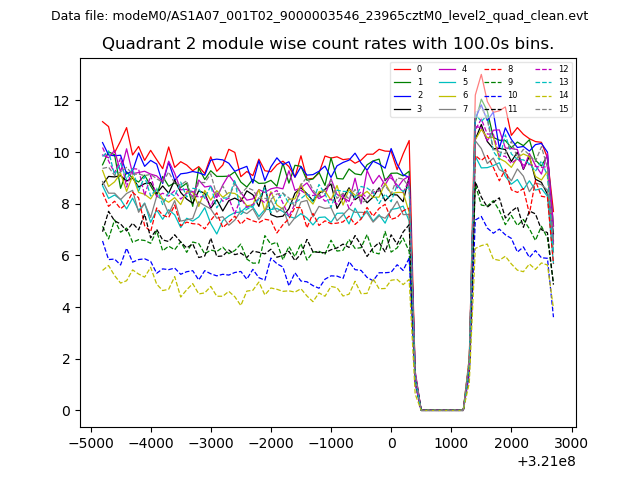

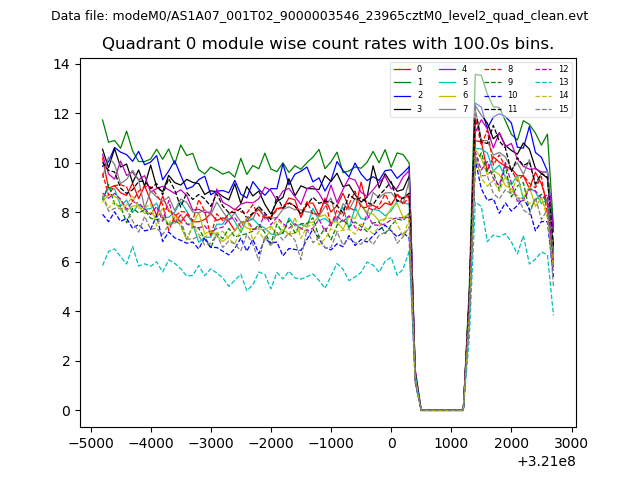

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

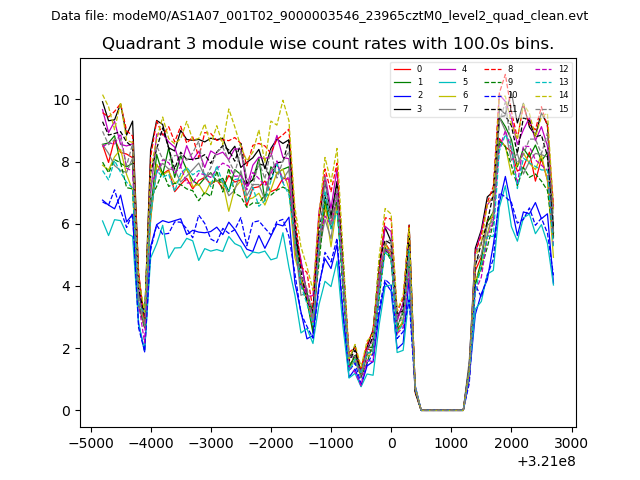

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

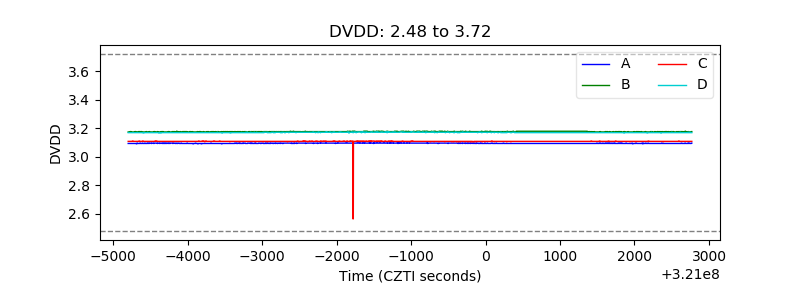

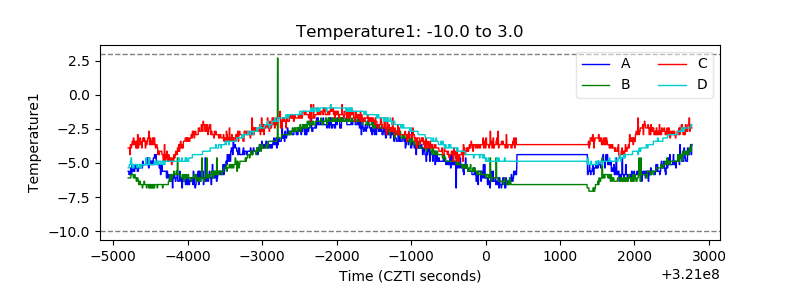

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

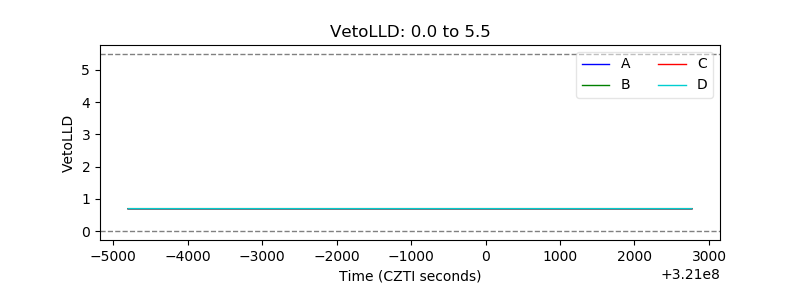

| Veto LLD |  |

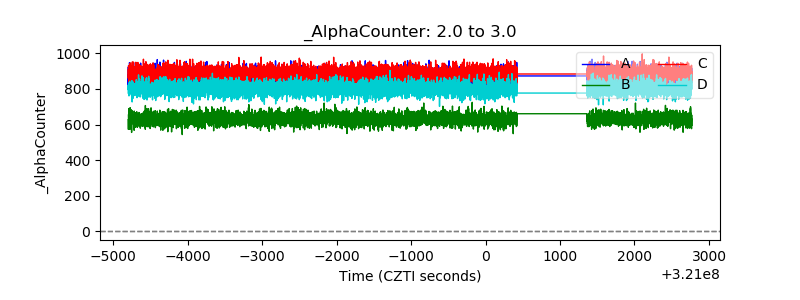

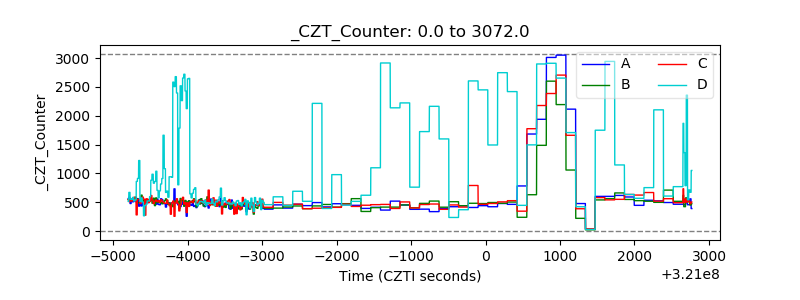

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

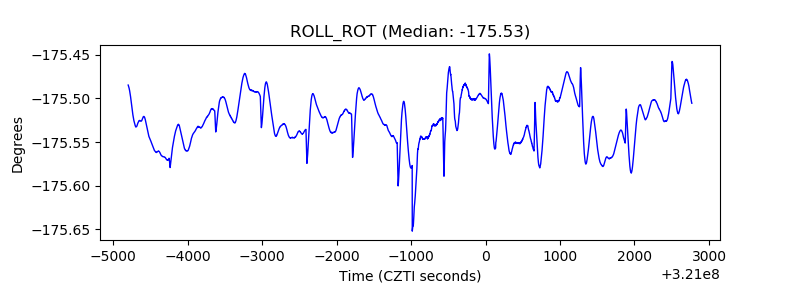

| _ROLL_ROT |  |

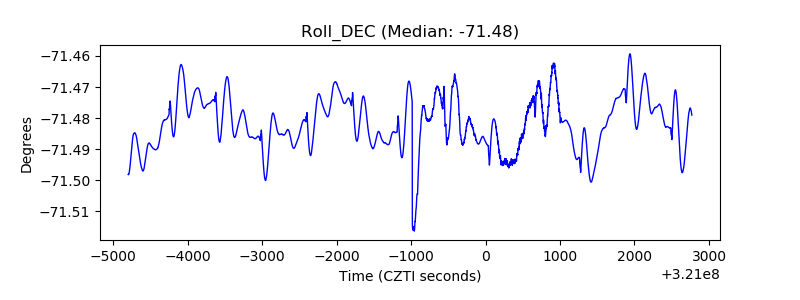

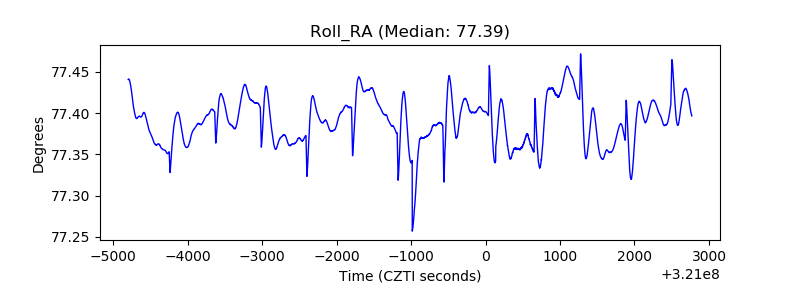

| _Roll_DEC |  |
| _Roll_RA |  |

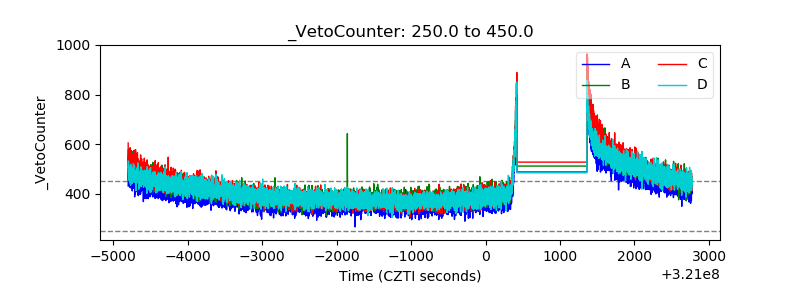

| Veto Counter |  |
