| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T03_9000003548_23968cztM0_level2.evt | modeM0/AS1A07_001T03_9000003548_23968cztM0_level2_quad_clean.evt |
| Size (bytes) | 705,960,000 | 136,584,000 |
| Size | 673.3 MB | 130.3 MB |
| Events in quadrant A | 3,384,045 | 1,003,478 |
| Events in quadrant B | 3,419,612 | 1,010,347 |
| Events in quadrant C | 3,783,829 | 960,341 |
| Events in quadrant D | 10,348,974 | 704,538 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14335 | 1 |
| B | 0 | 14394 | 1 |
| C | 0 | 15686 | 1 |
| D | 0 | 35309 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6556 | 69 | 1.052471% |
| B | 6556 | 73 | 1.113484% |
| C | 6557 | 143 | 2.180875% |
| D | 6557 | 2926 | 44.624066% |

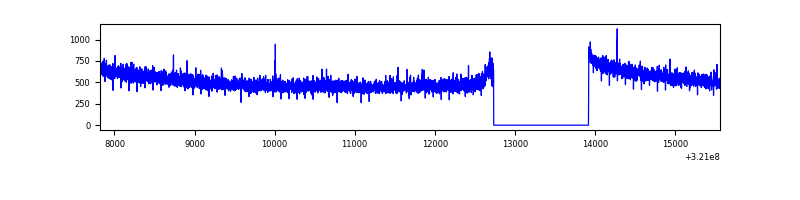

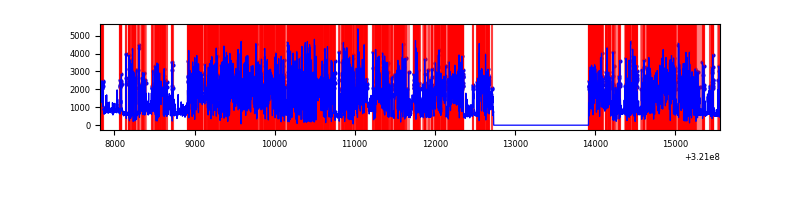

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7741 | 6557 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7741 | 6557 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7742 | 6558 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7742 | 6557 | 2111 | 2111 | 27.27% | 32.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11080 | 58.84 | 877 | 861 | 173.7 |
| A | 0 | 226 | 7697 | 39.36 | 877 | 861 | 173.7 |
| A | 3 | 137 | 6850 | 34.48 | 877 | 861 | 173.7 |
| B | 0 | 197 | 18326 | 110.48 | 861 | 843 | 158.2 |
| B | 12 | 111 | 18164 | 109.46 | 861 | 843 | 158.2 |
| B | 11 | 111 | 16324 | 97.83 | 861 | 843 | 158.2 |
| C | 0 | 239 | 353253 | 1859.09 | 826 | 833 | 189.6 |
| C | 14 | 238 | 135012 | 707.82 | 826 | 833 | 189.6 |
| C | 0 | 10 | 34227 | 176.16 | 826 | 833 | 189.6 |
| D | 12 | 218 | 6033550 | 37672.4 | 663 | 643 | 160.1 |
| D | 2 | 82 | 856921 | 5347.01 | 663 | 643 | 160.1 |
| D | 1 | 52 | 367790 | 2292.64 | 663 | 643 | 160.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

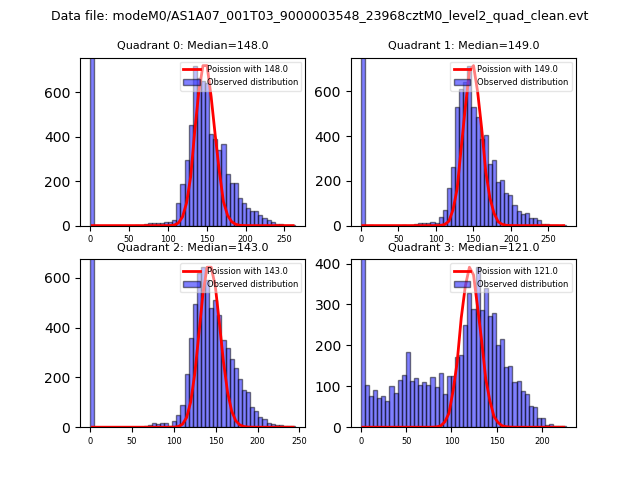

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

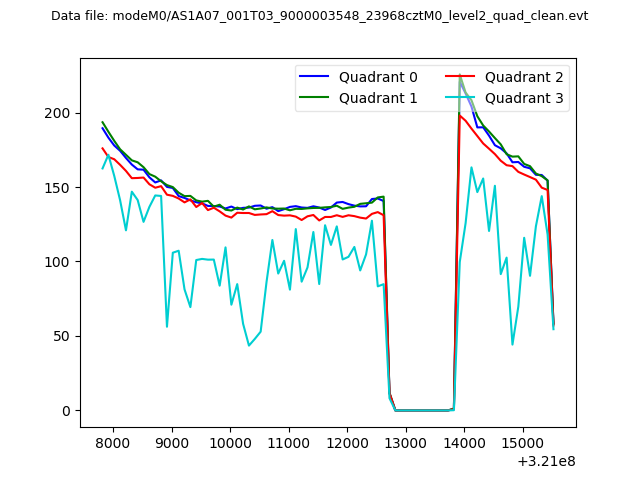

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

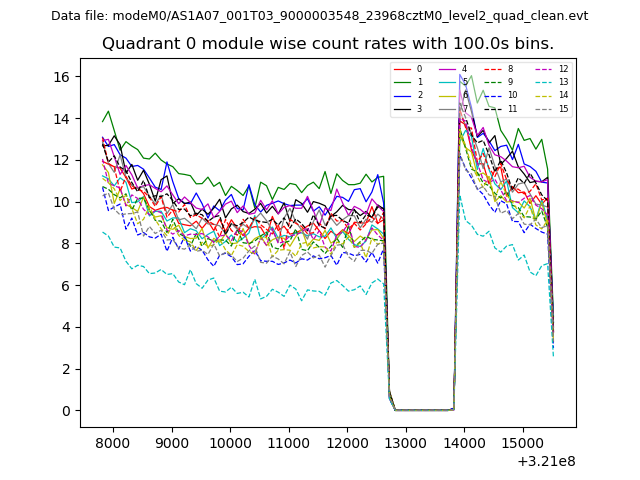

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

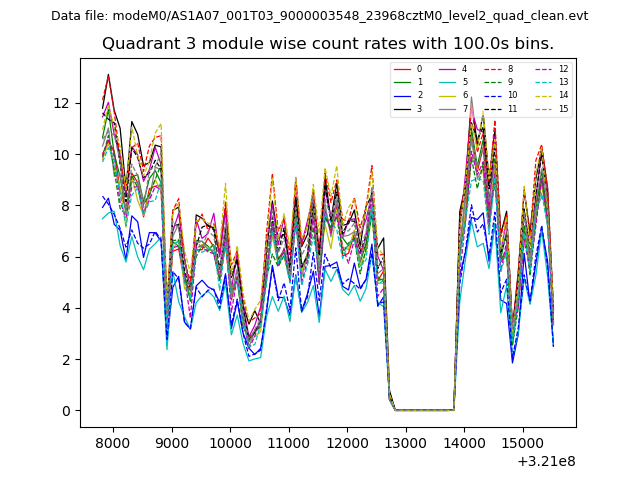

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

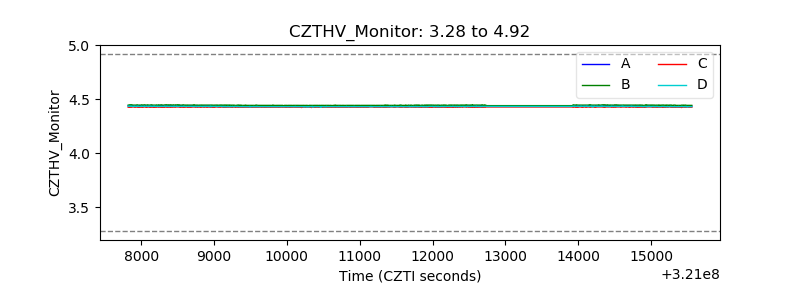

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
