| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T05_9000003550_23970cztM0_level2.evt | modeM0/AS1A07_001T05_9000003550_23970cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,145,920 | 129,620,160 |
| Size | 520.8 MB | 123.6 MB |
| Events in quadrant A | 3,083,154 | 939,478 |
| Events in quadrant B | 3,269,175 | 940,947 |
| Events in quadrant C | 3,208,001 | 875,334 |
| Events in quadrant D | 6,572,273 | 750,308 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12926 | 2 |
| B | 0 | 13417 | 1 |
| C | 0 | 13284 | 1 |
| D | 0 | 23630 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6003 | 75 | 1.249375% |
| B | 6004 | 98 | 1.632245% |
| C | 6004 | 145 | 2.415057% |
| D | 6004 | 1507 | 25.099933% |

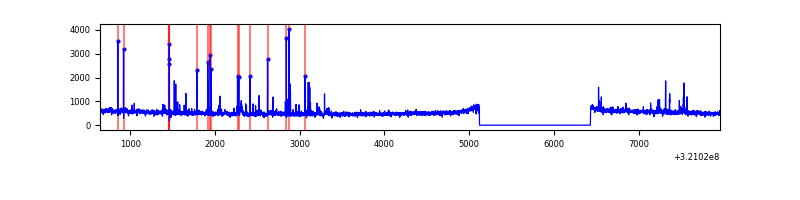

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7313 | 6004 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7314 | 6005 | 16 | 16 | 0.22% | 0.27% |  |
| C | 7314 | 6005 | 29 | 29 | 0.40% | 0.48% |  |
| D | 7314 | 6005 | 712 | 712 | 9.73% | 11.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10517 | 61.21 | 800 | 785 | 159.0 |
| A | 0 | 226 | 7167 | 40.14 | 800 | 785 | 159.0 |
| A | 3 | 137 | 6280 | 34.56 | 800 | 785 | 159.0 |
| B | 0 | 197 | 93395 | 638.22 | 785 | 768 | 145.1 |
| B | 0 | 245 | 54587 | 370.83 | 785 | 768 | 145.1 |
| B | 5 | 172 | 28200 | 189.01 | 785 | 768 | 145.1 |
| C | 0 | 10 | 151813 | 905.7 | 739 | 744 | 166.8 |
| C | 14 | 238 | 123276 | 734.61 | 739 | 744 | 166.8 |
| C | 7 | 221 | 25533 | 148.62 | 739 | 744 | 166.8 |
| D | 12 | 218 | 3041818 | 18612.42 | 667 | 648 | 163.4 |
| D | 12 | 250 | 264689 | 1615.97 | 667 | 648 | 163.4 |
| D | 12 | 202 | 199530 | 1217.19 | 667 | 648 | 163.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

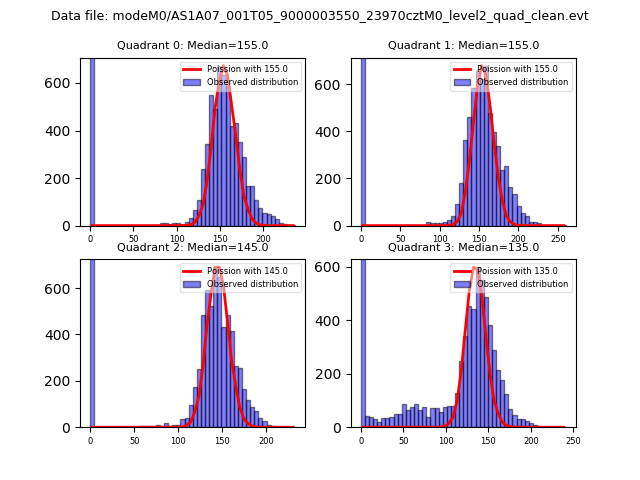

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

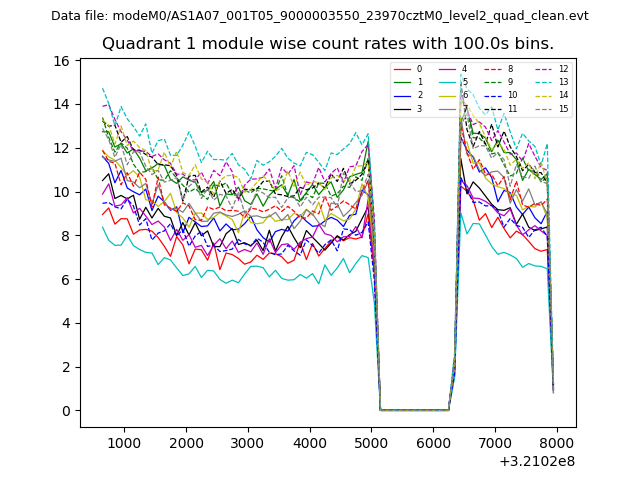

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

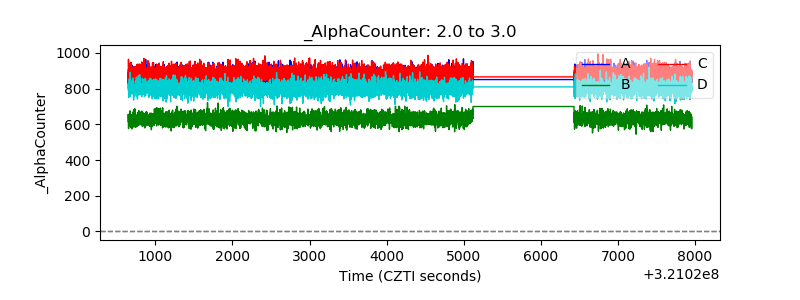

| Alpha Counter |  |

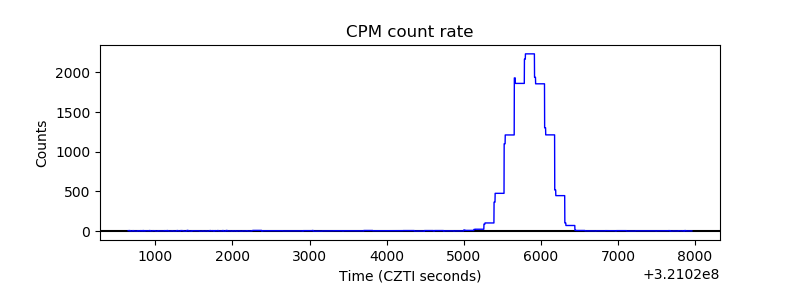

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

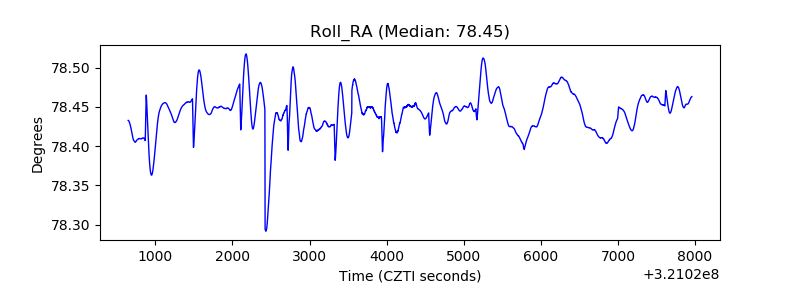

| _Roll_RA |  |

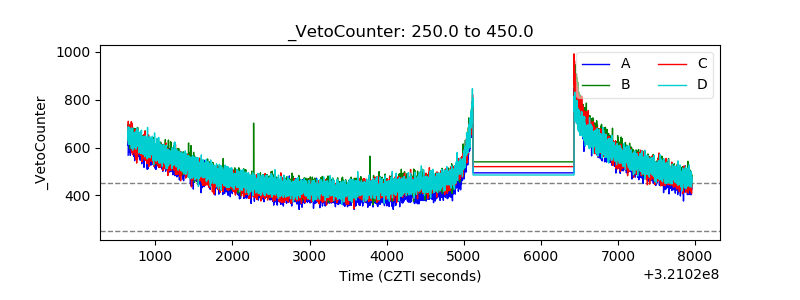

| Veto Counter |  |
