| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003554_23973cztM0_level2.evt | modeM0/AS1A07_065T01_9000003554_23973cztM0_level2_quad_clean.evt |
| Size (bytes) | 290,252,160 | 31,069,440 |
| Size | 276.8 MB | 29.6 MB |
| Events in quadrant A | 1,732,762 | 186,086 |
| Events in quadrant B | 2,575,661 | 172,357 |
| Events in quadrant C | 1,950,728 | 169,976 |
| Events in quadrant D | 2,299,179 | 170,982 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7191 | 1 |
| B | 0 | 9690 | 1 |
| C | 0 | 7801 | 1 |
| D | 0 | 9019 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 0 |
| B | 0 | 70 | 0 |
| C | 0 | 70 | 0 |
| D | 0 | 70 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3392 | 46 | 1.356132% |
| B | 3392 | 414 | 12.205189% |
| C | 3392 | 150 | 4.422170% |
| D | 3392 | 153 | 4.510613% |

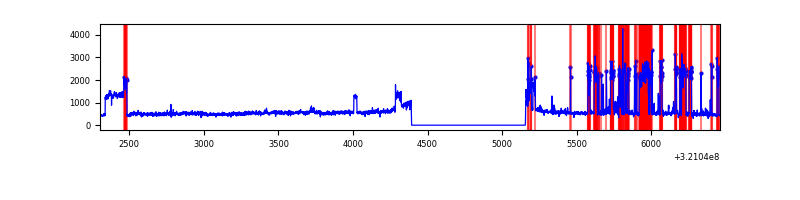

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4157 | 3393 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4157 | 3393 | 246 | 246 | 5.92% | 7.25% |  |
| C | 4157 | 3393 | 56 | 56 | 1.35% | 1.65% |  |
| D | 4157 | 3393 | 81 | 81 | 1.95% | 2.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 5545 | 55.74 | 448 | 438 | 91.6 |
| A | 3 | 137 | 4156 | 40.58 | 448 | 438 | 91.6 |
| A | 0 | 226 | 3927 | 38.08 | 448 | 438 | 91.6 |
| B | 4 | 200 | 776876 | 9100.3 | 431 | 419 | 85.3 |
| B | 0 | 197 | 87237 | 1017.53 | 431 | 419 | 85.3 |
| B | 0 | 190 | 25847 | 298.02 | 431 | 419 | 85.3 |
| C | 0 | 10 | 240703 | 2419.68 | 417 | 420 | 99.3 |
| C | 14 | 238 | 65134 | 651.68 | 417 | 420 | 99.3 |
| C | 7 | 247 | 6562 | 61.85 | 417 | 420 | 99.3 |
| D | 12 | 218 | 460589 | 4349.02 | 429 | 416 | 105.8 |
| D | 8 | 195 | 81466 | 765.99 | 429 | 416 | 105.8 |
| D | 7 | 238 | 63596 | 597.1 | 429 | 416 | 105.8 |

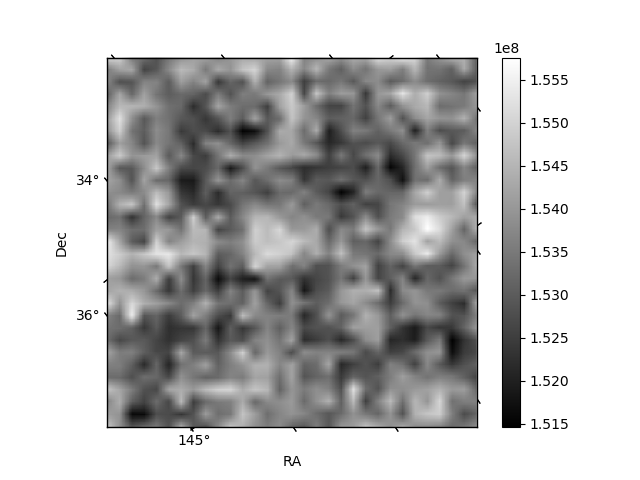

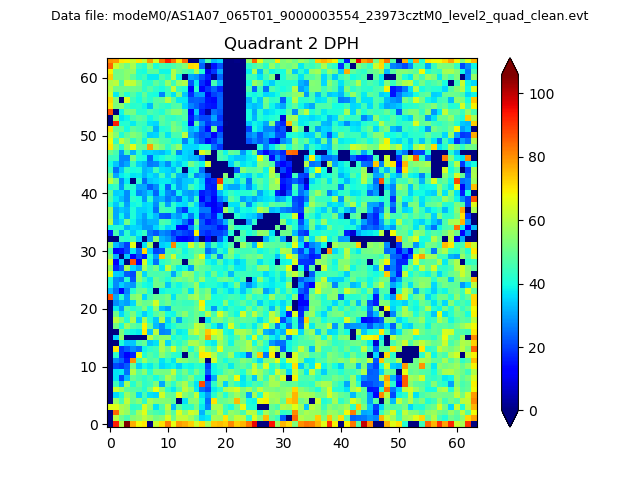

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

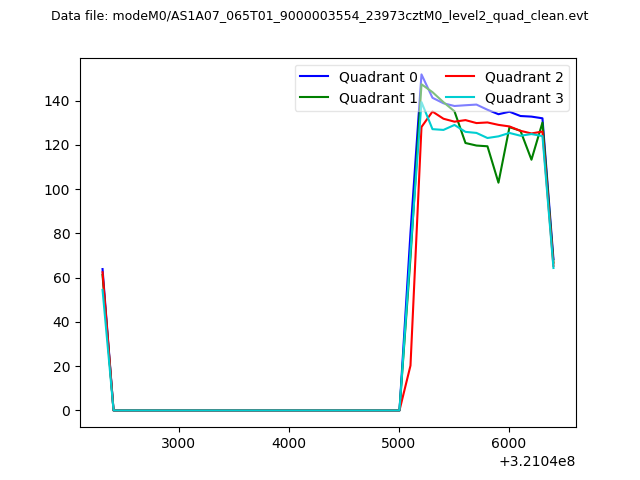

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

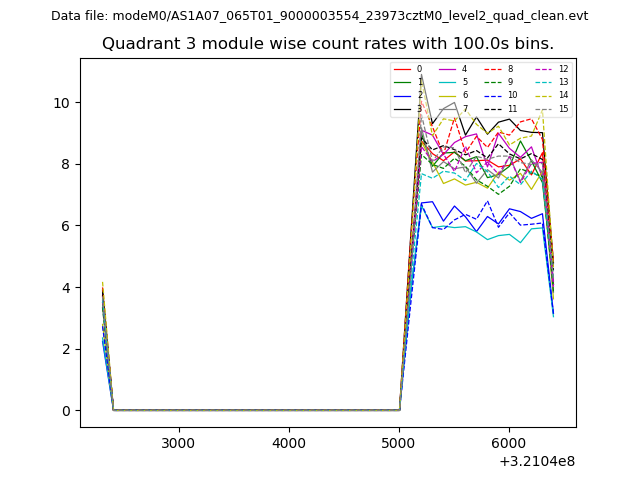

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

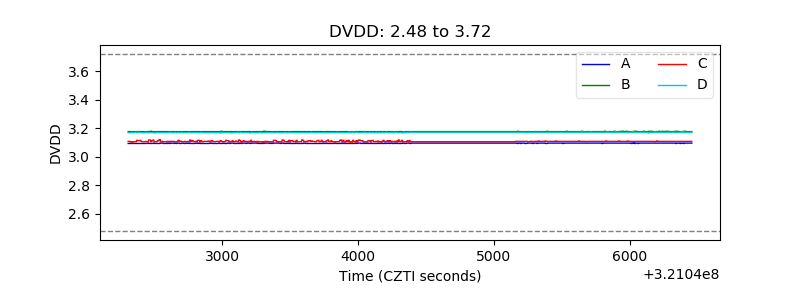

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

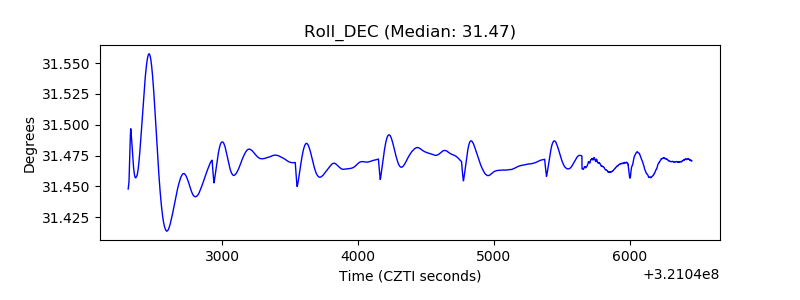

| _Roll_DEC |  |
| _Roll_RA |  |

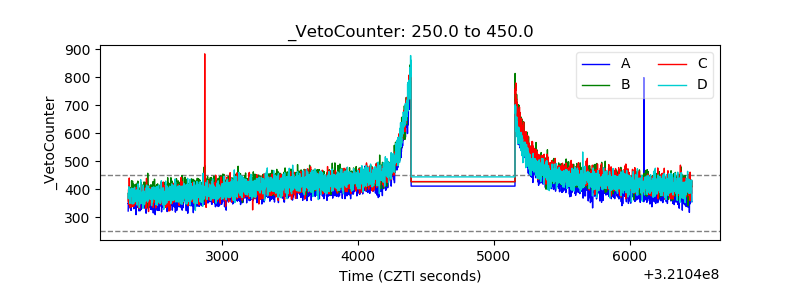

| Veto Counter |  |
