| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003554_23979cztM0_level2.evt | modeM0/AS1A07_065T01_9000003554_23979cztM0_level2_quad_clean.evt |
| Size (bytes) | 662,751,360 | 80,657,280 |
| Size | 632.0 MB | 76.9 MB |
| Events in quadrant A | 3,395,395 | 528,802 |
| Events in quadrant B | 3,540,083 | 539,145 |
| Events in quadrant C | 3,540,850 | 508,690 |
| Events in quadrant D | 9,111,676 | 368,609 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14537 | 3 |
| B | 0 | 14759 | 2 |
| C | 0 | 14851 | 2 |
| D | 0 | 31926 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7131 | 37 | 0.518861% |
| B | 7131 | 68 | 0.953583% |
| C | 7131 | 125 | 1.752910% |
| D | 7132 | 2544 | 35.670219% |

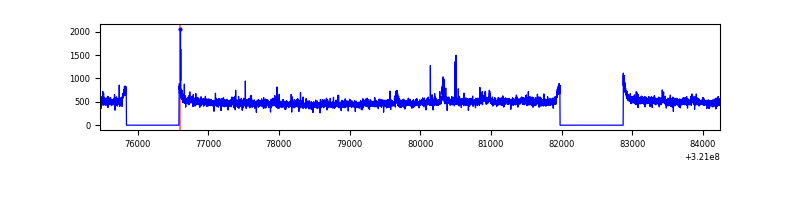

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8771 | 7133 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8771 | 7133 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8771 | 7133 | 15 | 15 | 0.17% | 0.21% |  |
| D | 8772 | 7134 | 1662 | 1662 | 18.95% | 23.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 18020 | 97.19 | 876 | 857 | 176.6 |
| A | 13 | 254 | 10539 | 54.83 | 876 | 857 | 176.6 |
| A | 3 | 137 | 8058 | 40.78 | 876 | 857 | 176.6 |
| B | 0 | 197 | 90922 | 534.37 | 875 | 854 | 168.5 |
| B | 12 | 111 | 21333 | 121.5 | 875 | 854 | 168.5 |
| B | 11 | 111 | 18667 | 105.68 | 875 | 854 | 168.5 |
| C | 14 | 238 | 133559 | 673.3 | 839 | 846 | 197.1 |
| C | 0 | 10 | 120827 | 608.71 | 839 | 846 | 197.1 |
| C | 5 | 37 | 12938 | 61.35 | 839 | 846 | 197.1 |
| D | 12 | 218 | 5077530 | 30426.81 | 676 | 657 | 166.9 |
| D | 7 | 238 | 470758 | 2817.42 | 676 | 657 | 166.9 |
| D | 12 | 250 | 317380 | 1898.19 | 676 | 657 | 166.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

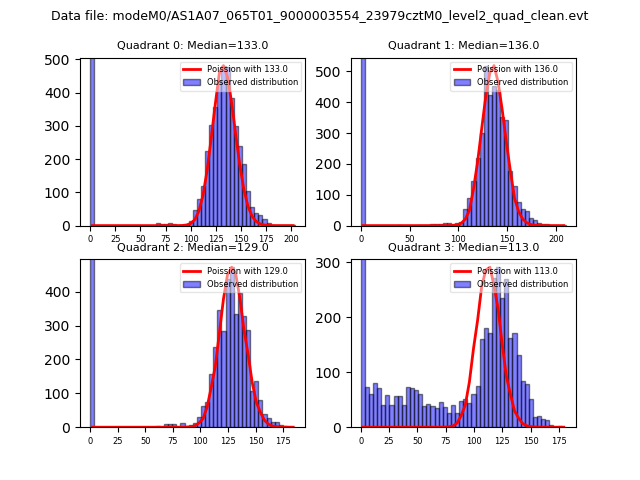

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

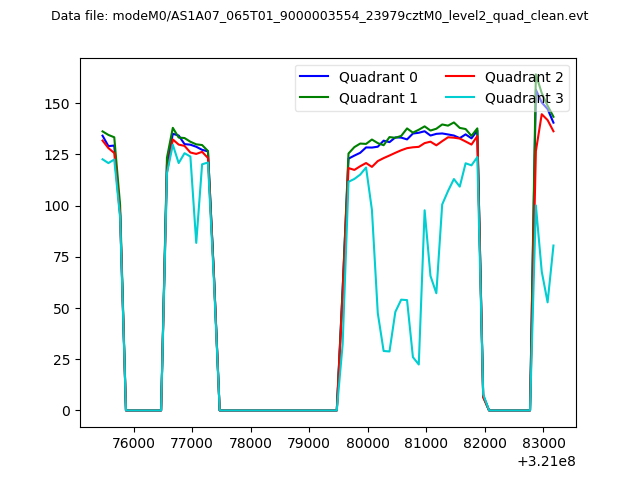

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

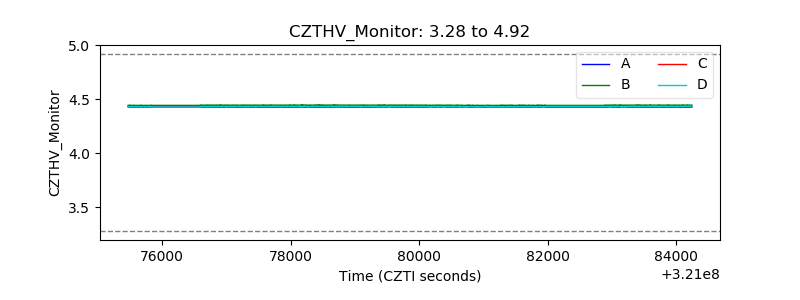

| CZT HV Monitor |  |

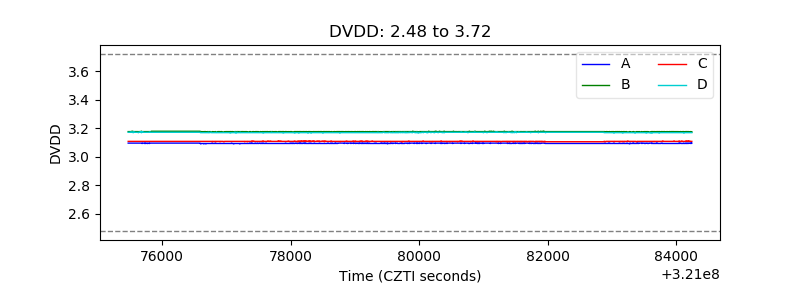

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

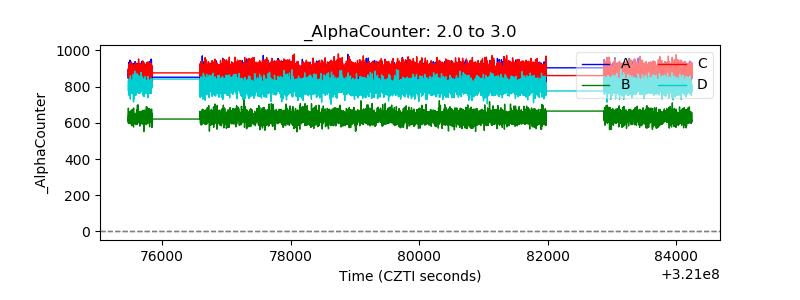

| Alpha Counter |  |

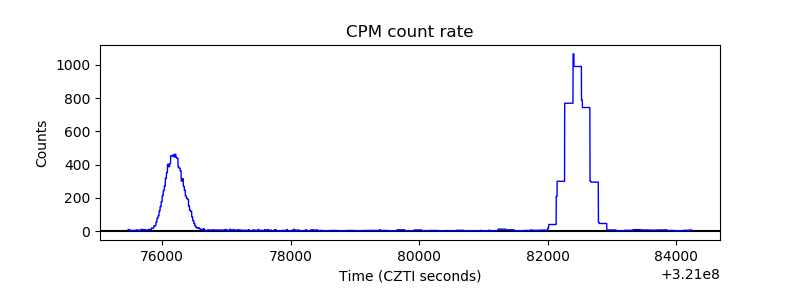

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
