| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_23990cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_23990cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,769,920 | 137,790,720 |
| Size | 595.8 MB | 131.4 MB |
| Events in quadrant A | 3,396,463 | 956,999 |
| Events in quadrant B | 3,588,309 | 970,464 |
| Events in quadrant C | 3,637,678 | 918,826 |
| Events in quadrant D | 7,791,694 | 806,171 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15177 | 2 |
| B | 0 | 15527 | 2 |
| C | 0 | 15645 | 2 |
| D | 0 | 28362 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7478 | 27 | 0.361059% |
| B | 7478 | 58 | 0.775608% |
| C | 7478 | 80 | 1.069805% |
| D | 7478 | 1477 | 19.751270% |

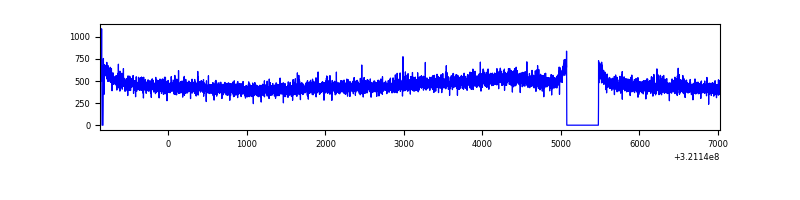

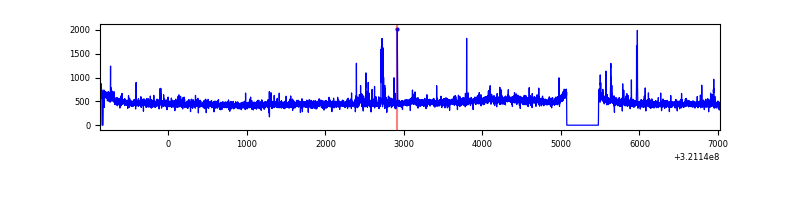

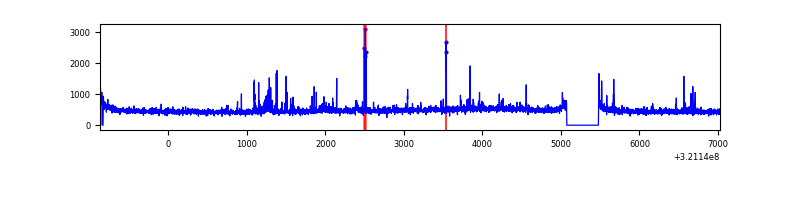

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7898 | 7480 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7898 | 7480 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7898 | 7480 | 6 | 6 | 0.08% | 0.08% |  |
| D | 7898 | 7480 | 801 | 801 | 10.14% | 10.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13025 | 68.79 | 880 | 859 | 176.9 |
| A | 3 | 137 | 7732 | 38.86 | 880 | 859 | 176.9 |
| A | 0 | 226 | 7698 | 38.67 | 880 | 859 | 176.9 |
| B | 0 | 197 | 79258 | 468.12 | 883 | 862 | 167.5 |
| B | 12 | 111 | 19747 | 112.77 | 883 | 862 | 167.5 |
| B | 11 | 111 | 16926 | 95.92 | 883 | 862 | 167.5 |
| C | 0 | 239 | 165369 | 839.93 | 841 | 845 | 195.9 |
| C | 14 | 238 | 131863 | 668.88 | 841 | 845 | 195.9 |
| C | 0 | 10 | 38188 | 190.64 | 841 | 845 | 195.9 |
| D | 12 | 218 | 3377421 | 17823.25 | 774 | 751 | 189.5 |
| D | 8 | 195 | 305655 | 1609.39 | 774 | 751 | 189.5 |
| D | 12 | 250 | 271806 | 1430.72 | 774 | 751 | 189.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

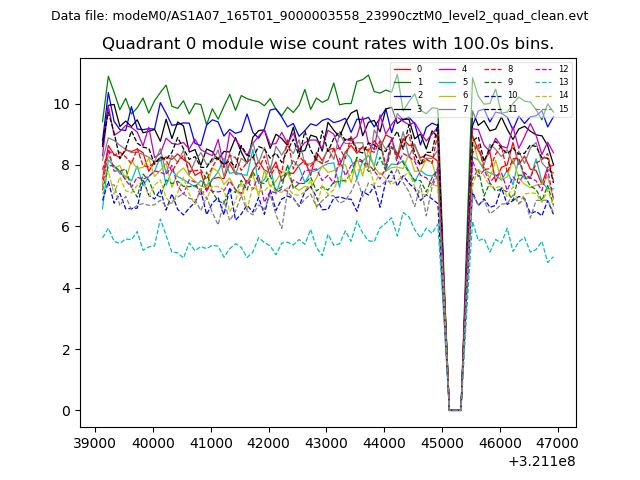

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

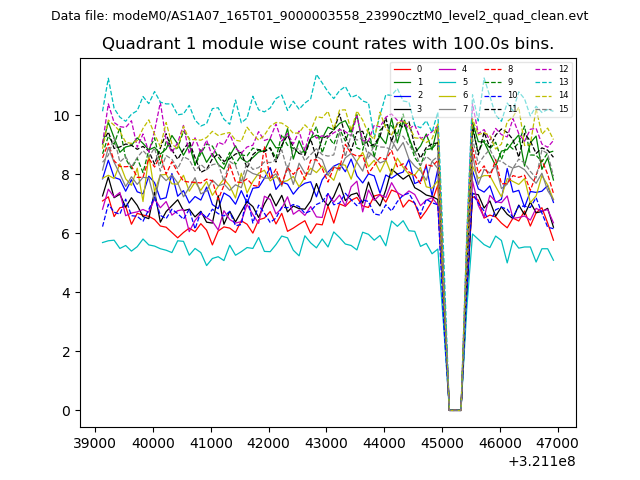

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

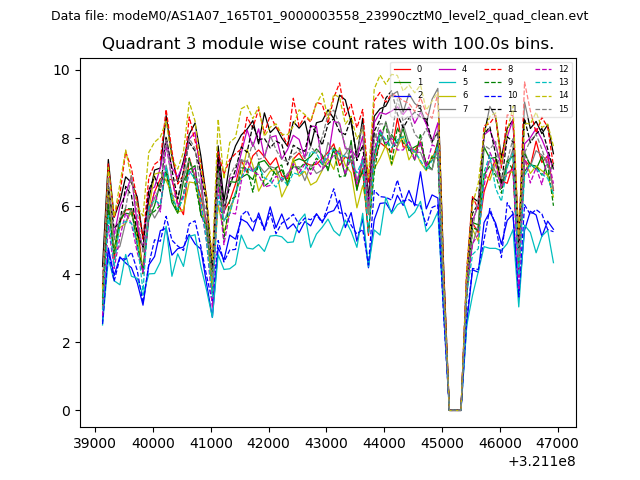

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

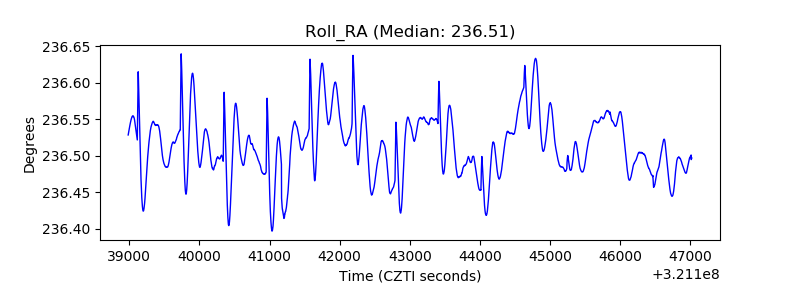

| _Roll_RA |  |
| Veto Counter |  |
