| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_23997cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_23997cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,772,800 | 138,611,520 |
| Size | 561.5 MB | 132.2 MB |
| Events in quadrant A | 3,300,152 | 975,765 |
| Events in quadrant B | 3,471,301 | 988,587 |
| Events in quadrant C | 3,673,871 | 928,036 |
| Events in quadrant D | 6,956,937 | 863,806 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13913 | 2 |
| B | 0 | 14341 | 2 |
| C | 0 | 15042 | 2 |
| D | 0 | 25049 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6329 | 22 | 0.347606% |
| B | 6329 | 46 | 0.726813% |
| C | 6329 | 183 | 2.891452% |
| D | 6328 | 955 | 15.091656% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6330 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7559 | 6330 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7559 | 6330 | 78 | 78 | 1.03% | 1.23% |  |
| D | 7558 | 6329 | 733 | 733 | 9.70% | 11.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 32734 | 191.88 | 847 | 831 | 166.3 |
| A | 13 | 254 | 10362 | 57.33 | 847 | 831 | 166.3 |
| A | 0 | 226 | 7291 | 38.85 | 847 | 831 | 166.3 |
| B | 0 | 197 | 131295 | 845.89 | 836 | 819 | 154.2 |
| B | 15 | 32 | 43093 | 274.07 | 836 | 819 | 154.2 |
| B | 12 | 111 | 17567 | 108.58 | 836 | 819 | 154.2 |
| C | 0 | 10 | 333649 | 1825.13 | 798 | 806 | 182.4 |
| C | 14 | 238 | 129332 | 704.77 | 798 | 806 | 182.4 |
| C | 0 | 239 | 55520 | 300.02 | 798 | 806 | 182.4 |
| D | 12 | 218 | 2444413 | 12935.9 | 788 | 767 | 188.9 |
| D | 1 | 52 | 934307 | 4941.87 | 788 | 767 | 188.9 |
| D | 8 | 195 | 321709 | 1698.97 | 788 | 767 | 188.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

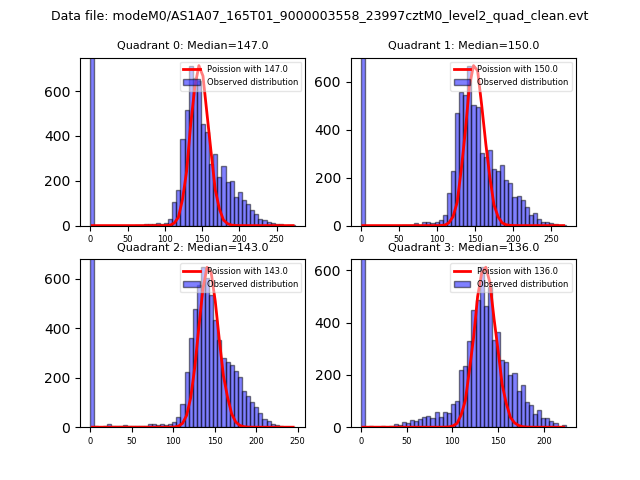

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

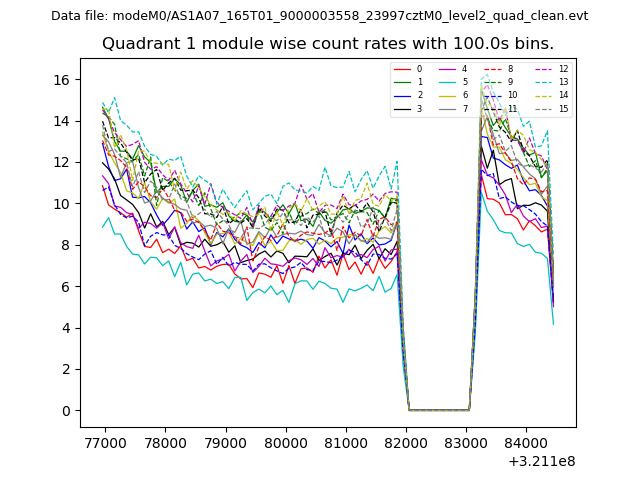

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

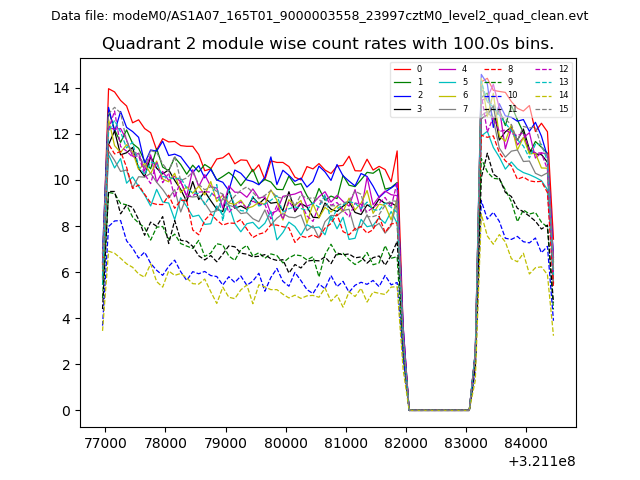

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

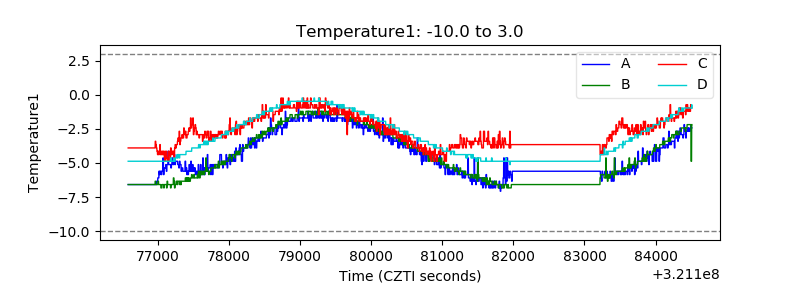

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

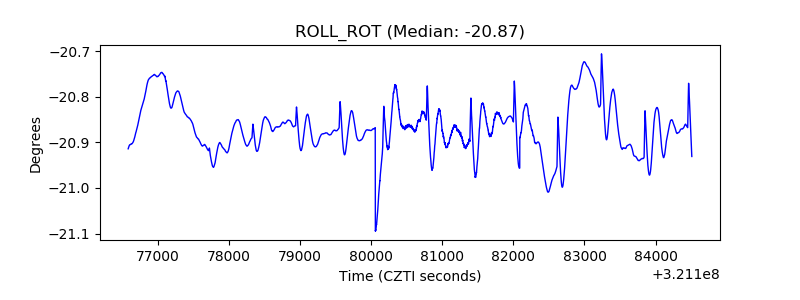

| _ROLL_ROT |  |

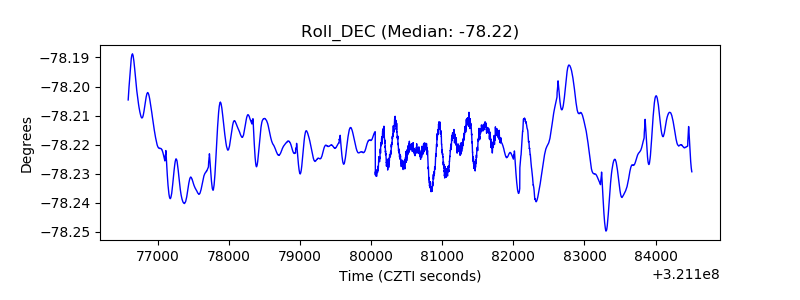

| _Roll_DEC |  |

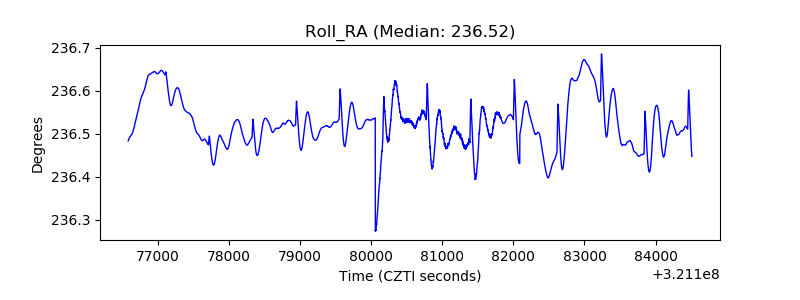

| _Roll_RA |  |
| Veto Counter |  |
