| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24004cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24004cztM0_level2_quad_clean.evt |
| Size (bytes) | 678,752,640 | 139,734,720 |
| Size | 647.3 MB | 133.3 MB |
| Events in quadrant A | 3,465,487 | 971,061 |
| Events in quadrant B | 3,625,164 | 988,784 |
| Events in quadrant C | 3,955,385 | 934,364 |
| Events in quadrant D | 8,997,996 | 811,504 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15402 | 2 |
| B | 0 | 15717 | 2 |
| C | 0 | 16644 | 2 |
| D | 0 | 31949 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7556 | 43 | 0.569084% |
| B | 7557 | 52 | 0.688104% |
| C | 7557 | 137 | 1.812889% |
| D | 7557 | 1657 | 21.926690% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7896 | 7558 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7897 | 7559 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7897 | 7559 | 21 | 21 | 0.27% | 0.28% |  |
| D | 7897 | 7559 | 1323 | 1323 | 16.75% | 17.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13496 | 69.53 | 898 | 878 | 181.5 |
| A | 3 | 137 | 7843 | 38.38 | 898 | 878 | 181.5 |
| A | 0 | 226 | 7830 | 38.31 | 898 | 878 | 181.5 |
| B | 7 | 202 | 32549 | 187.98 | 898 | 876 | 168.5 |
| B | 12 | 111 | 19728 | 111.89 | 898 | 876 | 168.5 |
| B | 0 | 245 | 18032 | 101.82 | 898 | 876 | 168.5 |
| C | 0 | 239 | 411199 | 2087.27 | 852 | 855 | 196.6 |
| C | 14 | 238 | 135905 | 686.95 | 852 | 855 | 196.6 |
| C | 7 | 247 | 60590 | 303.85 | 852 | 855 | 196.6 |
| D | 12 | 218 | 3036532 | 15890.99 | 784 | 758 | 191.0 |
| D | 8 | 195 | 2030500 | 10624.84 | 784 | 758 | 191.0 |
| D | 1 | 52 | 624473 | 3264.88 | 784 | 758 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

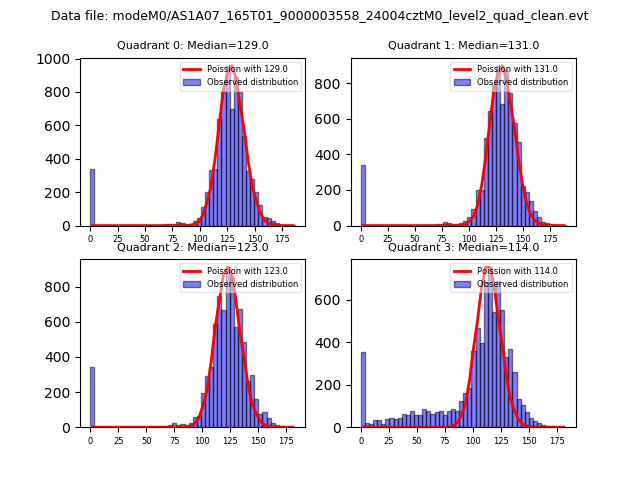

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

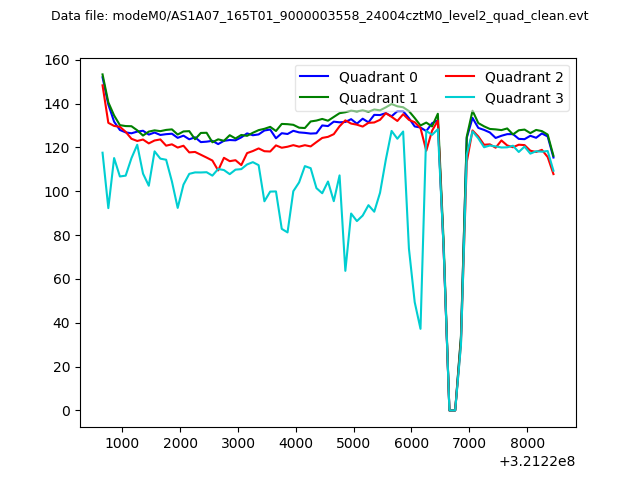

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

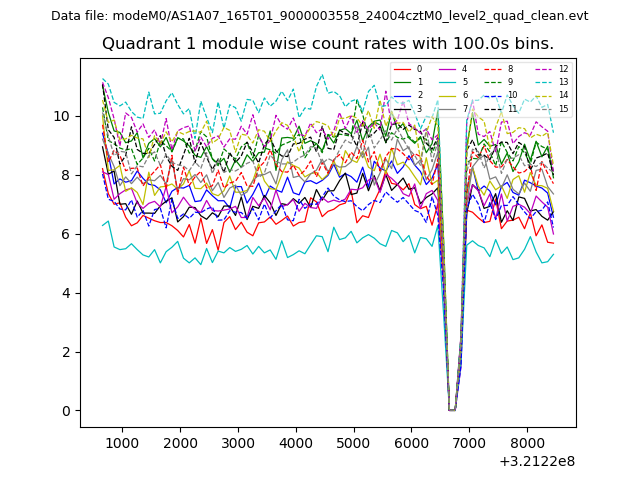

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

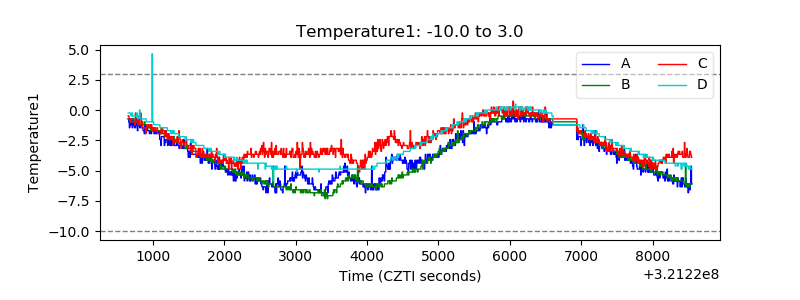

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

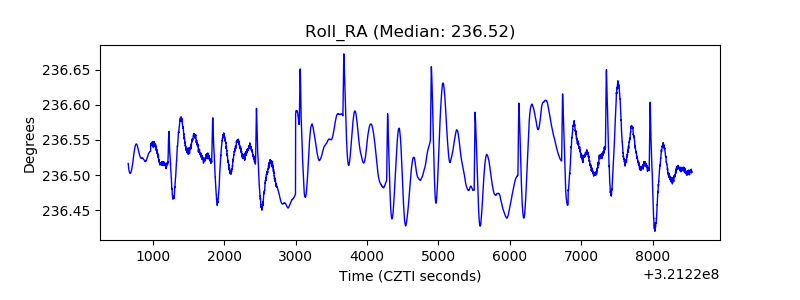

| _Roll_RA |  |

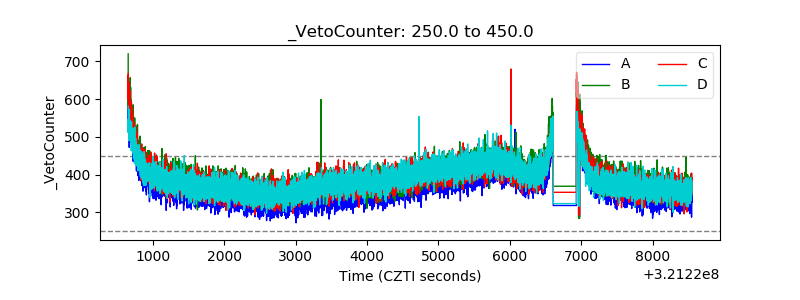

| Veto Counter |  |
