| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24013cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24013cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,733,120 | 147,562,560 |
| Size | 483.3 MB | 140.7 MB |
| Events in quadrant A | 3,800,011 | 1,019,913 |
| Events in quadrant B | 3,542,106 | 1,040,604 |
| Events in quadrant C | 3,478,601 | 992,060 |
| Events in quadrant D | 4,092,479 | 971,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15277 | 1 |
| B | 0 | 14512 | 2 |
| C | 0 | 14284 | 1 |
| D | 0 | 16771 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6396 | 212 | 3.314572% |
| B | 6396 | 89 | 1.391495% |
| C | 6396 | 114 | 1.782364% |
| D | 6396 | 88 | 1.375860% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7676 | 6397 | 96 | 96 | 1.25% | 1.50% |  |
| B | 7676 | 6397 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7676 | 6397 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7676 | 6397 | 11 | 11 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 418710 | 2446.12 | 875 | 859 | 170.8 |
| A | 13 | 254 | 9966 | 53.31 | 875 | 859 | 170.8 |
| A | 0 | 254 | 9838 | 52.56 | 875 | 859 | 170.8 |
| B | 5 | 172 | 53827 | 336.48 | 867 | 850 | 157.4 |
| B | 0 | 197 | 26534 | 163.13 | 867 | 850 | 157.4 |
| B | 7 | 202 | 24645 | 151.13 | 867 | 850 | 157.4 |
| C | 14 | 238 | 137953 | 730.75 | 832 | 841 | 187.6 |
| C | 7 | 247 | 73179 | 385.53 | 832 | 841 | 187.6 |
| C | 0 | 239 | 11984 | 59.39 | 832 | 841 | 187.6 |
| D | 8 | 195 | 600714 | 2936.12 | 855 | 834 | 204.3 |
| D | 12 | 218 | 69475 | 335.96 | 855 | 834 | 204.3 |
| D | 1 | 52 | 65455 | 316.29 | 855 | 834 | 204.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

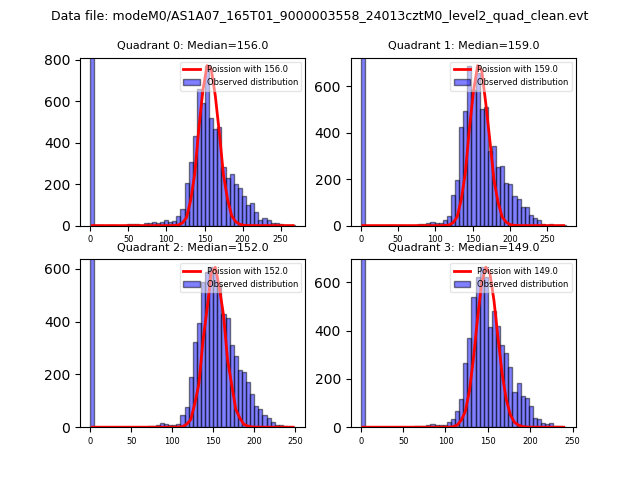

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

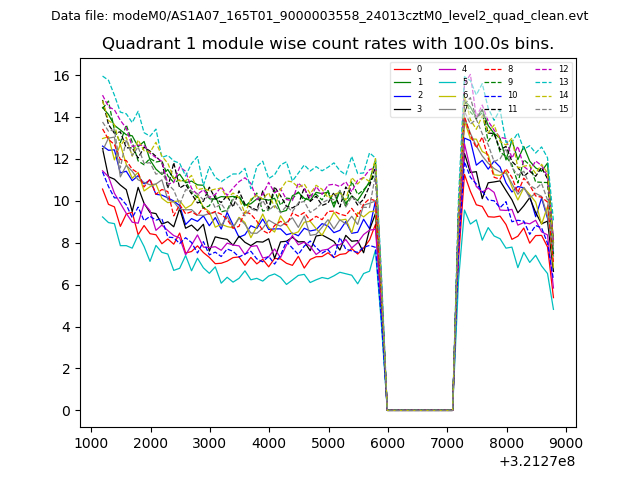

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

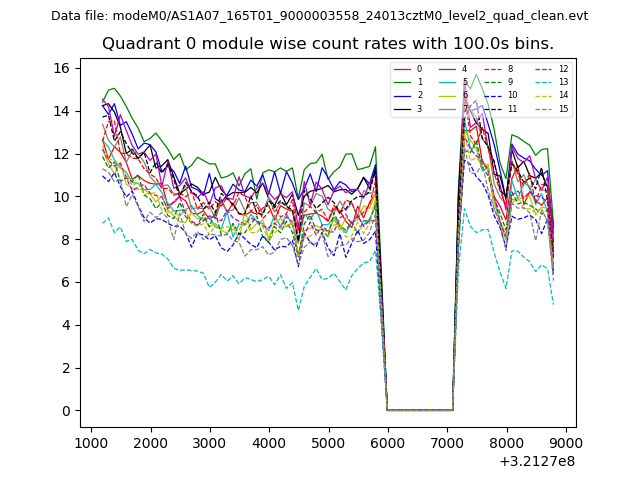

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

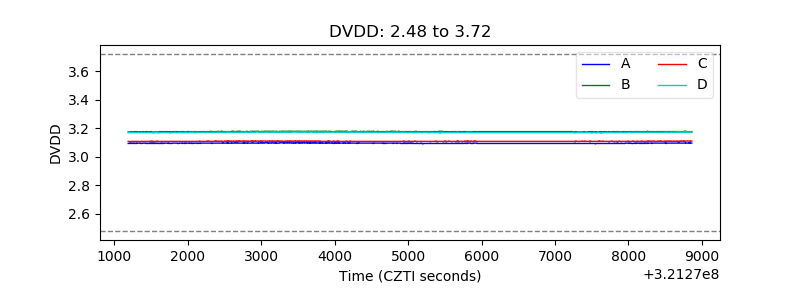

| D_VDD |  |

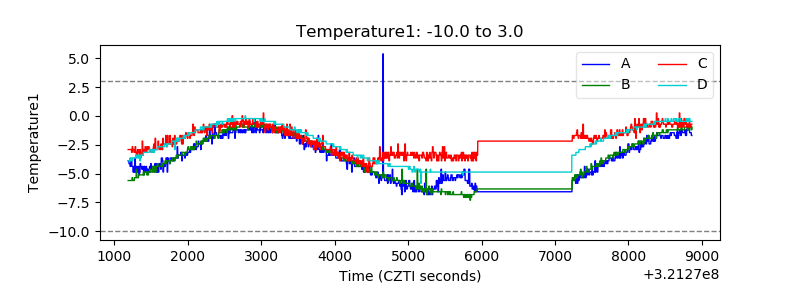

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

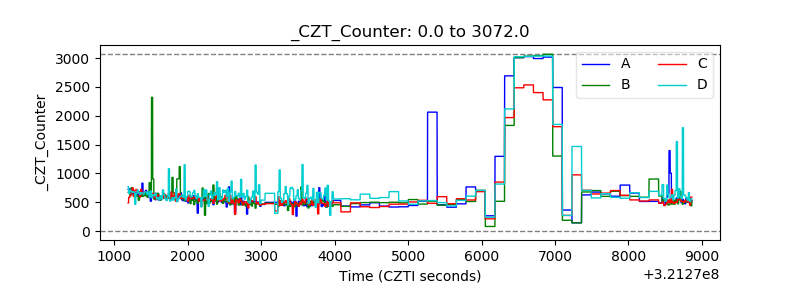

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

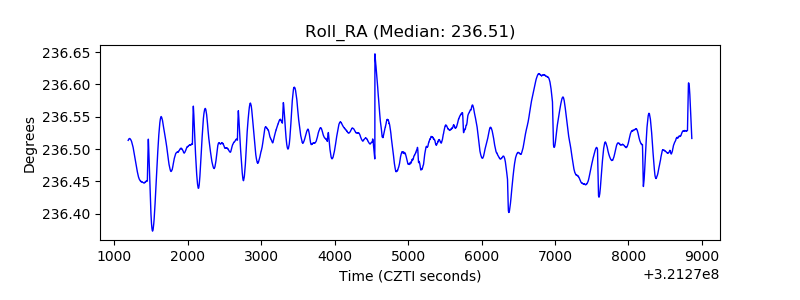

| _Roll_RA |  |
| Veto Counter |  |
