| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24014cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24014cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,962,240 | 130,898,880 |
| Size | 416.7 MB | 124.8 MB |
| Events in quadrant A | 3,191,109 | 904,726 |
| Events in quadrant B | 3,080,064 | 920,198 |
| Events in quadrant C | 2,994,666 | 870,411 |
| Events in quadrant D | 3,568,164 | 858,692 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12961 | 1 |
| B | 0 | 12606 | 1 |
| C | 0 | 12408 | 1 |
| D | 0 | 14542 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5877 | 142 | 2.416199% |
| B | 5878 | 87 | 1.480095% |
| C | 5878 | 109 | 1.854372% |
| D | 5878 | 91 | 1.548146% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

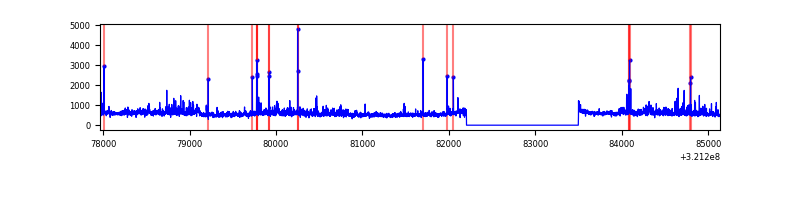

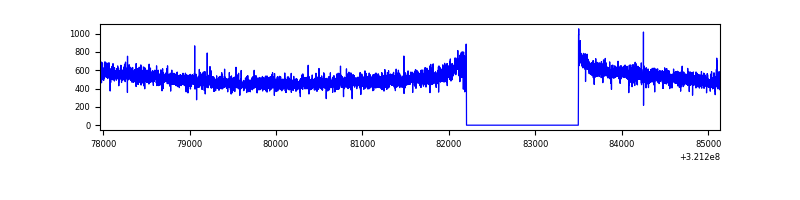

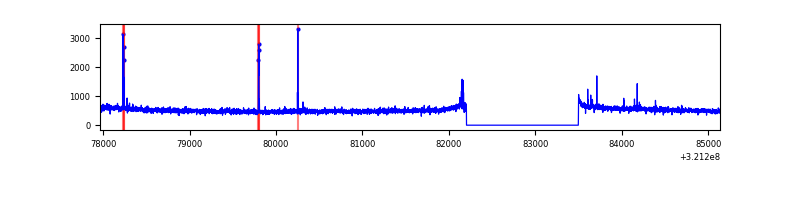

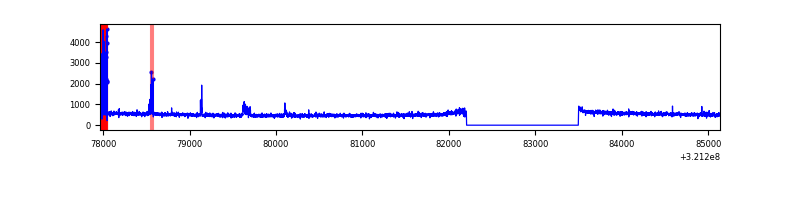

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7172 | 5878 | 43 | 43 | 0.60% | 0.73% |  |
| B | 7173 | 5879 | 7 | 7 | 0.10% | 0.12% |  |
| C | 7173 | 5879 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7173 | 5879 | 18 | 18 | 0.25% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 195114 | 1283.68 | 776 | 765 | 151.4 |
| A | 13 | 254 | 9082 | 54.93 | 776 | 765 | 151.4 |
| A | 0 | 226 | 6824 | 40.02 | 776 | 765 | 151.4 |
| B | 4 | 52 | 30754 | 213.46 | 768 | 752 | 140.6 |
| B | 7 | 202 | 24025 | 165.58 | 768 | 752 | 140.6 |
| B | 12 | 111 | 15914 | 107.87 | 768 | 752 | 140.6 |
| C | 14 | 238 | 120894 | 722.96 | 734 | 740 | 166.2 |
| C | 13 | 61 | 5264 | 27.22 | 734 | 740 | 166.2 |
| C | 3 | 233 | 3238 | 15.03 | 734 | 740 | 166.2 |
| D | 8 | 195 | 497712 | 2739.08 | 752 | 732 | 181.4 |
| D | 1 | 52 | 97685 | 534.35 | 752 | 732 | 181.4 |
| D | 12 | 218 | 48680 | 264.26 | 752 | 732 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

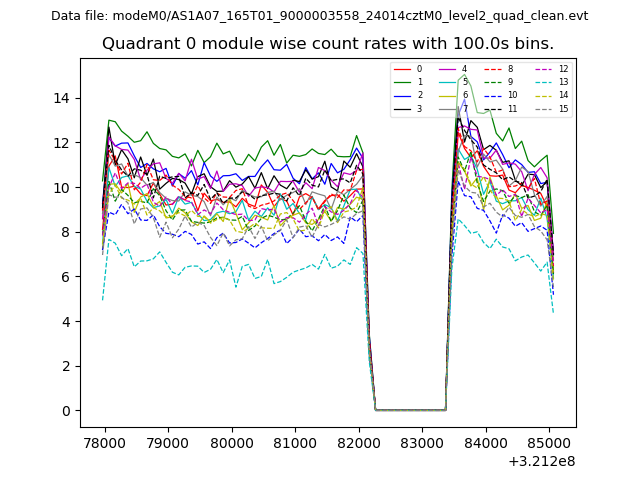

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

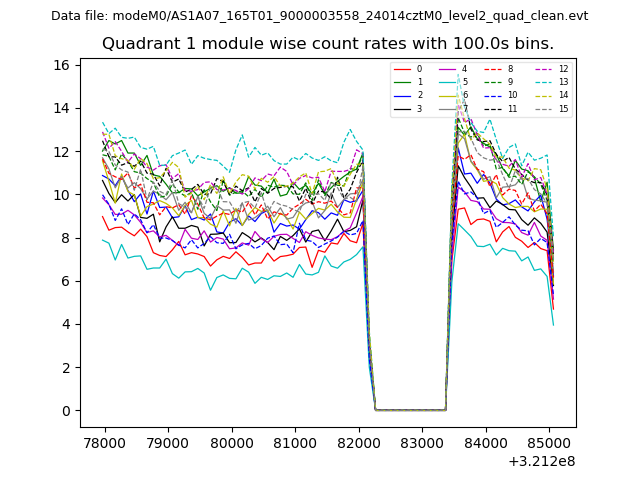

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

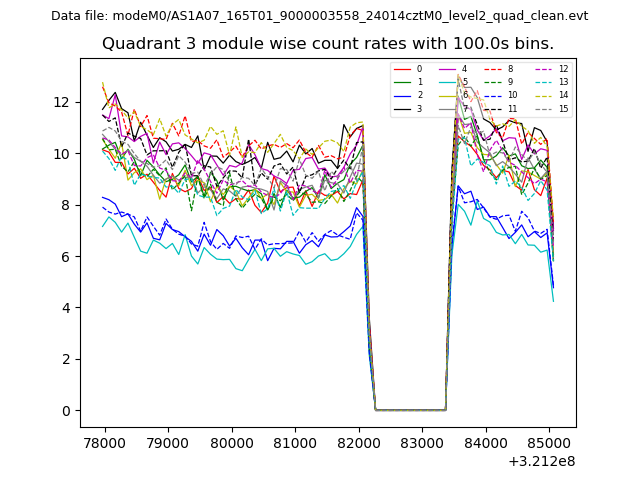

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

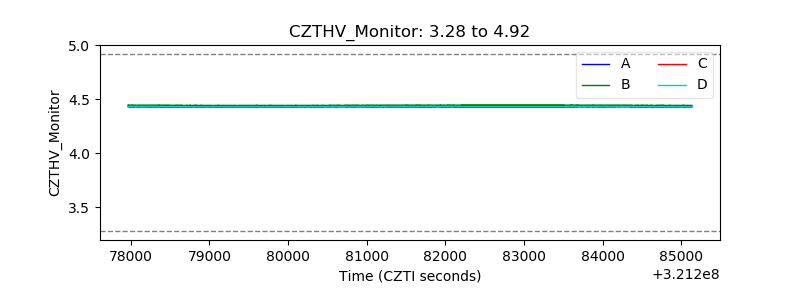

| CZT HV Monitor |  |
| D_VDD |  |

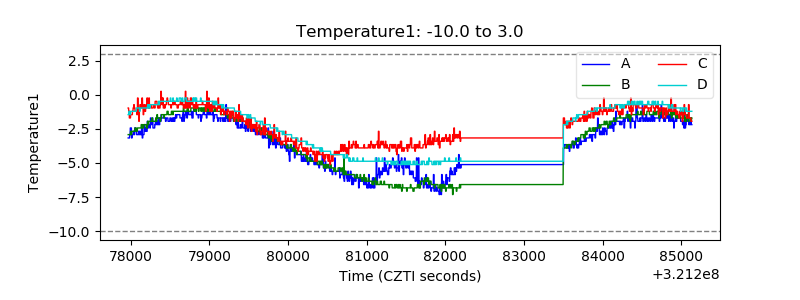

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

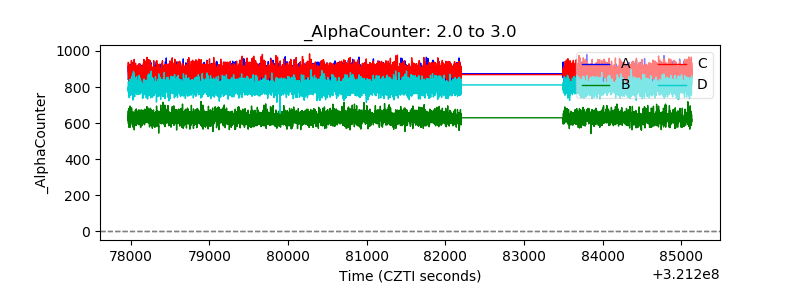

| Alpha Counter |  |

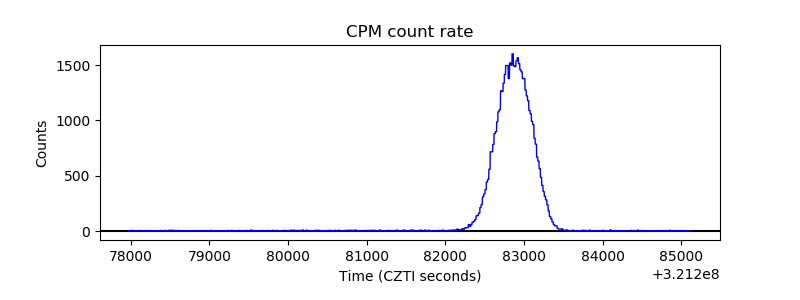

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

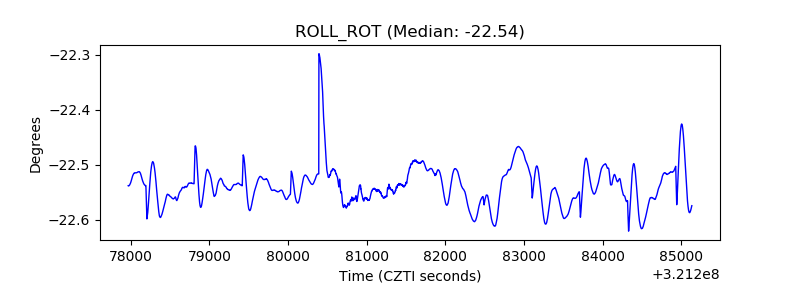

| _ROLL_ROT |  |

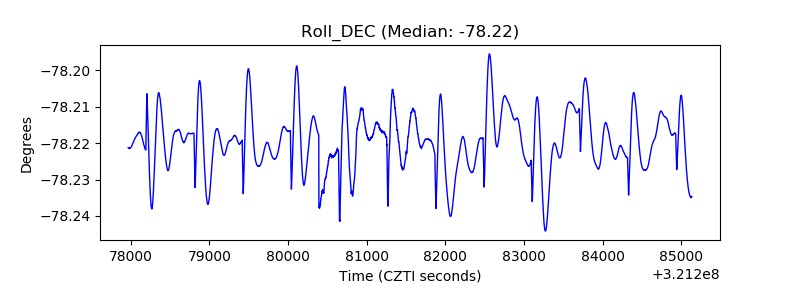

| _Roll_DEC |  |

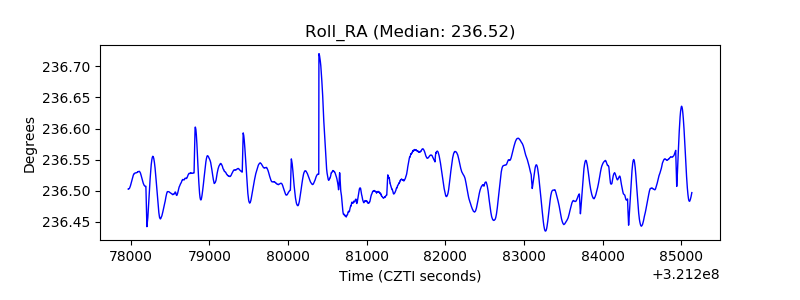

| _Roll_RA |  |

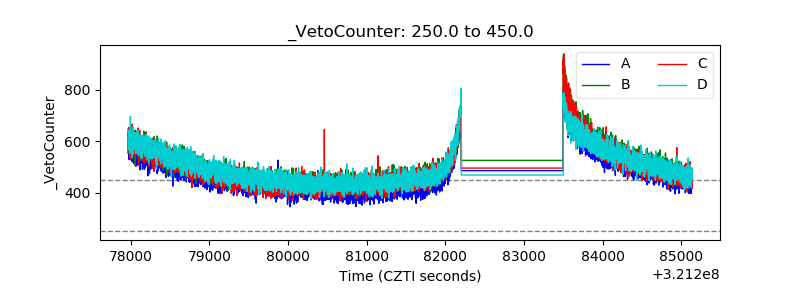

| Veto Counter |  |
