| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24015cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24015cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,599,040 | 129,588,480 |
| Size | 429.7 MB | 123.6 MB |
| Events in quadrant A | 3,578,996 | 885,727 |
| Events in quadrant B | 3,087,027 | 904,925 |
| Events in quadrant C | 3,024,554 | 859,802 |
| Events in quadrant D | 3,541,829 | 849,230 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14322 | 1 |
| B | 0 | 12789 | 1 |
| C | 0 | 12726 | 1 |
| D | 0 | 14519 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6093 | 178 | 2.921385% |
| B | 6094 | 93 | 1.526091% |
| C | 6094 | 104 | 1.706597% |
| D | 6094 | 79 | 1.296357% |

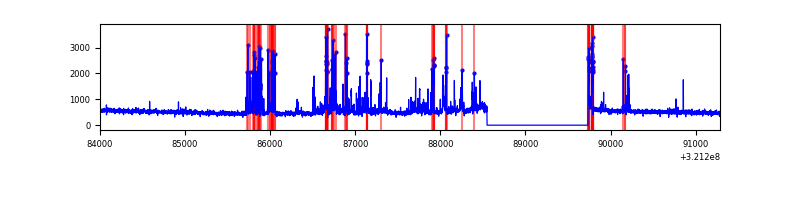

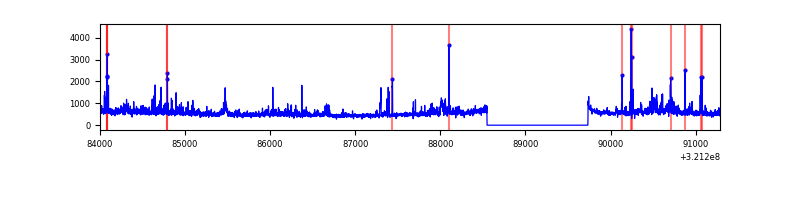

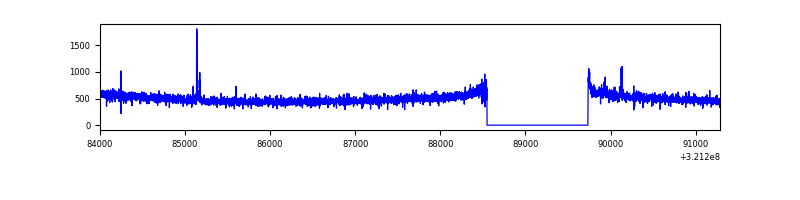

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7278 | 6094 | 95 | 95 | 1.31% | 1.56% |  |
| B | 7279 | 6095 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7279 | 6095 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7279 | 6095 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 590401 | 3861.71 | 774 | 761 | 152.7 |
| A | 13 | 254 | 9472 | 57.05 | 774 | 761 | 152.7 |
| A | 0 | 226 | 6733 | 39.11 | 774 | 761 | 152.7 |
| B | 5 | 172 | 28058 | 191.48 | 771 | 756 | 142.6 |
| B | 7 | 202 | 17272 | 115.83 | 771 | 756 | 142.6 |
| B | 12 | 111 | 16339 | 109.29 | 771 | 756 | 142.6 |
| C | 14 | 238 | 120756 | 718.64 | 736 | 741 | 167.0 |
| C | 3 | 233 | 27119 | 157.95 | 736 | 741 | 167.0 |
| C | 13 | 61 | 5157 | 26.44 | 736 | 741 | 167.0 |
| D | 8 | 195 | 401818 | 2227.52 | 751 | 731 | 180.1 |
| D | 1 | 52 | 172461 | 953.74 | 751 | 731 | 180.1 |
| D | 12 | 218 | 50694 | 277.48 | 751 | 731 | 180.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

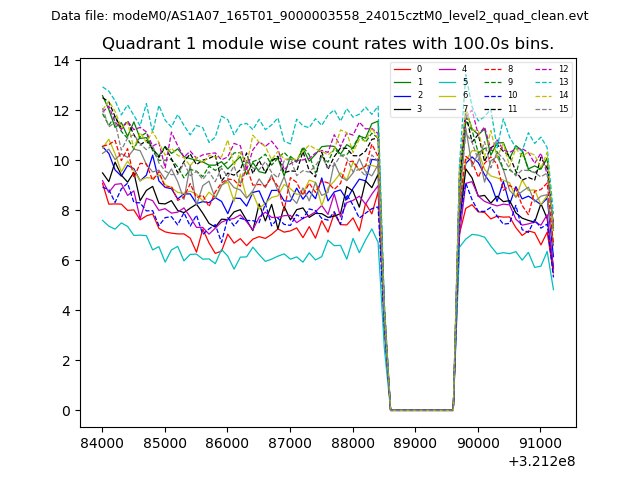

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

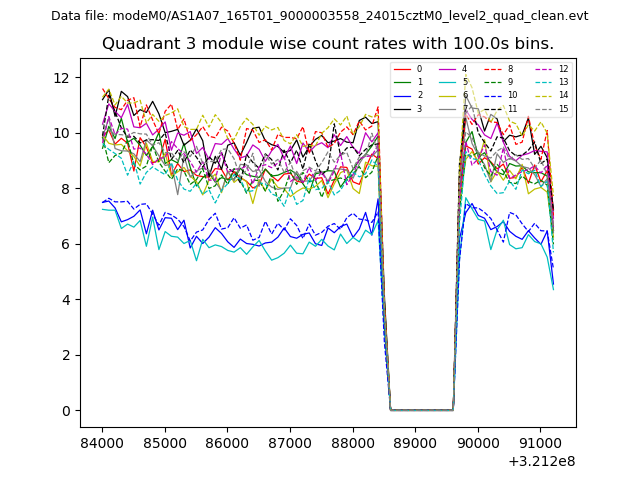

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

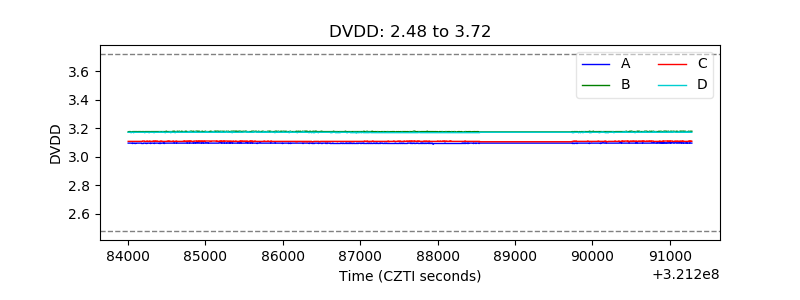

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

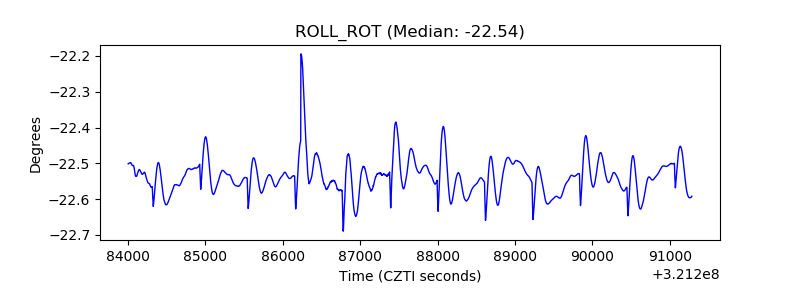

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

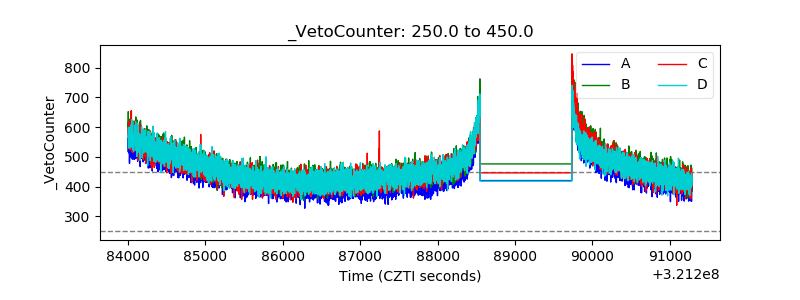

| Veto Counter |  |
