| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24022cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24022cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,264,786,560 | 333,541,440 |
| Size | 1.2 GB | 318.1 MB |
| Events in quadrant A | 8,298,816 | 2,259,878 |
| Events in quadrant B | 8,589,744 | 2,298,028 |
| Events in quadrant C | 8,426,830 | 2,197,180 |
| Events in quadrant D | 11,783,311 | 2,119,070 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36480 | 4 |
| B | 0 | 37018 | 4 |
| C | 0 | 36457 | 4 |
| D | 0 | 46876 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 362 | 0 |
| B | 0 | 362 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17834 | 103 | 0.577549% |
| B | 17834 | 128 | 0.717730% |
| C | 17835 | 206 | 1.155032% |
| D | 17835 | 708 | 3.969722% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19884 | 17837 | 5 | 5 | 0.03% | 0.03% |  |
| B | 19884 | 17837 | 10 | 10 | 0.05% | 0.06% |  |
| C | 19885 | 17838 | 7 | 7 | 0.04% | 0.04% |  |
| D | 19885 | 17837 | 454 | 454 | 2.28% | 2.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 151619 | 354.18 | 2108 | 2061 | 422.3 |
| A | 13 | 254 | 28019 | 61.47 | 2108 | 2061 | 422.3 |
| A | 3 | 137 | 18604 | 39.18 | 2108 | 2061 | 422.3 |
| B | 0 | 189 | 183882 | 460.14 | 2104 | 2048 | 395.2 |
| B | 12 | 111 | 47832 | 115.86 | 2104 | 2048 | 395.2 |
| B | 11 | 111 | 42191 | 101.58 | 2104 | 2048 | 395.2 |
| C | 14 | 238 | 323232 | 684.63 | 2026 | 2043 | 469.1 |
| C | 0 | 239 | 166622 | 350.81 | 2026 | 2043 | 469.1 |
| C | 7 | 247 | 16446 | 30.7 | 2026 | 2043 | 469.1 |
| D | 8 | 195 | 2006097 | 4117.47 | 2024 | 1966 | 486.7 |
| D | 12 | 218 | 1276903 | 2619.35 | 2024 | 1966 | 486.7 |
| D | 1 | 52 | 315748 | 644.66 | 2024 | 1966 | 486.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

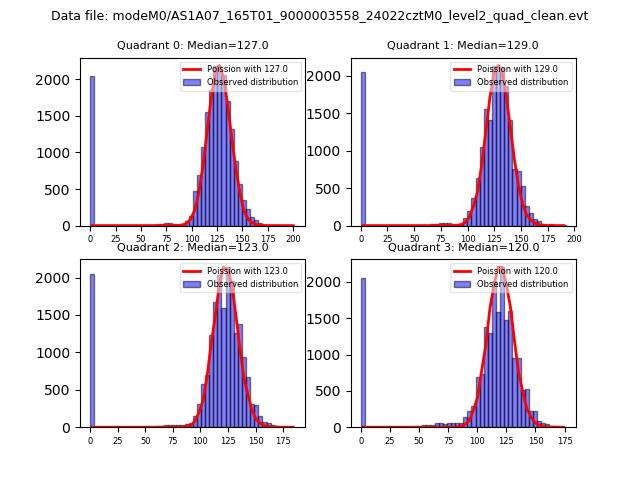

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

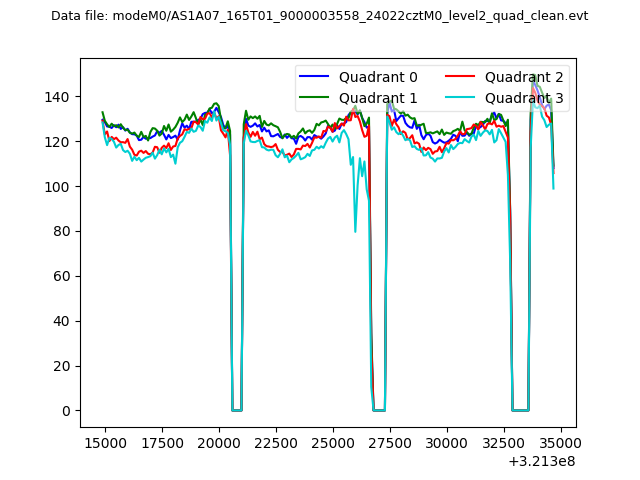

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

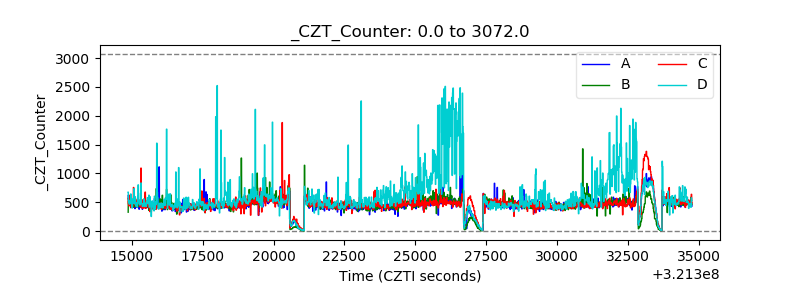

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
