| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24023cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24023cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,452,160 | 123,433,920 |
| Size | 429.6 MB | 117.7 MB |
| Events in quadrant A | 2,946,144 | 834,770 |
| Events in quadrant B | 3,023,760 | 854,857 |
| Events in quadrant C | 3,026,220 | 818,963 |
| Events in quadrant D | 4,219,104 | 791,599 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12783 | 1 |
| B | 0 | 12874 | 1 |
| C | 0 | 12930 | 2 |
| D | 0 | 16763 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6281 | 15 | 0.238815% |
| B | 6281 | 24 | 0.382105% |
| C | 6281 | 55 | 0.875657% |
| D | 6281 | 70 | 1.114472% |

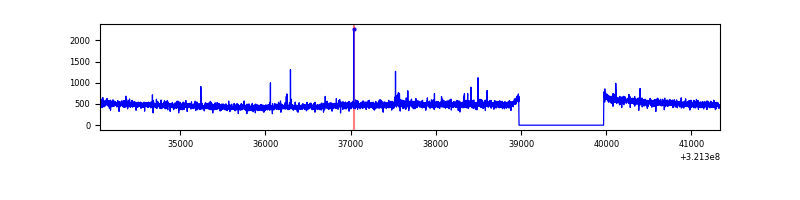

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

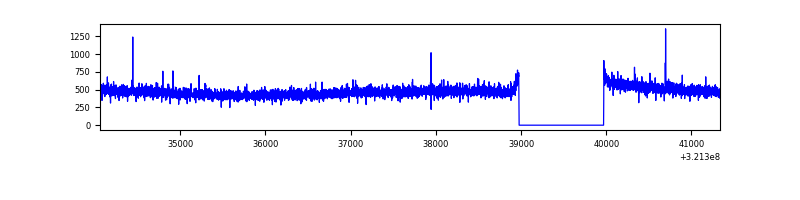

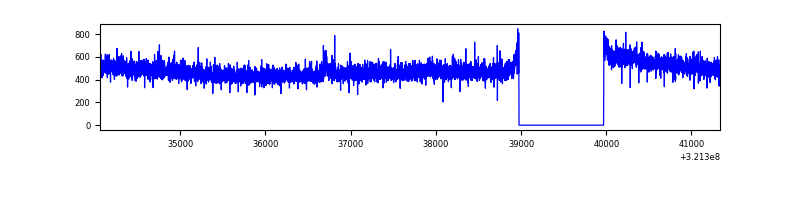

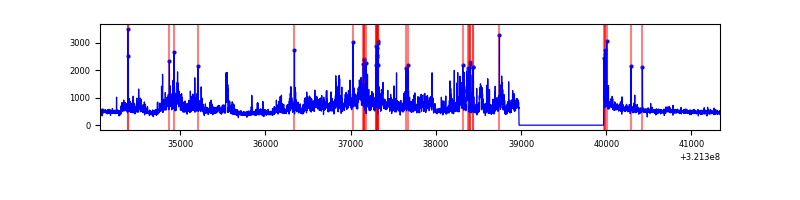

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7276 | 6282 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7276 | 6282 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7276 | 6282 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7276 | 6282 | 37 | 37 | 0.51% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 11040 | 67.13 | 761 | 743 | 153.4 |
| A | 13 | 254 | 9390 | 56.37 | 761 | 743 | 153.4 |
| A | 3 | 137 | 6441 | 37.15 | 761 | 743 | 153.4 |
| B | 0 | 189 | 21605 | 144.87 | 762 | 744 | 144.0 |
| B | 12 | 111 | 17028 | 113.09 | 762 | 744 | 144.0 |
| B | 11 | 111 | 15307 | 101.13 | 762 | 744 | 144.0 |
| C | 14 | 238 | 117737 | 675.48 | 742 | 746 | 173.2 |
| C | 7 | 247 | 18198 | 100.76 | 742 | 746 | 173.2 |
| C | 13 | 61 | 5187 | 25.64 | 742 | 746 | 173.2 |
| D | 8 | 195 | 745167 | 4138.73 | 746 | 725 | 179.9 |
| D | 12 | 218 | 468676 | 2601.58 | 746 | 725 | 179.9 |
| D | 1 | 52 | 35467 | 193.15 | 746 | 725 | 179.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

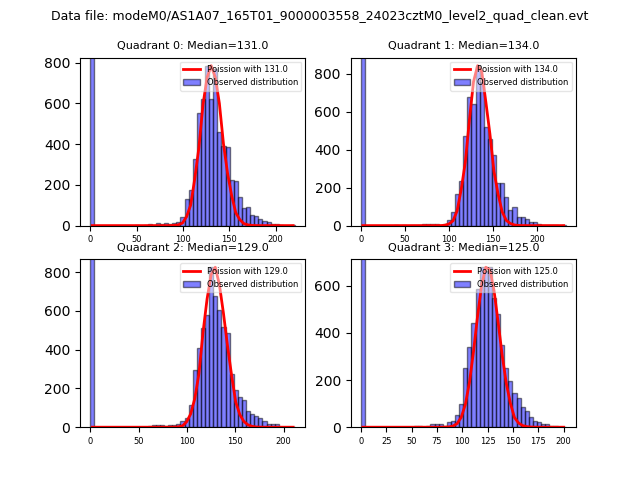

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

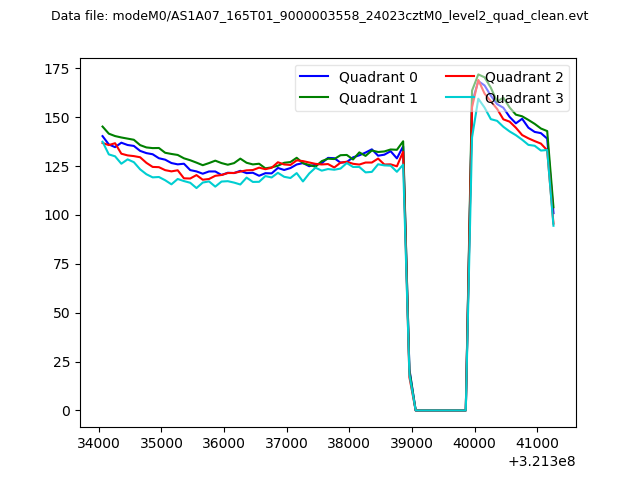

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

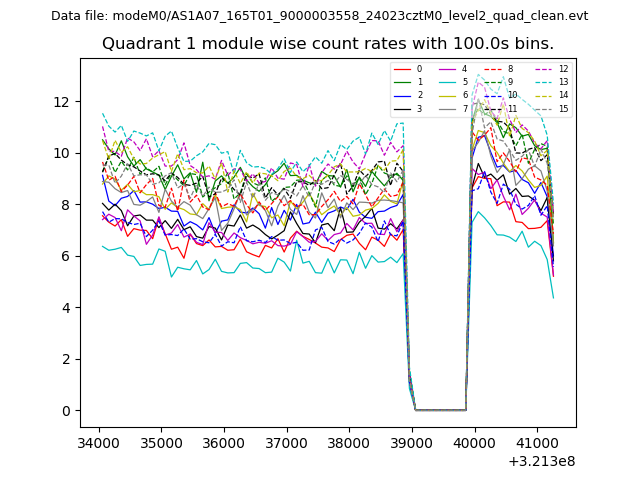

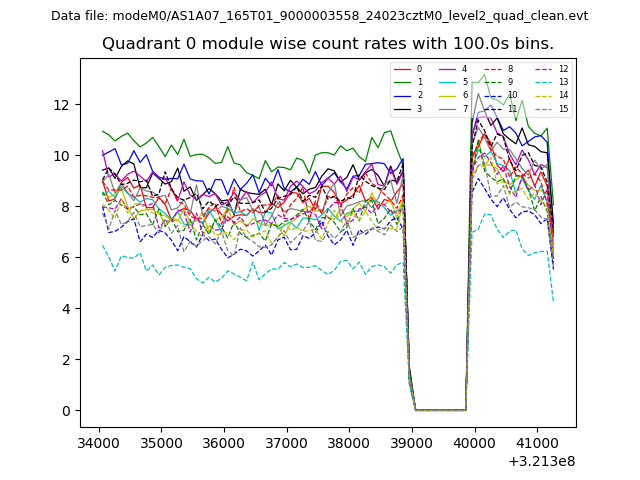

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

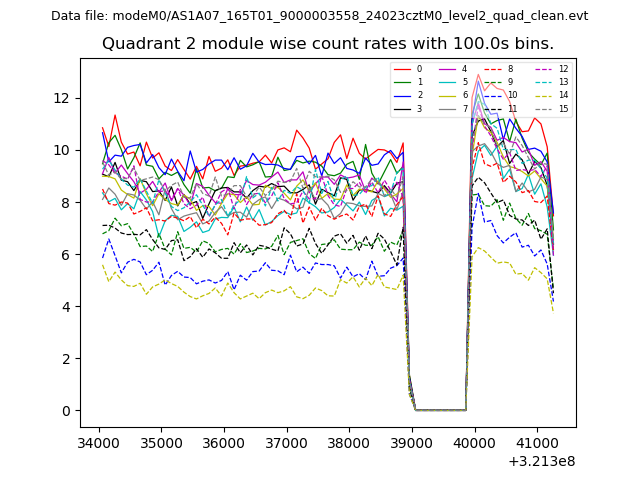

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

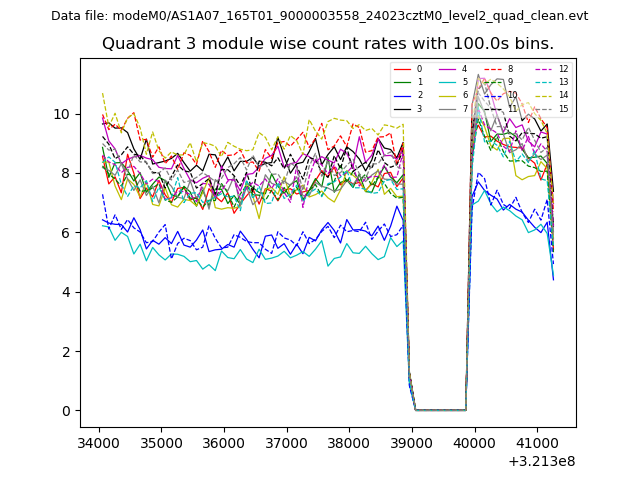

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

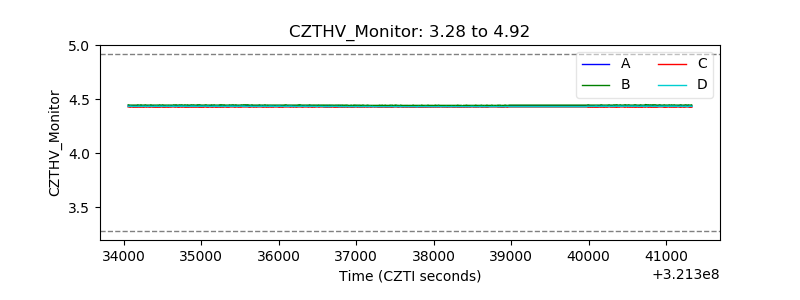

| CZT HV Monitor |  |
| D_VDD |  |

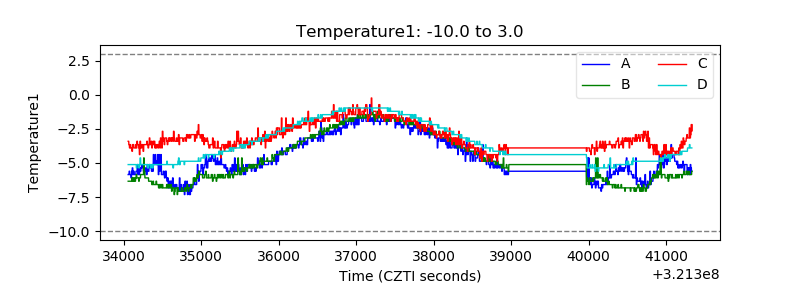

| Temperature 1 |  |

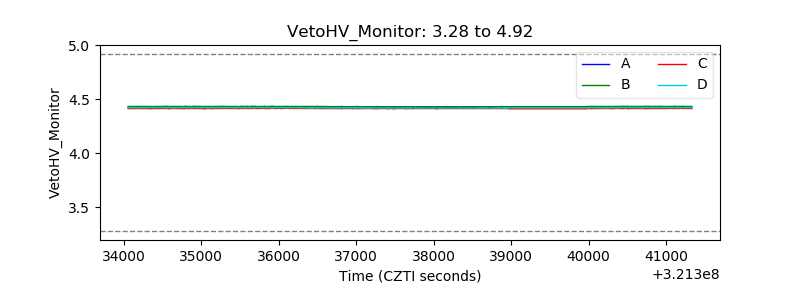

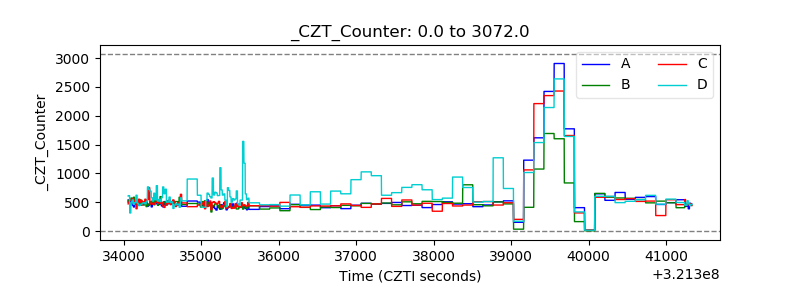

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

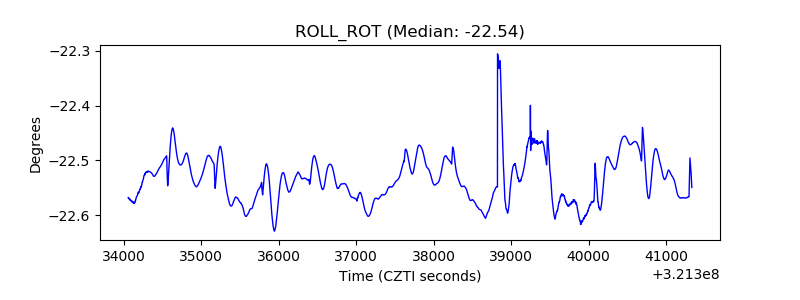

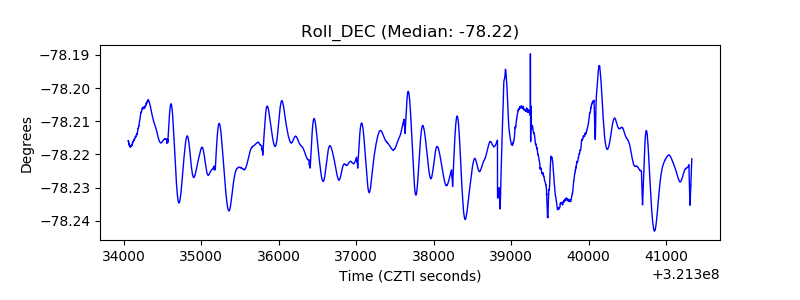

| _ROLL_ROT |  |
| _Roll_DEC |  |

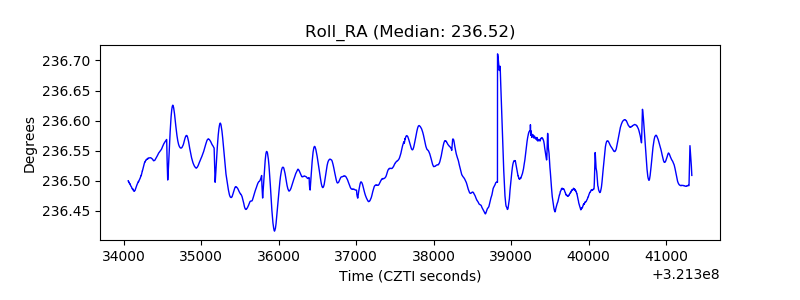

| _Roll_RA |  |

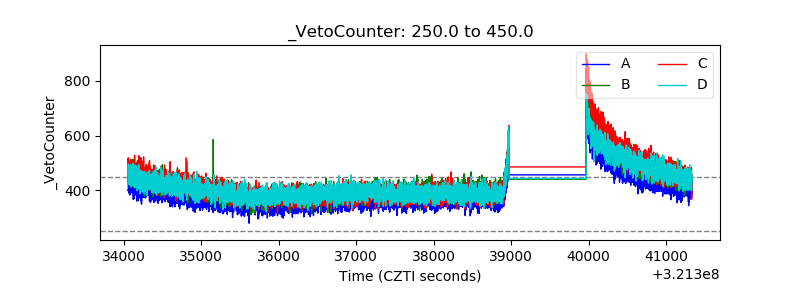

| Veto Counter |  |
