| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24040cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24040cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,606,080 | 140,290,560 |
| Size | 487.9 MB | 133.8 MB |
| Events in quadrant A | 3,300,952 | 964,319 |
| Events in quadrant B | 3,783,152 | 974,679 |
| Events in quadrant C | 3,413,985 | 945,358 |
| Events in quadrant D | 4,555,862 | 912,304 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13853 | 3 |
| B | 0 | 15298 | 2 |
| C | 0 | 14220 | 2 |
| D | 0 | 17902 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6487 | 48 | 0.739941% |
| B | 6487 | 170 | 2.620626% |
| C | 6487 | 99 | 1.526129% |
| D | 6487 | 218 | 3.360567% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

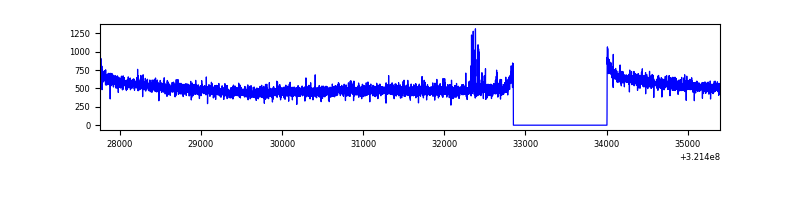

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6488 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7642 | 6488 | 79 | 79 | 1.03% | 1.22% |  |
| C | 7642 | 6488 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7642 | 6488 | 168 | 168 | 2.20% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 34942 | 202.78 | 847 | 830 | 168.2 |
| A | 13 | 254 | 10599 | 58.07 | 847 | 830 | 168.2 |
| A | 0 | 226 | 7373 | 38.9 | 847 | 830 | 168.2 |
| B | 0 | 197 | 413239 | 2670.46 | 838 | 820 | 154.4 |
| B | 7 | 202 | 63349 | 404.88 | 838 | 820 | 154.4 |
| B | 12 | 111 | 17757 | 109.67 | 838 | 820 | 154.4 |
| C | 14 | 238 | 131858 | 688.96 | 826 | 831 | 190.2 |
| C | 7 | 247 | 58042 | 300.82 | 826 | 831 | 190.2 |
| C | 13 | 61 | 5610 | 25.13 | 826 | 831 | 190.2 |
| D | 2 | 82 | 544591 | 2699.31 | 831 | 808 | 201.5 |
| D | 8 | 195 | 512739 | 2541.2 | 831 | 808 | 201.5 |
| D | 12 | 218 | 178176 | 880.44 | 831 | 808 | 201.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

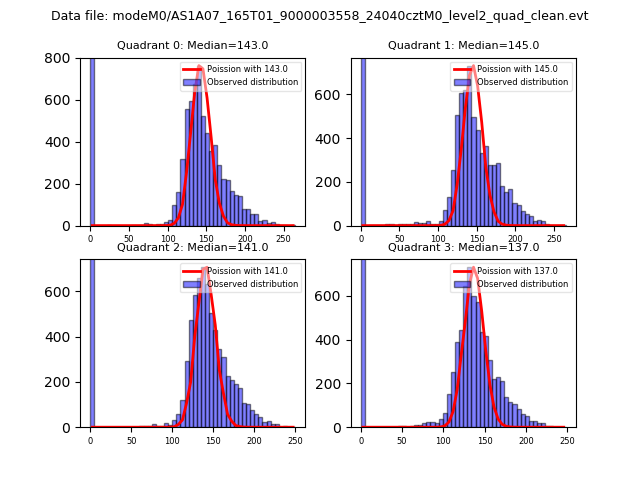

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

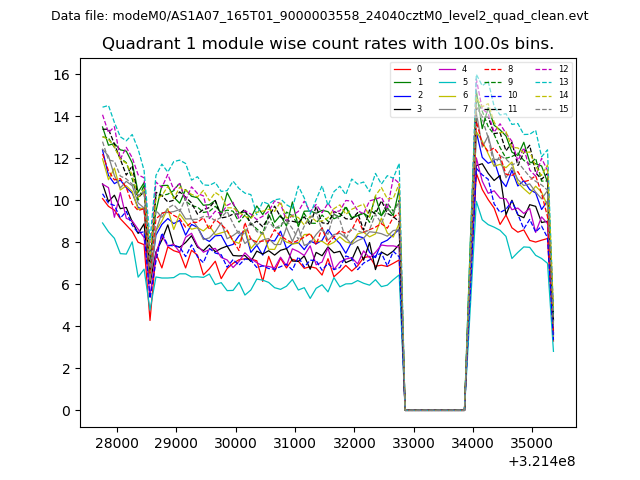

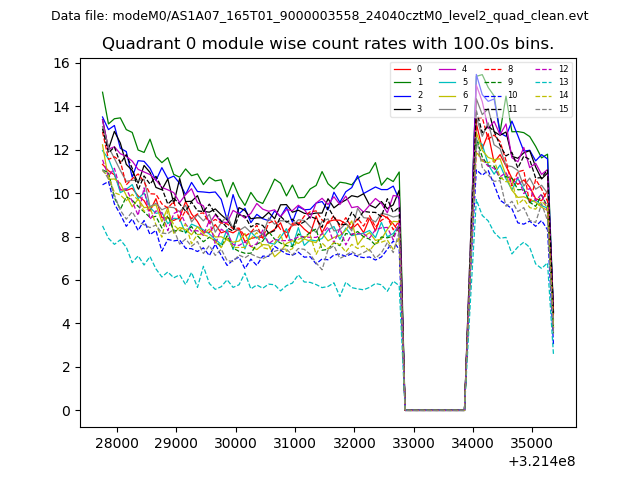

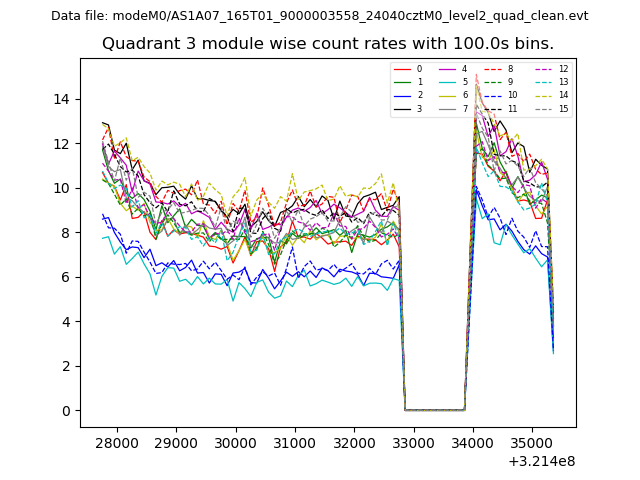

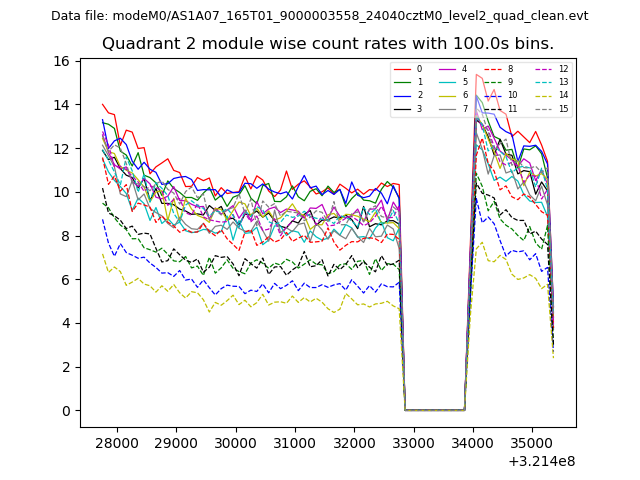

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

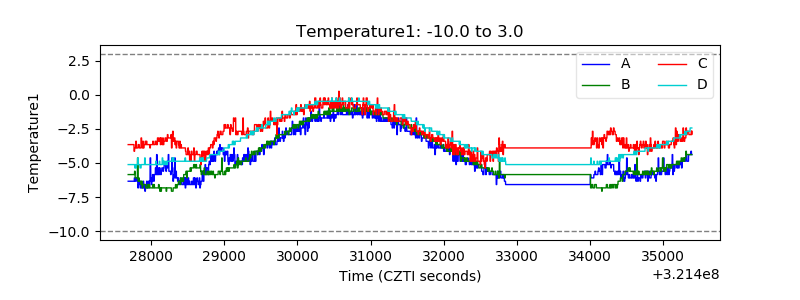

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

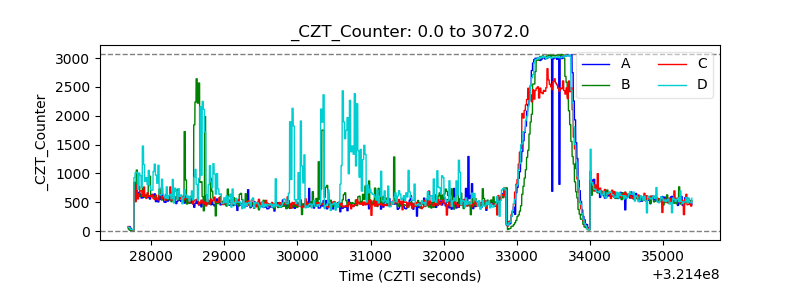

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
