| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24042cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24042cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,757,760 | 152,645,760 |
| Size | 493.8 MB | 145.6 MB |
| Events in quadrant A | 3,497,724 | 1,061,962 |
| Events in quadrant B | 3,756,246 | 1,075,151 |
| Events in quadrant C | 3,845,324 | 1,023,278 |
| Events in quadrant D | 4,137,411 | 1,007,010 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14467 | 2 |
| B | 0 | 15622 | 2 |
| C | 0 | 15825 | 2 |
| D | 0 | 16593 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6539 | 43 | 0.657593% |
| B | 6540 | 60 | 0.917431% |
| C | 6540 | 116 | 1.773700% |
| D | 6539 | 105 | 1.605750% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7864 | 6540 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7865 | 6541 | 9 | 9 | 0.11% | 0.14% |  |
| C | 7865 | 6541 | 14 | 14 | 0.18% | 0.21% |  |
| D | 7864 | 6540 | 35 | 35 | 0.45% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11482 | 59.7 | 903 | 888 | 177.5 |
| A | 2 | 250 | 10251 | 52.76 | 903 | 888 | 177.5 |
| A | 0 | 226 | 7958 | 39.84 | 903 | 888 | 177.5 |
| B | 0 | 197 | 196533 | 1222.78 | 889 | 874 | 160.0 |
| B | 5 | 172 | 65289 | 402.56 | 889 | 874 | 160.0 |
| B | 0 | 190 | 18422 | 109.67 | 889 | 874 | 160.0 |
| C | 7 | 247 | 234496 | 1204.87 | 859 | 866 | 193.9 |
| C | 14 | 238 | 140781 | 721.57 | 859 | 866 | 193.9 |
| C | 3 | 233 | 64893 | 330.2 | 859 | 866 | 193.9 |
| D | 8 | 195 | 571239 | 2715.03 | 880 | 857 | 210.1 |
| D | 13 | 104 | 159878 | 756.94 | 880 | 857 | 210.1 |
| D | 2 | 234 | 28775 | 132.89 | 880 | 857 | 210.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

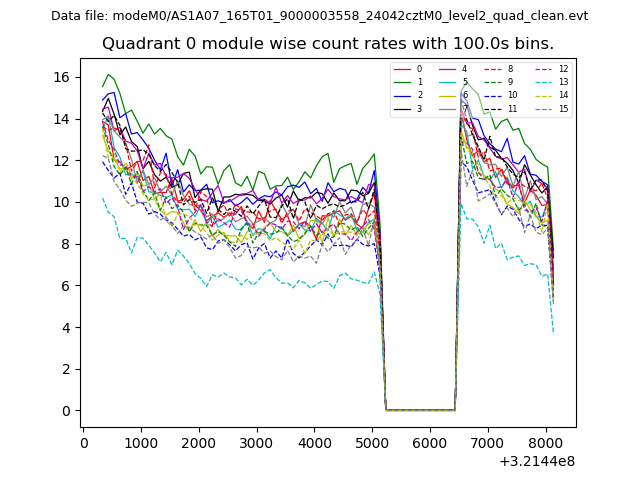

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

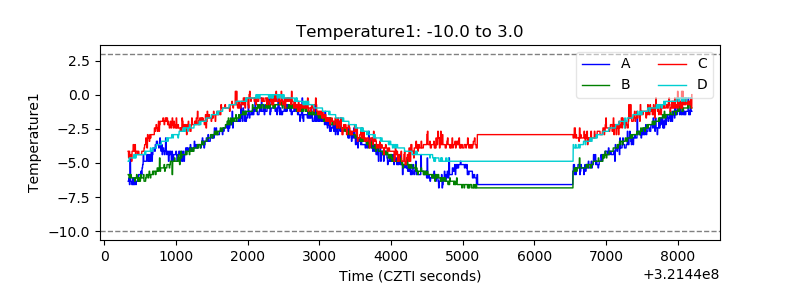

| Temperature 1 |  |

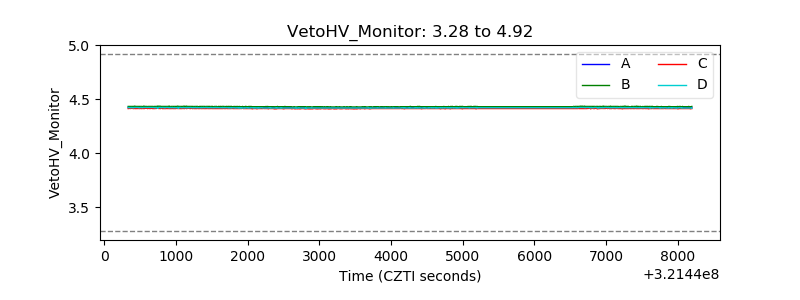

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

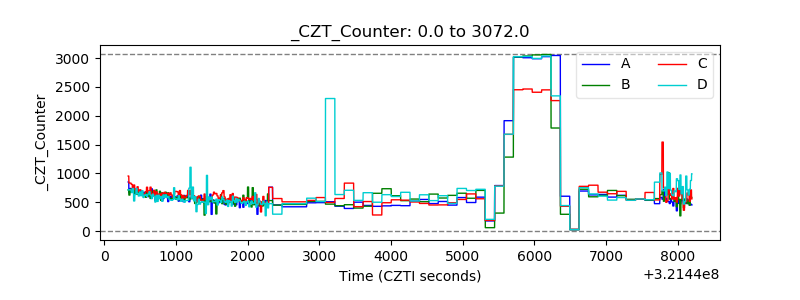

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

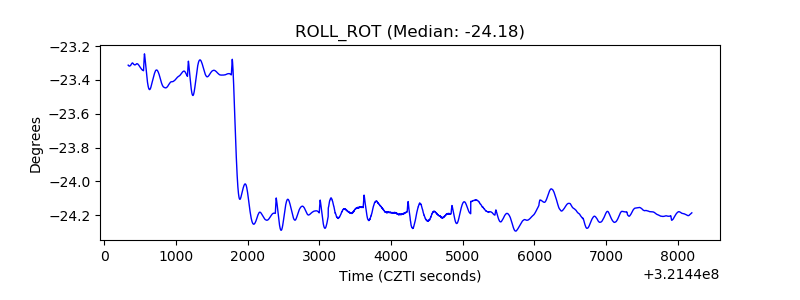

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
