| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24043cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24043cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,397,440 | 133,251,840 |
| Size | 481.0 MB | 127.1 MB |
| Events in quadrant A | 3,068,521 | 927,046 |
| Events in quadrant B | 3,301,379 | 935,733 |
| Events in quadrant C | 3,426,958 | 891,402 |
| Events in quadrant D | 5,073,528 | 864,233 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12649 | 1 |
| B | 0 | 13634 | 2 |
| C | 0 | 13948 | 1 |
| D | 0 | 19170 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5980 | 48 | 0.802676% |
| B | 5980 | 45 | 0.752508% |
| C | 5980 | 105 | 1.755853% |
| D | 5980 | 154 | 2.575251% |

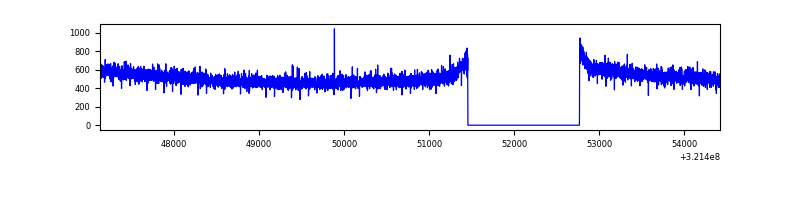

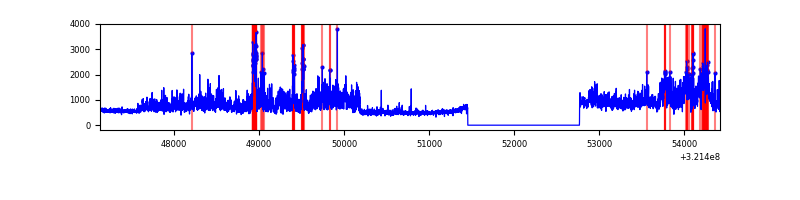

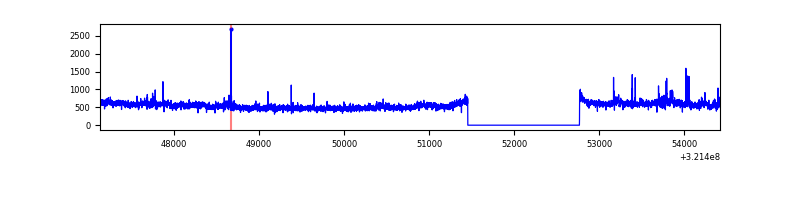

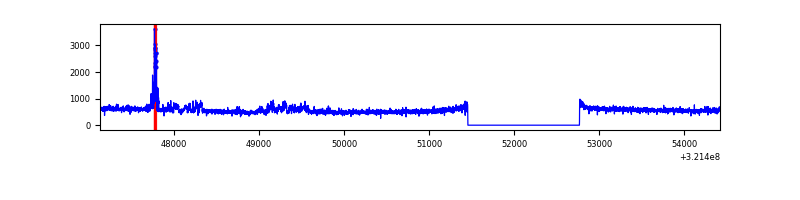

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7295 | 5981 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7295 | 5981 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7295 | 5981 | 14 | 14 | 0.19% | 0.23% |  |
| D | 7295 | 5981 | 112 | 112 | 1.54% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10403 | 61.19 | 794 | 782 | 157.2 |
| A | 0 | 226 | 7033 | 39.76 | 794 | 782 | 157.2 |
| A | 3 | 137 | 6182 | 34.34 | 794 | 782 | 157.2 |
| B | 0 | 197 | 159356 | 1112.62 | 781 | 766 | 142.5 |
| B | 0 | 189 | 31170 | 213.3 | 781 | 766 | 142.5 |
| B | 0 | 190 | 27282 | 186.03 | 781 | 766 | 142.5 |
| C | 7 | 247 | 165463 | 967.28 | 749 | 754 | 170.3 |
| C | 14 | 238 | 122623 | 715.7 | 749 | 754 | 170.3 |
| C | 0 | 239 | 81251 | 472.73 | 749 | 754 | 170.3 |
| D | 8 | 195 | 1501156 | 8225.82 | 766 | 747 | 182.4 |
| D | 1 | 52 | 534015 | 2923.58 | 766 | 747 | 182.4 |
| D | 12 | 218 | 39965 | 215.01 | 766 | 747 | 182.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

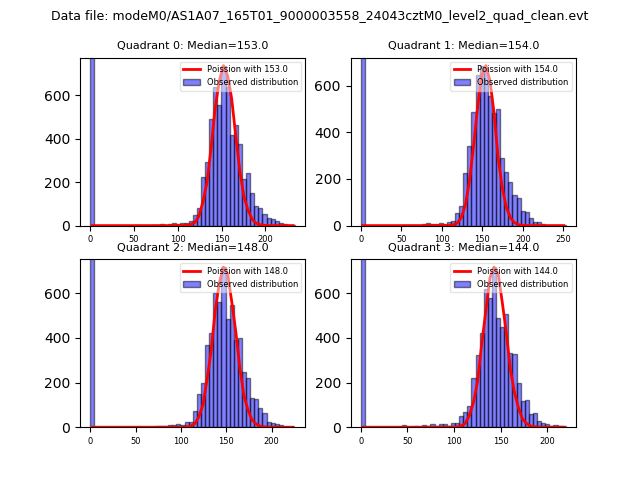

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

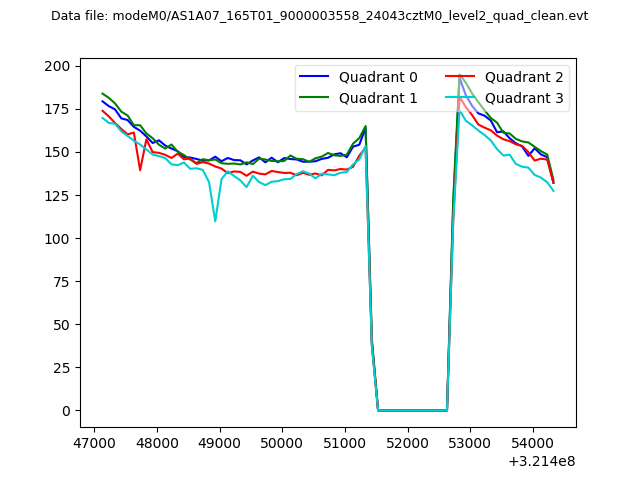

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

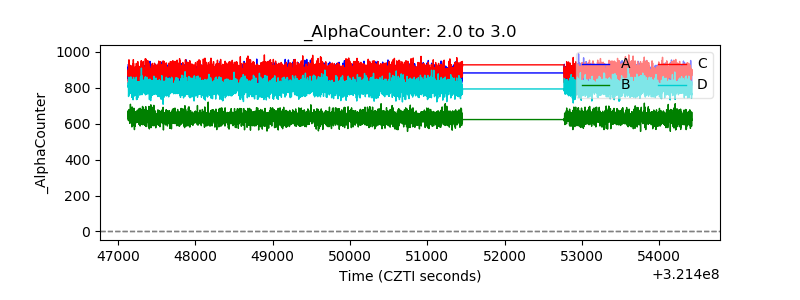

| Alpha Counter |  |

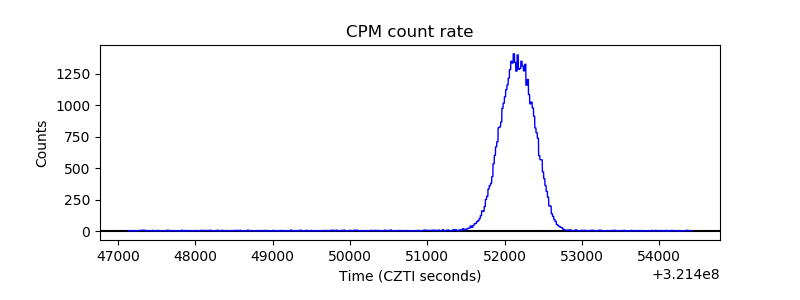

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
