| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24045cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24045cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,550,080 | 121,875,840 |
| Size | 541.3 MB | 116.2 MB |
| Events in quadrant A | 2,941,148 | 841,394 |
| Events in quadrant B | 3,155,276 | 851,477 |
| Events in quadrant C | 3,252,525 | 814,104 |
| Events in quadrant D | 7,420,345 | 752,058 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12679 | 1 |
| B | 0 | 13003 | 2 |
| C | 0 | 13325 | 1 |
| D | 0 | 26342 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6180 | 93 | 1.504854% |
| B | 6180 | 108 | 1.747573% |
| C | 6180 | 101 | 1.634304% |
| D | 6180 | 849 | 13.737864% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

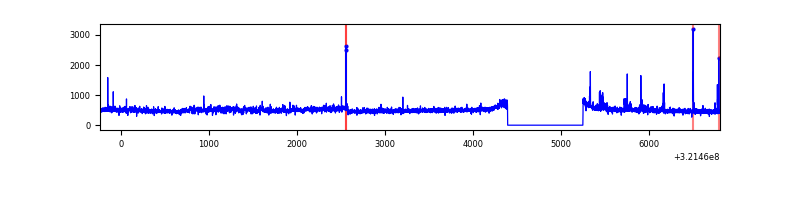

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7035 | 6181 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7035 | 6181 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7035 | 6181 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7035 | 6181 | 763 | 763 | 10.85% | 12.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 25585 | 164.52 | 753 | 738 | 151.0 |
| A | 13 | 254 | 9774 | 59.83 | 753 | 738 | 151.0 |
| A | 6 | 16 | 7670 | 45.9 | 753 | 738 | 151.0 |
| B | 0 | 197 | 128011 | 913.04 | 749 | 732 | 139.4 |
| B | 14 | 207 | 28430 | 198.69 | 749 | 732 | 139.4 |
| B | 4 | 52 | 18143 | 124.9 | 749 | 732 | 139.4 |
| C | 7 | 247 | 282927 | 1708.46 | 718 | 722 | 165.2 |
| C | 14 | 238 | 114961 | 691.6 | 718 | 722 | 165.2 |
| C | 10 | 9 | 54089 | 323.08 | 718 | 722 | 165.2 |
| D | 12 | 218 | 1789348 | 10585.0 | 705 | 684 | 169.0 |
| D | 8 | 195 | 1570842 | 9291.92 | 705 | 684 | 169.0 |
| D | 1 | 52 | 1344242 | 7950.94 | 705 | 684 | 169.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

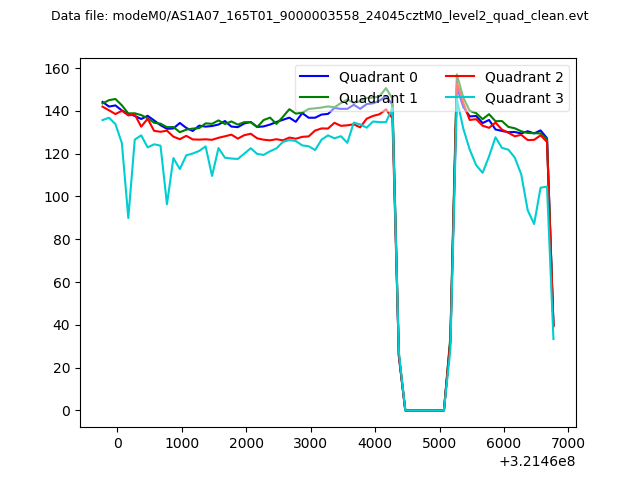

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

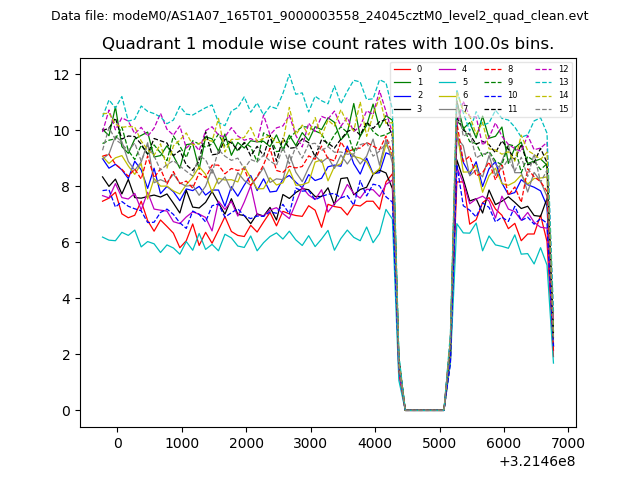

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

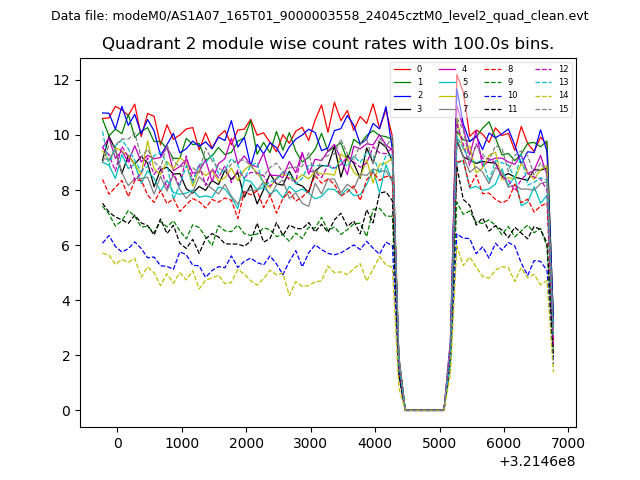

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

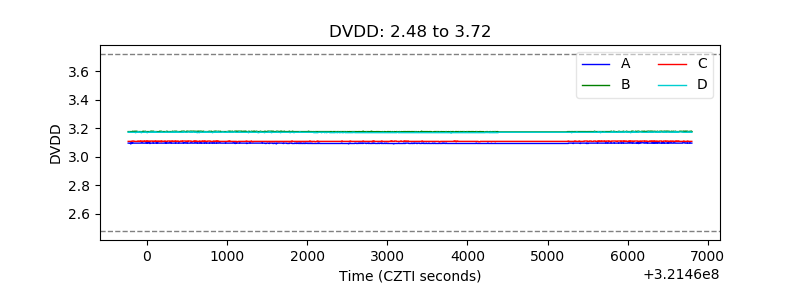

| D_VDD |  |

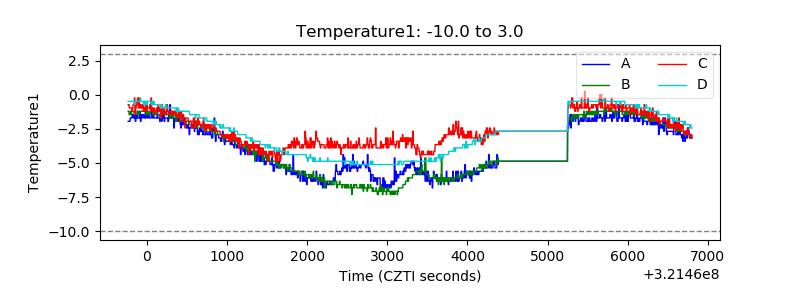

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

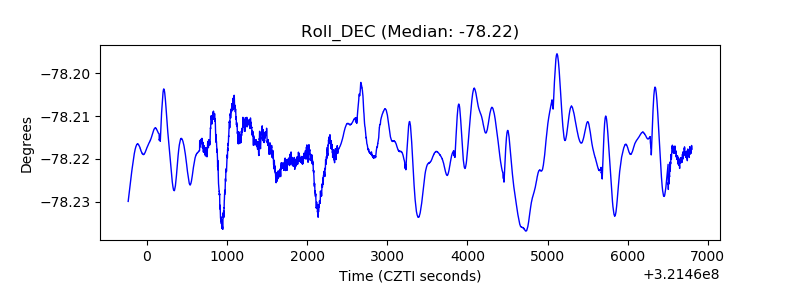

| _Roll_DEC |  |

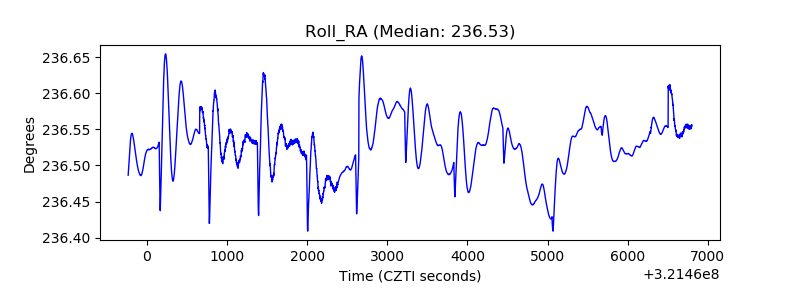

| _Roll_RA |  |
| Veto Counter |  |
